Introduction to the Drone Linkage Auxiliary Installation Tool Handle

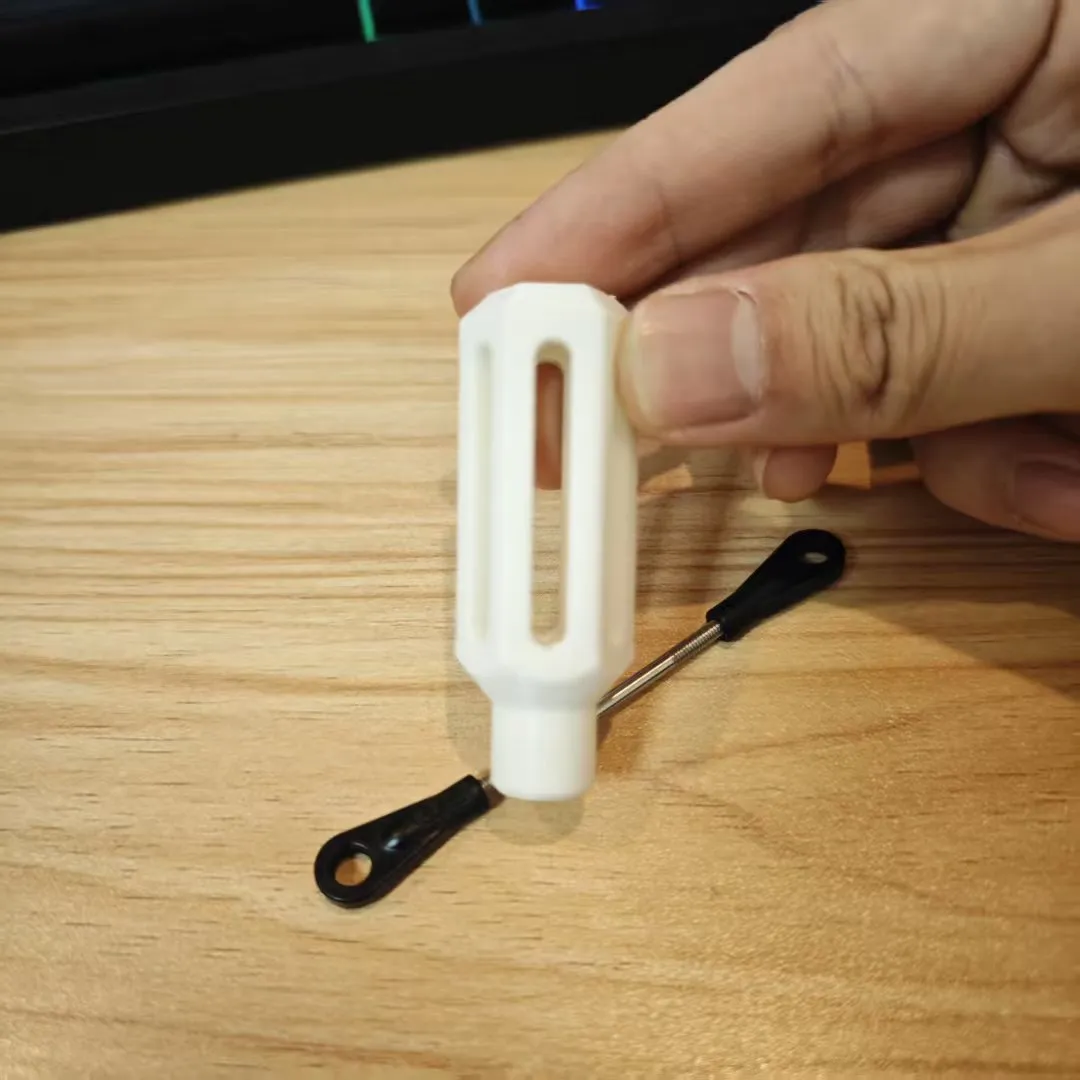

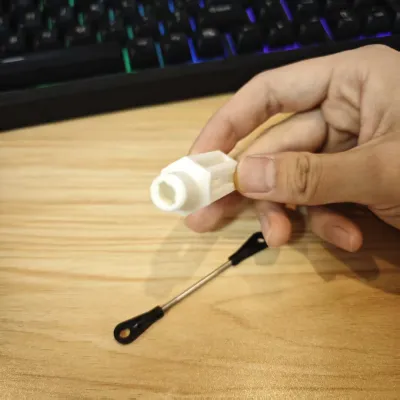

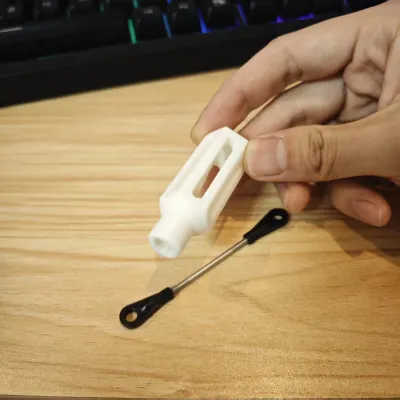

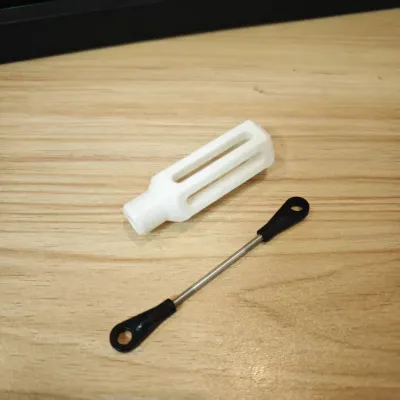

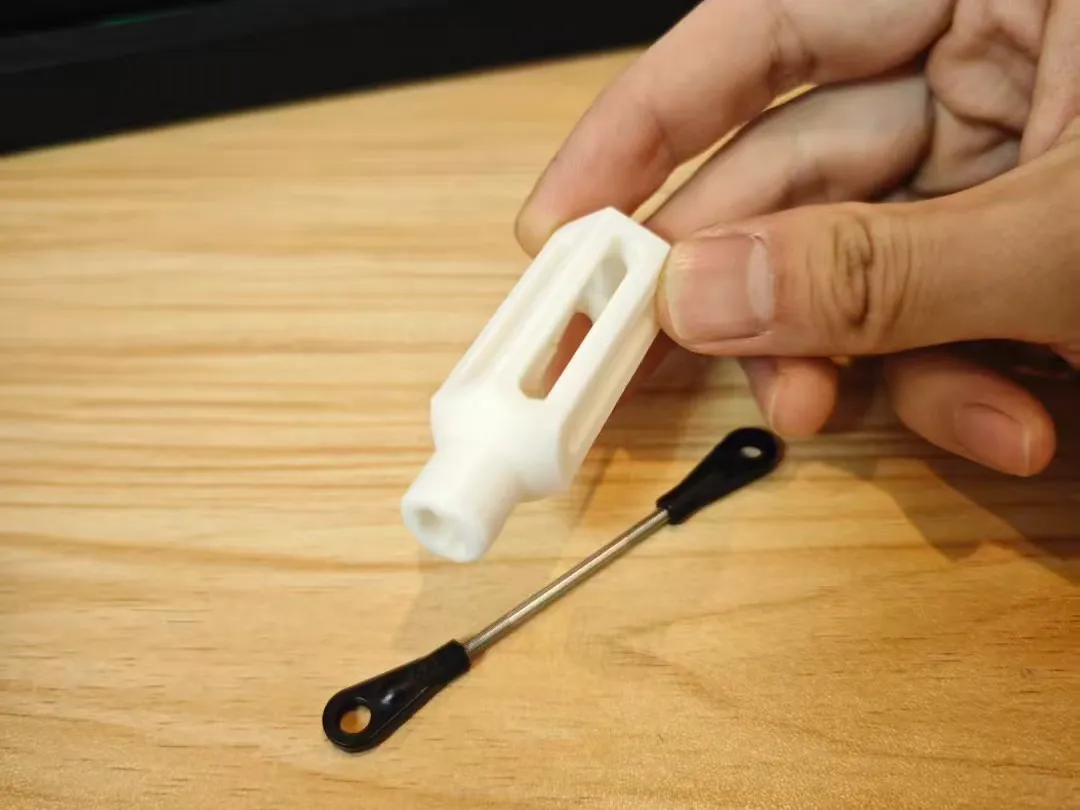

This white 3D‑printed handle is a specialized auxiliary installation tool designed for drone ball linkages. Its core function is to make disassembly, assembly, and adjustment of linkages easier and safer, while protecting delicate components from damage.

✨ Core Features

1. Effortless Disassembly and Assembly

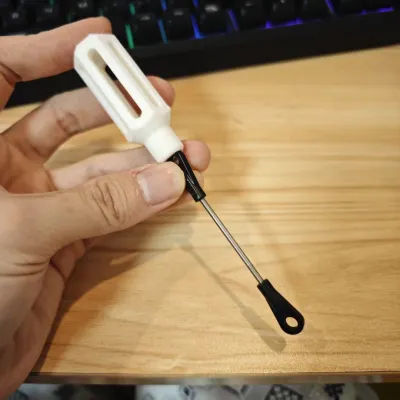

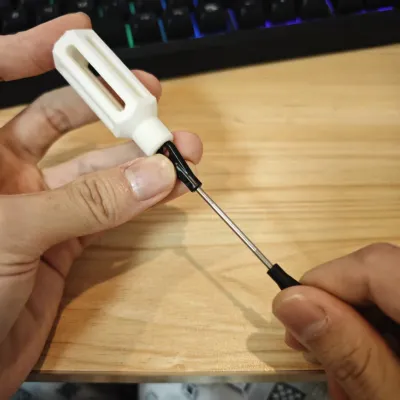

   • The ball joints at both ends of the linkage (Ball Links) are often extremely tight—attempting to loosen them by hand or with pliers can easily lead to slippage or damage to the components. This handle slips over the metal screw of the linkage, providing a secure grip that allows you to turn the screws with ease, significantly reducing operational difficulty.

   • The hollow, elongated slot design perfectly accommodates the linkage’s metal rod, preventing twisting or bending during tightening or loosening.

2. Component Protection

   • Unlike using pliers or wrenches, this dedicated handle won’t scratch the metal threads or plastic ball joints of the linkage, effectively preserving the integrity of these precision components.

   • The evenly distributed force ensures that improper torque application doesn’t cause linkage deformation or ball joint cracking.

3. Precise Adjustment

   • When fine‑tuning servo travel, pitch, or linkage length, the handle provides a stable grip, enabling you to make micro‑adjustments to linkage length with greater precision and ensure the accuracy of the mechanical assembly.

   • The handle’s ergonomic design minimizes fatigue, even during prolonged use.

🎨 Design & Materials

• Precision Fit: Custom‑made to match the standard diameter of linkage metal screws, ensuring a snug fit that eliminates play or slippage between the handle and screw.

• Lightweight and Durable: Crafted from 3D‑printing materials such as PLA or PETG, this handle is lightweight yet highly robust, capable of withstanding substantial tightening torque without breaking.

• Optimized Structure:

  • Hollow, elongated slot: Accommodates the linkage’s metal rod while providing guidance and protection.

  • Ergonomic shape: Offers a comfortable grip and efficient force application.

  • Bottom sleeve: Slips precisely over the linkage screw, ensuring even force distribution across the entire connection.

📦 Application Scenarios

• New Aircraft Assembly: Quickly and safely install all linkages during the assembly of drones or helicopters.

• Maintenance and Overhaul: Easily disassemble and re‑install linkages when replacing servos, linkages, or swashplates.

• Parameter Tuning: Precisely adjust linkage lengths when fine‑tuning pitch, servo travel, or mechanical mixing controls.
