ThreadCheck Fit Box｜Thread Calibration Tool Kit

The ThreadCheck Fit Box is a thread‑fit testing and calibration tool kit specifically designed for FDM 3D printing. It allows you to quickly determine the optimal dimensional compensation and tightness for threaded components, based on your current printer, filament, and slicing settings.

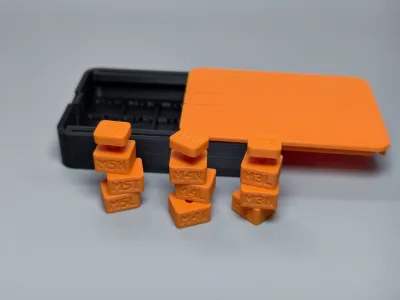

The kit includes multiple sets of independent threaded test parts. By physically screwing them in and out and assessing the feel of the fit, you can visually compare the differences between various compensation settings, helping you identify thread parameters that ensure smooth assembly without excessive looseness.

3D‑printed threads are highly sensitive to factors such as nozzle size, material shrinkage, extrusion flow, layer height, temperature, and machine precision. Even identical CAD dimensions can result in issues like threads being too tight to insert, or excessively loose with noticeable play, when printed on different machines. With this testing kit, you can perform rapid validation before committing to full‑scale functional part designs, minimizing repeated model revisions and filament waste.

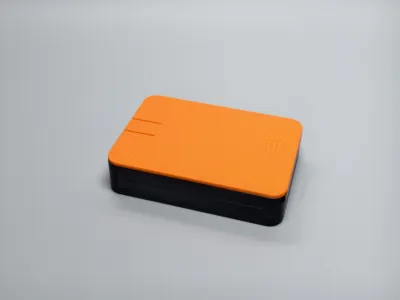

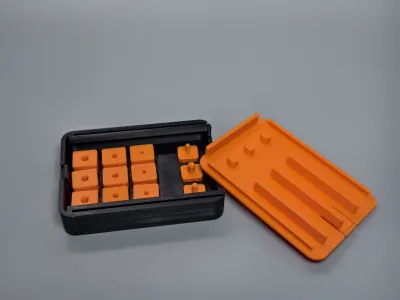

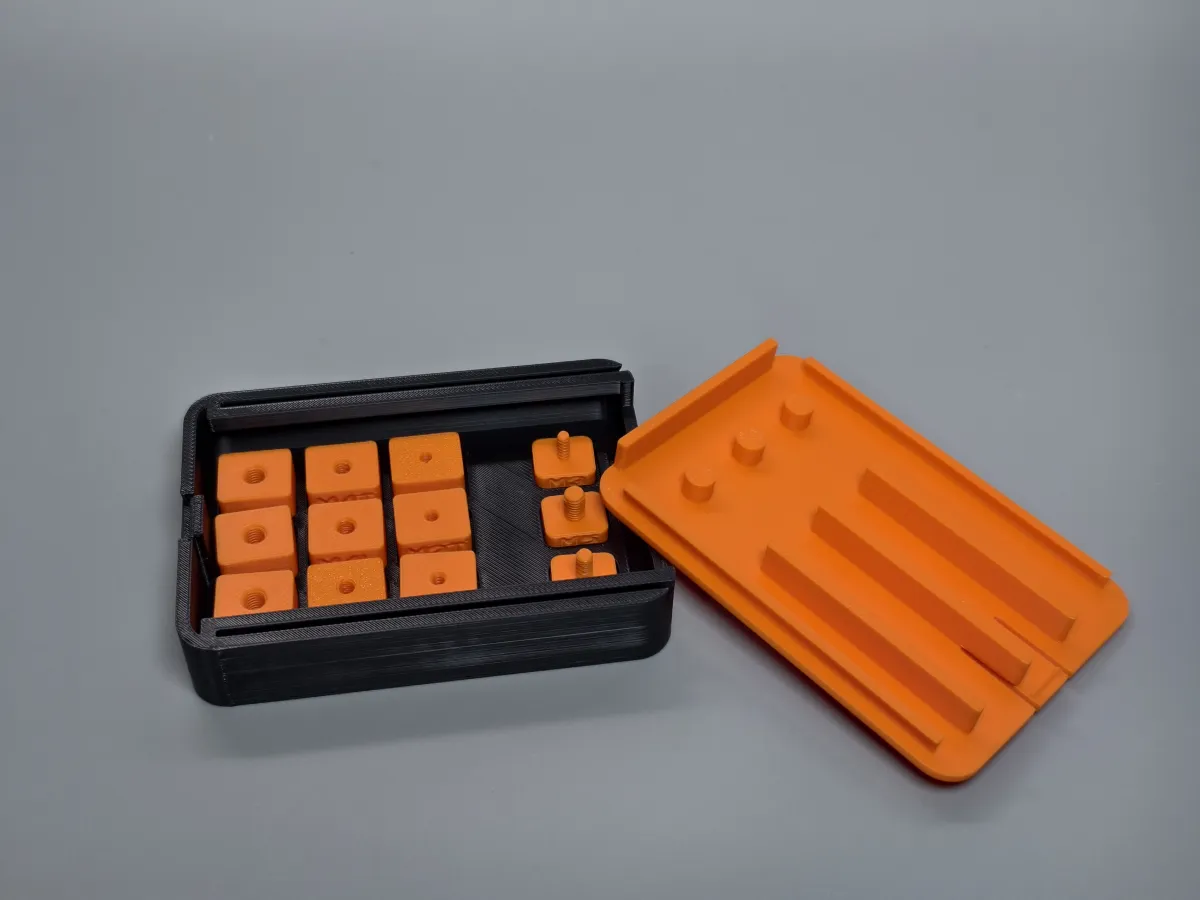

All test pieces are neatly stored in a dedicated tool box; after use, they can be returned directly to their designated slots for convenient long‑term storage. When you later switch printers, filaments, nozzles, or slicing parameters, you can retest and rebuild your own thread reference data.

The design features a black tool box paired with orange test parts, creating a clear visual distinction between different functional components. This not only enhances usability but also conveys a well‑rounded, professional tool‑product aesthetic.

Applicable Scenarios

• FDM thread tolerance testing
• In‑and‑out thread fit verification
• Thread dimension compensation validation
• Pre‑design parameter calibration for functional parts
• New filament printing tests
• New printer precision checks
• PLA/PETG thread compatibility assessments
• Design of knobs, nuts, and threaded caps
• Development of mechanical assembly models
• Debugging of 3D‑printed structural components

For users who frequently produce threaded connections, knobs, detachable housings, mechanical assemblies, and functional prototypes, this is an extremely practical foundational calibration tool. It significantly reduces trial-and-error iterations and boosts the first‑print success rate of subsequent threaded models.
