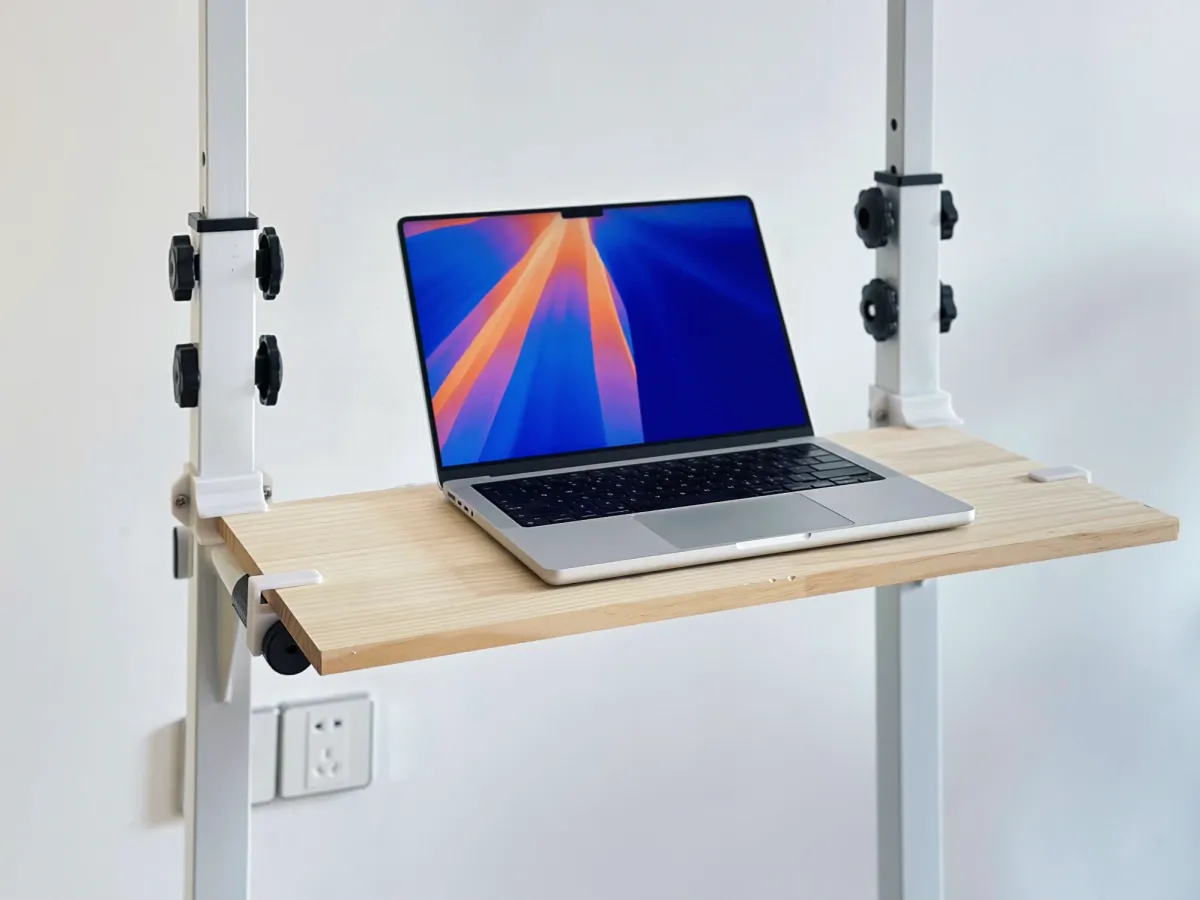

By attaching a small tabletop to the hand‑hold bracket of a pull-up stand, you can easily create a standing‑desk workspace.

The tabletop is also easy to remove, so it doesn’t interfere with your regular workouts.

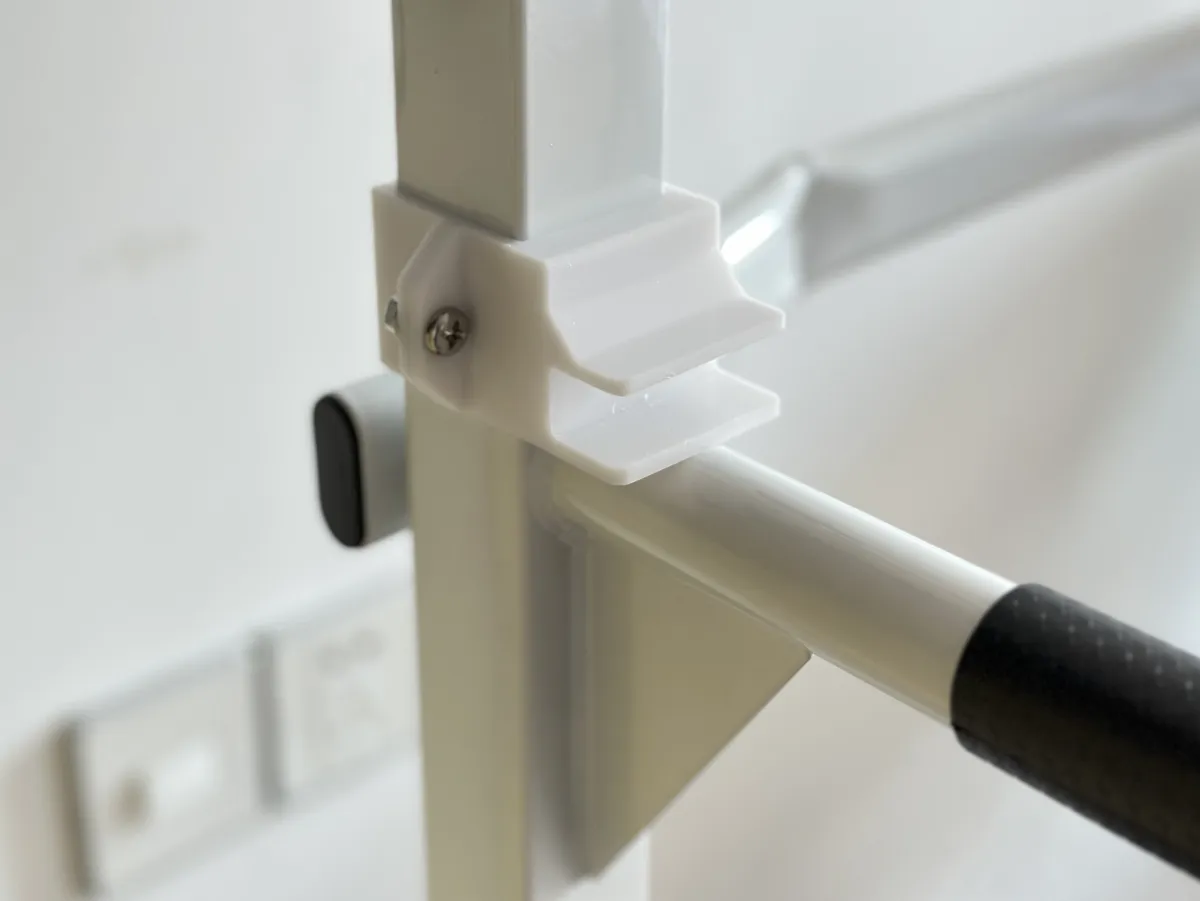

The mounting consists of two parts: the section that clamps onto the stand’s uprights is secured with screws and remains in place without affecting pull-ups or other exercises; the portion attached to the handrail serves as a stopper and can be removed easily.



The columns marked by the red line provide structural support. With a pair of pliers or a screwdriver, they can be pried loose and removed with minimal effort.



Here are my key dimensions:

Tabletop thickness: 15 mm; Stand upright square tubing: 40 × 40 mm; Handrail tube diameter: 32 mm;

You’ll need four pairs of M6 screws and nuts, with each screw longer than 12 mm.

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    M6 螺丝+螺母
    4
    螺丝的螺纹部分长度大于12mm

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted
