Open-source Maxwell supercapacitor energy-storage spot welder housing
Print Profile(1)
  • 0.2 mm layer height, 2‑wall walls, 15% infill density

    1-disc

    PLA

    Designer

0

0

6

0

Released 2026-05-03
Details
Files(1)
Makes & Comments (0)

        The accompanying power board is available at the JLCPCB Open Source Plaza; https://oshwhub.com/redaimo/project_xttjorsx (currently under JLCPCB review)

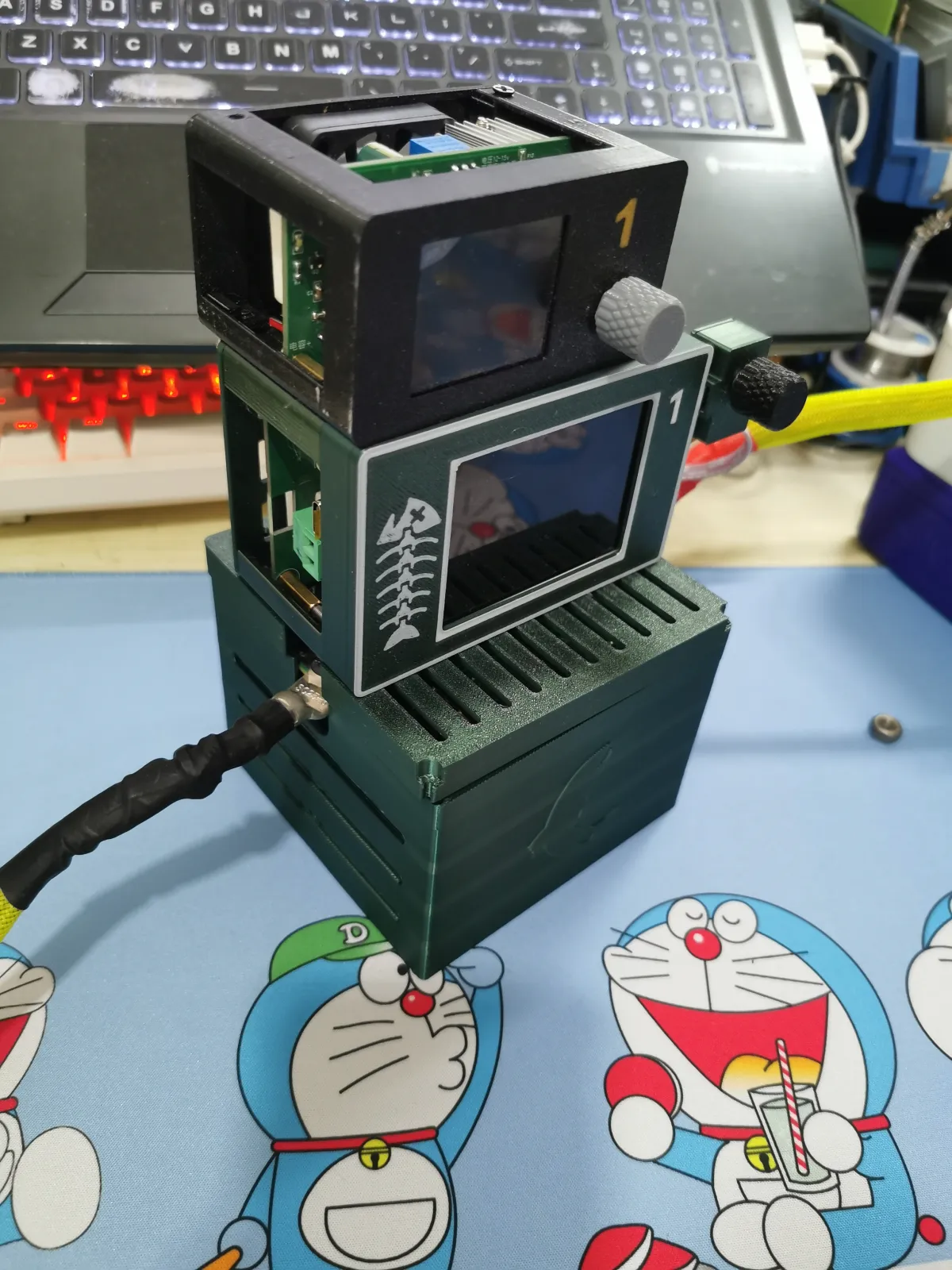

        A 2S3P/6S case design based on the Maxwell 350F supercapacitor

        Capacitor holders are embedded within the case

        The top and bottom shell feature a hinge structure for easy maintenance

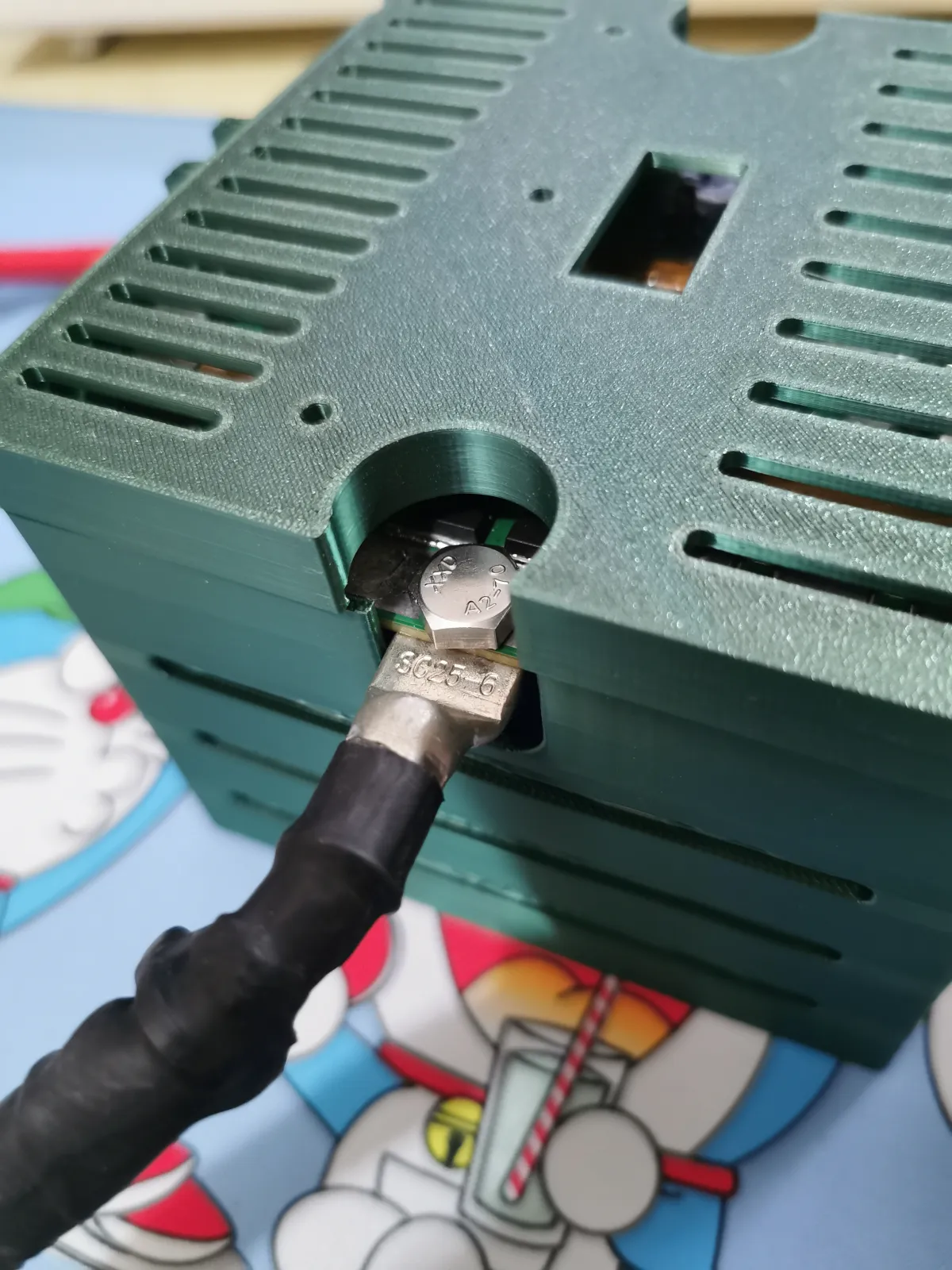

        Spot-welding pins are pre-arranged with copper tab slots

        Equipped with a pair of mounting feet and M3 mounting holes; users can adapt these as needed for controller installation

        https://oshwhub.com/redaimo/project_xttjorsx
