  • Exhaust fan

  • Exhaust duct

  • Box sealing

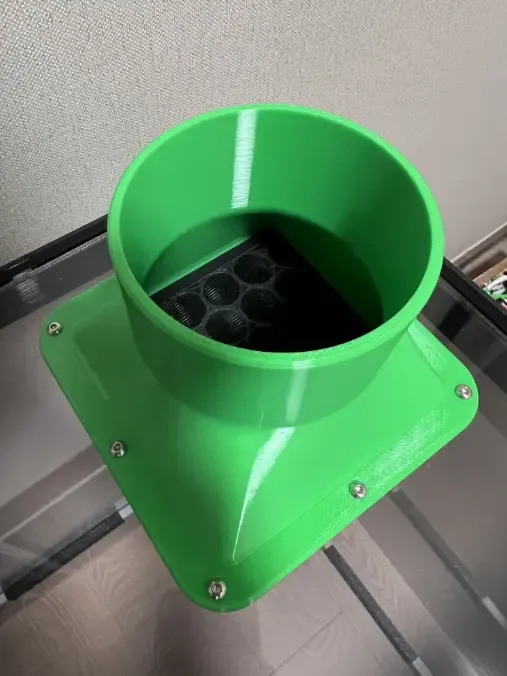

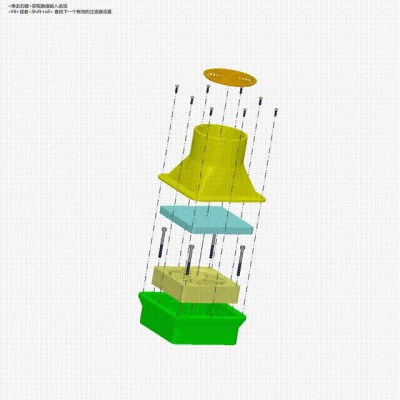

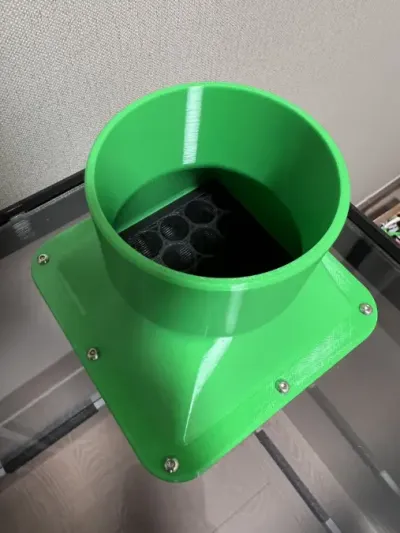

Exhaust system
Print Profile(1)
  • 0.2 mm layer height, 2‑wall walls, 15% infill density

    2-disc

    PETG

    Designer

3

9

96

9

Released 2026-04-11
Details
Files(1)
Makes & Comments (0)

Exhaust System:

1. You can choose to use only the filter cartridge without installing the ductwork; a printed end cap is also optional.

2. Alternatively, you can install ductwork that vents outdoors, in which case neither the filter cartridge nor the end cap is required.

3. For adults who want it all—both options are available.



BOM List:

1. 9025 fan × 1

2. 100×100×10 activated carbon filter cartridge × 1

3. 76 mm inner diameter nylon fabric duct × 1

4. M4×40 hex socket screws (with nuts) × 4

5. M3×10 screws × 8

The choice between the filter cartridge and the ductwork depends on your selection.
