Thanks to Xianrenlao for open-sourcing this

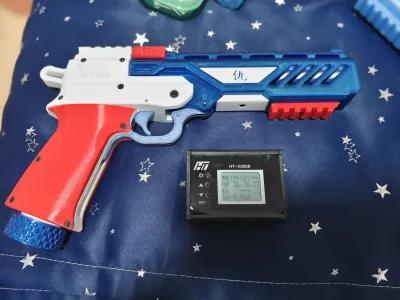

Di Ming Four-Ring 1g bullet

1.5 curly 150mm: 35–37 points

1.5 curly 170mm: 39–40 points

1.6 curly 160mm: 43–46 points

I haven’t tried the others

I recommend using the 1.5 curly—it’s easy to fold, saves effort, and is durable.

Wear on the print cylinder is inevitable

If possible, upgrade to a reinforced nozzle head; this will slightly reduce the score.

You can use soft, airtight silicone around the wire guard, elbow, and cylinder to boost the score.

If the cylinder is too small, the effective travel may be less than 5 cm.

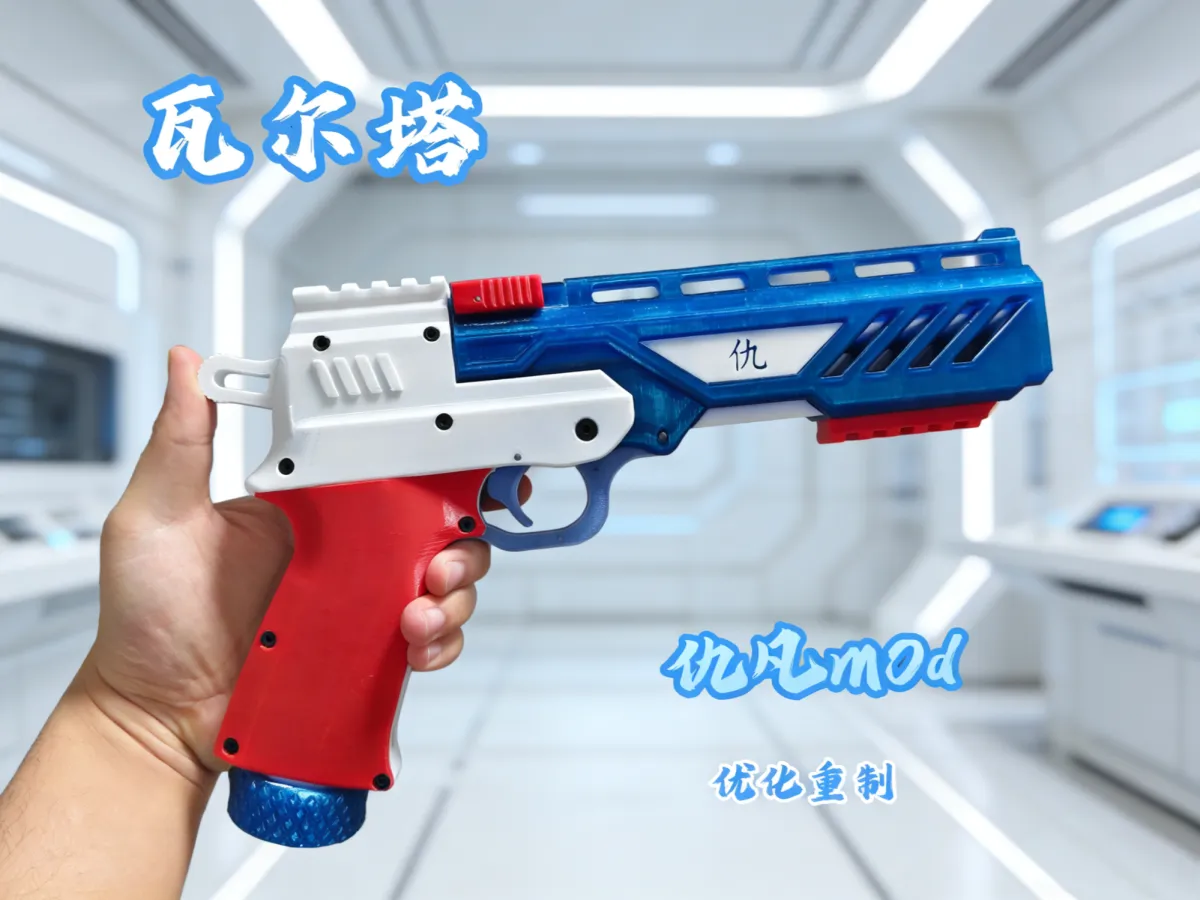

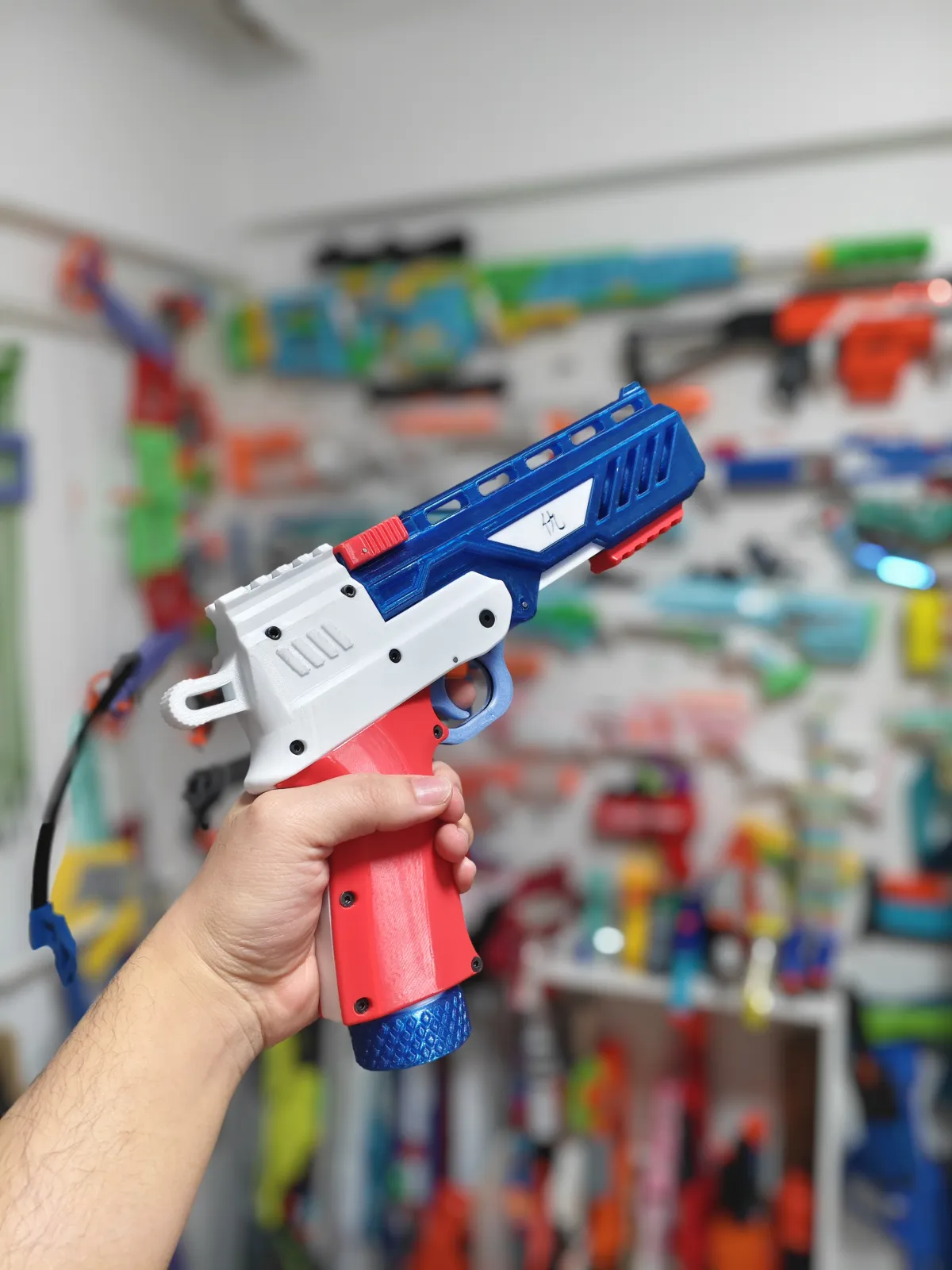

Great positioning, looks cool, and fun to play with! As for the next-generation performance, if there are any issues, feel free to join the group to provide feedback—regular collection, rectification, and optimization will follow. ‎ദ്ദിᵔ.˛.ᵔ₎✧

The installation video is on Bilibili: [Varta Qiu Fan Mod Installation Video‎ദ്ദിᵔ.˛.ᵔ₎✧]

The hardware can be bundled together on Xianyu

Here’s a self-assembled parts list:

1. M3×16 hex nut posts: 7

2. M2.5×14 cylindrical pins: 1

3. M2.5×16 cylindrical pins: 1

4. M2.5×35 cylindrical pins: 1

5. M2×25 cylindrical pins: 1

6. M3.0×20 cylindrical pins: 1

7. Small springs, M0.6×5×10: 1

8. Small springs, M0.6×5×20: 1

9. Countersunk screws, M3×10: 13

10. Countersunk screws, M3×5: 2

11. Countersunk screws, M2×7: 7

12. Countersunk screws, M4×12: 2

13. Internal-threaded cylindrical pins, M4×6×25: 1

14. O-rings, M2.5×27: 2

15. Metal parts, long/short: 1 each

16. Curly hair, M1.5×16×170: 1

17. Buffer pads, 20mm diameter, 2mm thick

18. Cylinder, 27×30×63: 1

19. Inner tube, 13×16×210: 1

20. Cup-shaped heads, M3×10: 4

21. Wire guard: 1

22. M3 machine screws, 5mm: 1

23. Small springs, M0.5×5×20: 1

24. Washers, 18/26/1: 1 each
