Right-angle clamp
Right-angle positioning fixture
Woodworking tools
- 0.2 mm layer height, 2‑wall walls, 15% infill density
1-disc
PETG
Designer
4
1
Design Concept

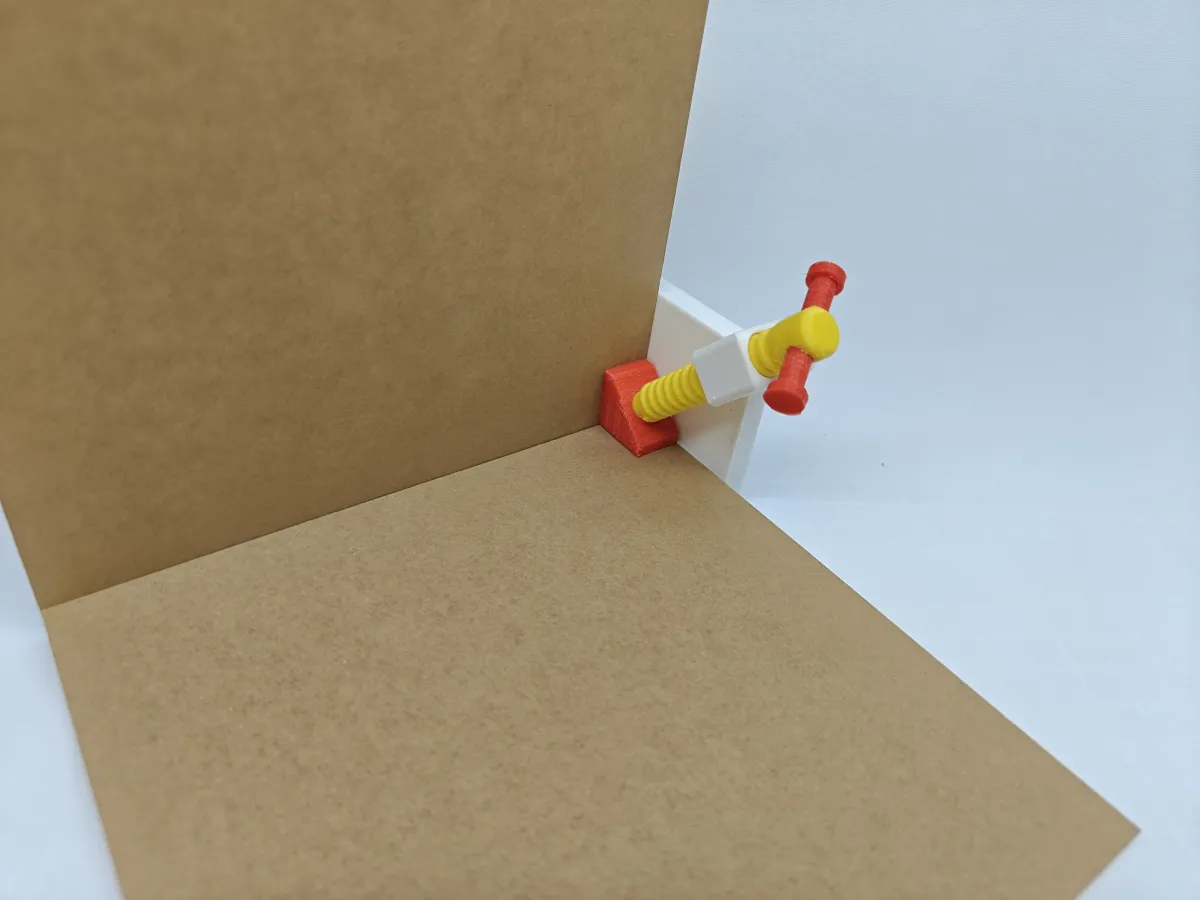

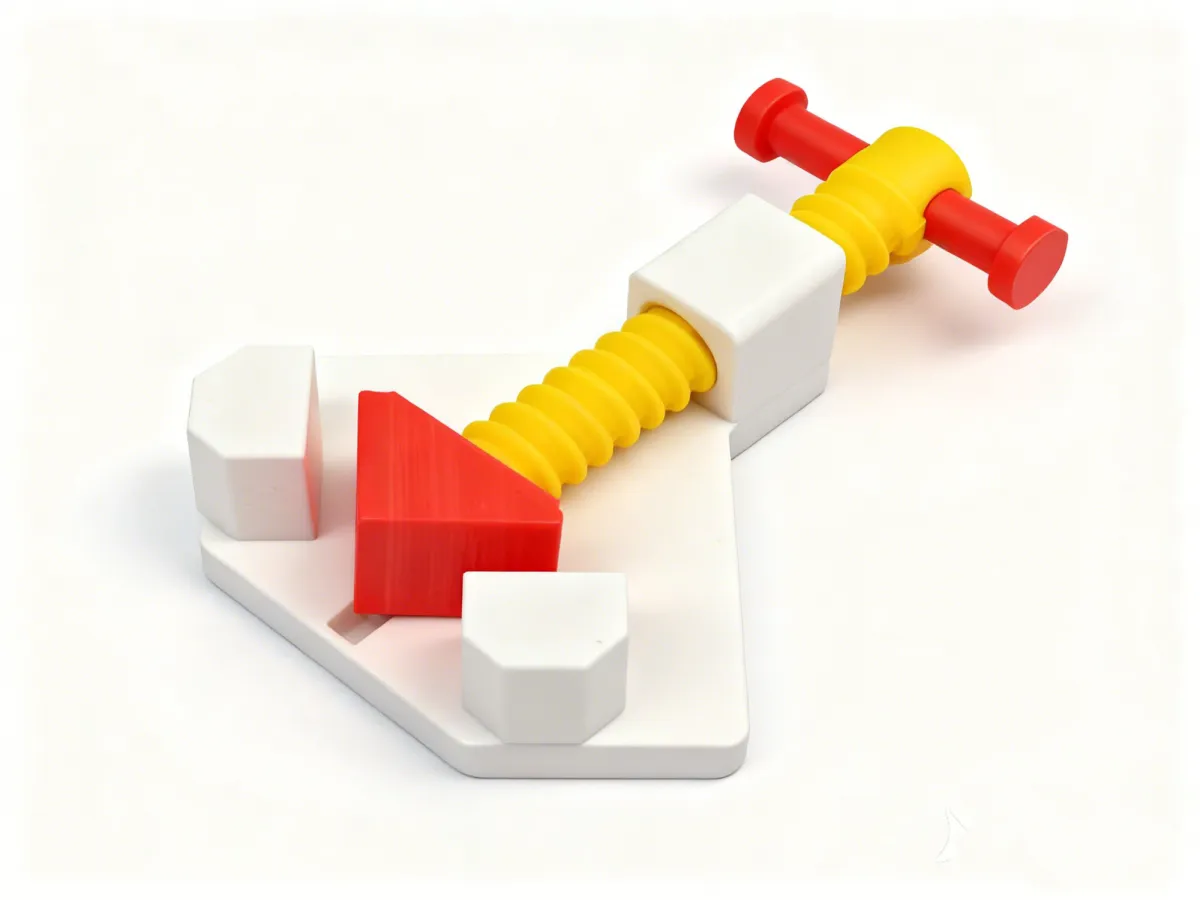

The right-angle mounting aid is specifically designed to ensure precise 90-degree joints between materials. This right-angle clamp features a modular design with an easy-to-grip and adjust knob, providing a flexible and convenient clamping solution.
Applications
The right-angle clamp enhances the accuracy of woodworking assembly and other DIY projects, making it ideal for furniture assembly, project construction, and model building—any application that requires clean, precise right-angle alignment.
Printing Recommendations
We recommend printing with PLA material to achieve high precision and strength across all components. Support structures are required, and a layer height of 0.2 mm delivers excellent surface finish.
Assembly Instructions
Once printing is complete, simply assemble the parts; each component clamps securely, ensuring a quick and effortless user experience.
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
Credit must be given to the creator
Only noncommercial uses of the work are permitted
Remixes must be shared under the same license
