- 0.2 mm layer height, 2‑wall walls, 15% infill density
1-disc
PETG
Designer
3
0

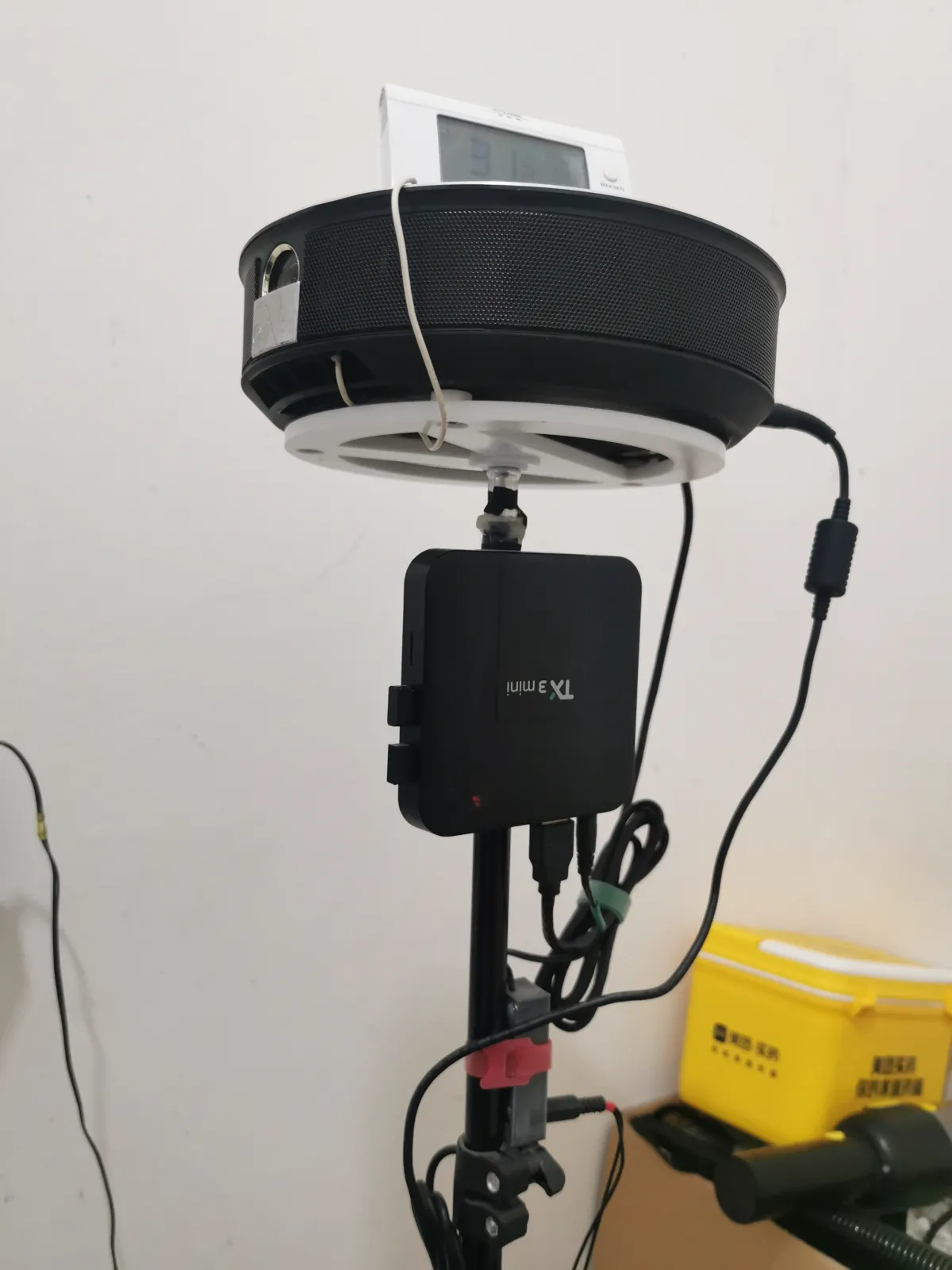

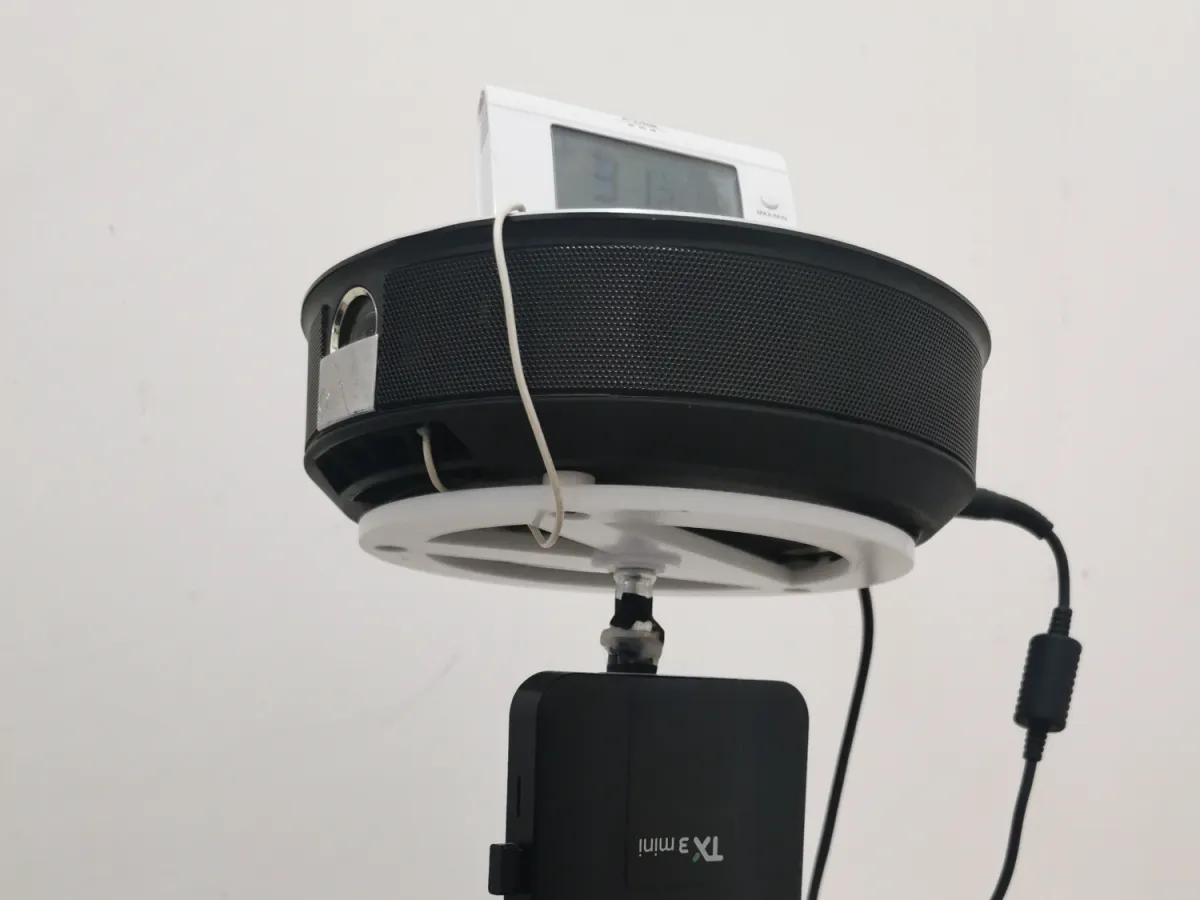

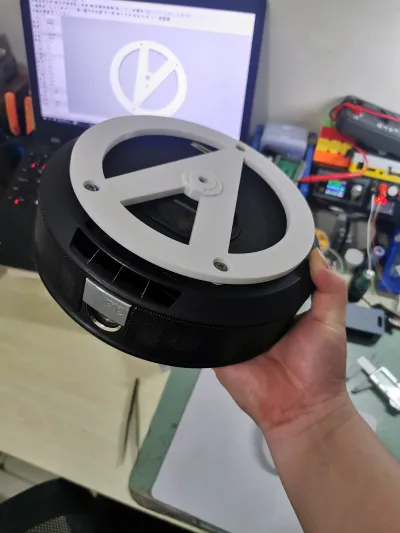

The household cleaning company lost the projector claw plate bracket, so I drew one based on the original dimensions
This claw plate bracket is compatible with projectors of the same size and specifications, such as those from NUT, Lichai Cloud, and other brands
It must be printed using PETG or higher-quality ABS filament
It must be printed using PETG or higher-quality ABS filament
It must be printed using PETG or higher-quality ABS filament

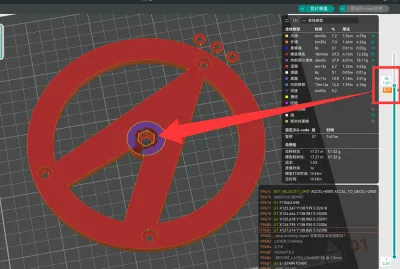

1. A nut with an outer diameter of 9–10 mm must be embedded in the pause layer (the inner diameter depends on how large you want the mounting hole to be and where you plan to install the device), for converting to single-screw use

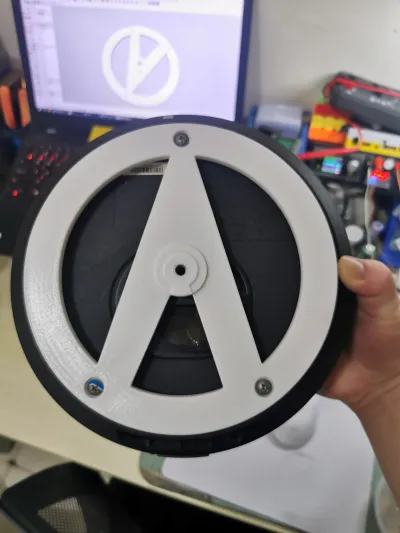

2. Three diagonal screws can use M3–M5
3. Washers are provided at the diagonal positions to avoid obstructing the projector’s bottom air intake and cooling system
Bill of materials
- NameQuantityNotes
- 1外径9-10MM螺母1用于暂停层嵌入
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
Credit must be given to the creator
Only noncommercial uses of the work are permitted
Remixes must be shared under the same license
Models(1)
- 坚果丽彩云投投影仪支架 M6-M8.3mfDesigner
71.62 KB
2026-03-25
