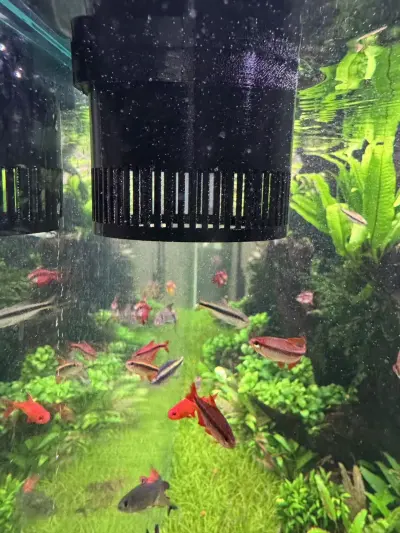

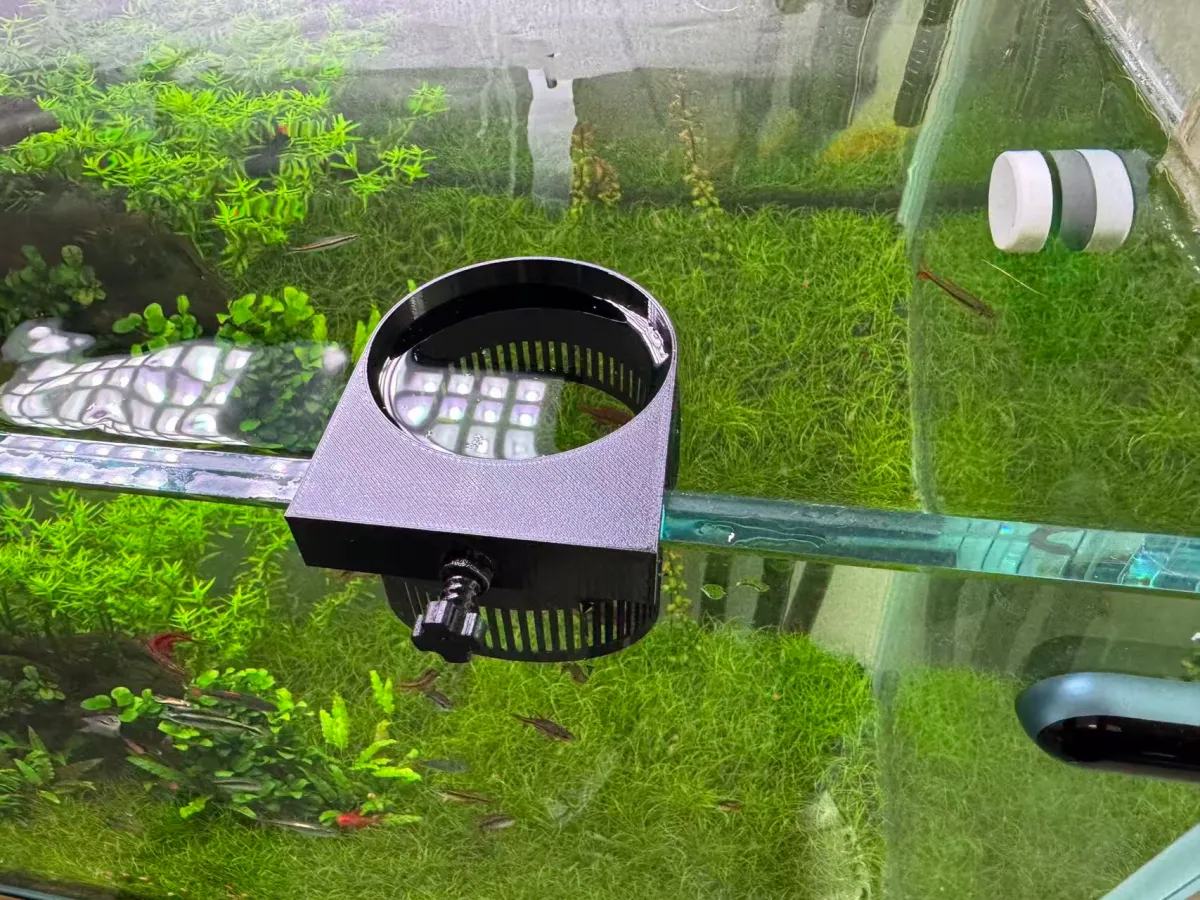

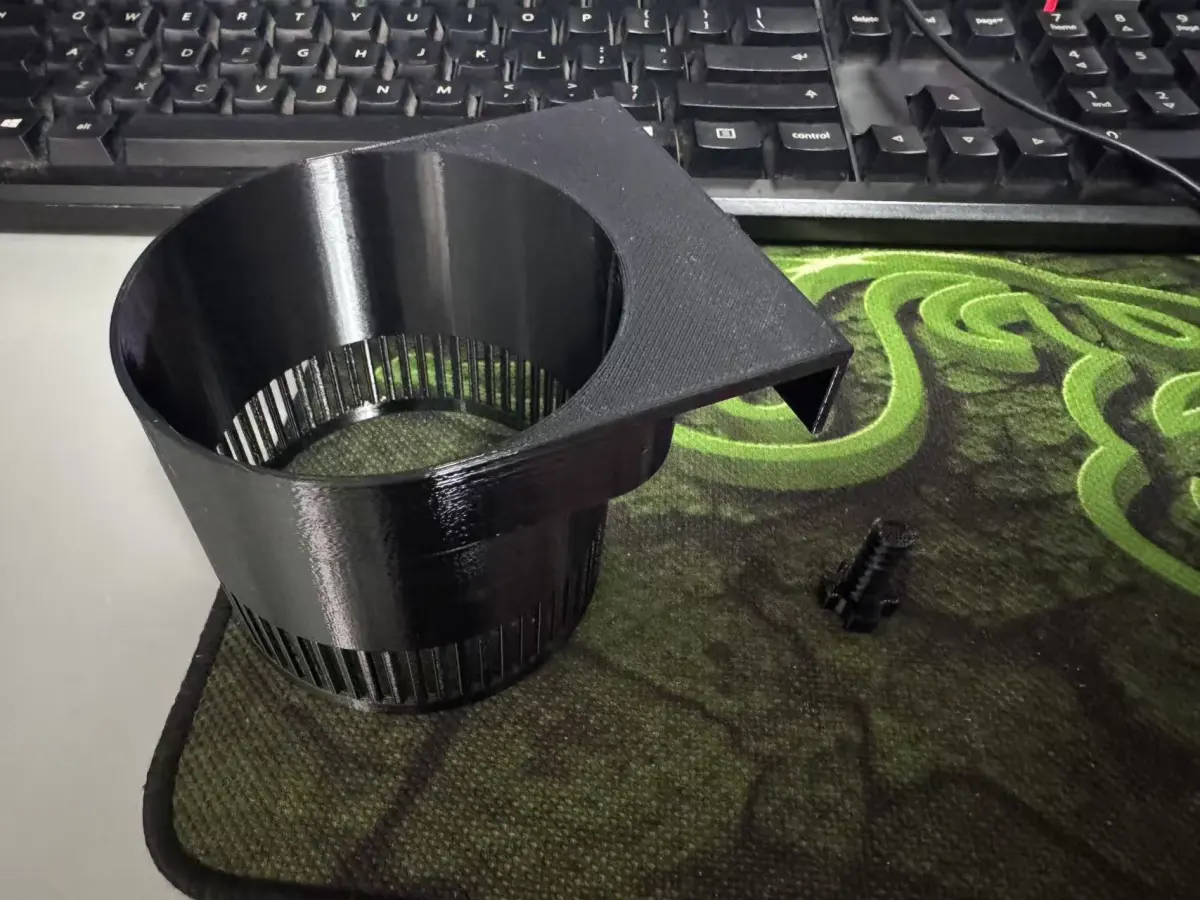

A 3D‑printed feeding ring, specially designed for aquarium feeding, features an innovative hanging mounting system that perfectly accommodates fish tank glass with a thickness of 15 mm or less, effectively addressing common pain points such as feed spillage, cloudy water, and unstable feeding zones. The feeding ring’s main body comes in either round or square shapes (customizable upon request), securely fastened to the aquarium edge via a snap‑lock mechanism, ensuring stable placement without scratching the glass surface.

• Precise Glass Compatibility: The snap‑lock design is tailored to fit 10 mm, 12 mm, and 15 mm glass, allowing tool‑free installation—just snap it into place and it stays secure.
• Anti‑Spillage Design: With a ring depth of approximately 3 cm and a width of about 5 cm, the feeding ring creates a “localized feeding zone” that minimizes feed dispersion and maximizes feed utilization.
• Water Quality Protection: The bottom of the ring is equipped with drainage holes (or honeycomb‑style perforations) to prevent feed from accumulating and decomposing, helping to maintain clean, clear water.
• User‑Friendly Details: The edges feature smooth, rounded chamfers to prevent finger injuries, while the surface boasts a non‑slip texture to enhance feed adhesion. The lightweight overall design—weighing roughly 30 g—ensures that the ring does not interfere with the aquarium’s water flow.

Design Highlights

• Mounting Method: The hanging (snap‑lock) design adapts to various aquarium configurations, offering greater flexibility during installation.
• Anti‑Spillage + Water Quality Protection: The localized feeding zone paired with drainage holes reduces feed waste and lowers the risk of water contamination.
• Precise Glass Adaptation: The snap‑lock spacing is meticulously calibrated to fit glass up to 15 mm thick, ensuring stability and preventing wobbling or falling.
• Customization Options: The 3D‑printed model supports adjustments to shape (round or square), size (diameter or width), and hole configuration (drainage holes or honeycomb perforations), making it suitable for a wide range of aquarium specifications.

Technical Specifications

• Compatible Glass Thickness: Up to 15 mm (custom options available for 8 mm, 10 mm, and 12 mm glass)
• Ring Dimensions: Approximately 6 cm in diameter (or 6 cm per side for a square ring), with a depth of about 3 cm and a width of roughly 5 cm (adjustable as needed)
• Recommended Materials: PETG (water‑resistant and corrosion‑proof, ideal for aquatic environments) or PLA (eco‑friendly and easy to print, though waterproofing treatment is recommended)
• Printing Recommendations: Use a 0.4 mm nozzle, set the infill density to 30%–40% for enhanced structural strength, ensure the snap‑lock walls are at least 1.2 mm thick to prevent breakage, and maintain a ring wall thickness of at least 1.5 mm to avoid clogging.
• Dimensional Reference: For round rings, a diameter of approximately 6 cm, a width of about 5 cm, and a depth of roughly 3 cm—perfectly suited for small desktop aquariums, such as 40 cm or 60 cm tanks.

Application Scenarios

▸ Feeding Small Aquariums: Ideal for feeding small fish like guppies, bettas, and danios, reducing feed spillage and keeping water quality pristine.

▸ Feeding During Breeding Periods: Perfect for mother fish during reproduction and for fry during their initial feeding phase—allowing precise feeding while minimizing feed contamination of the young fish’s habitat.

▸ Feeding Planted Tanks: When fish and shrimp are kept together in planted tanks, localized feeding helps prevent feed from settling on the aquatic plants and compromising their aesthetic appeal.
