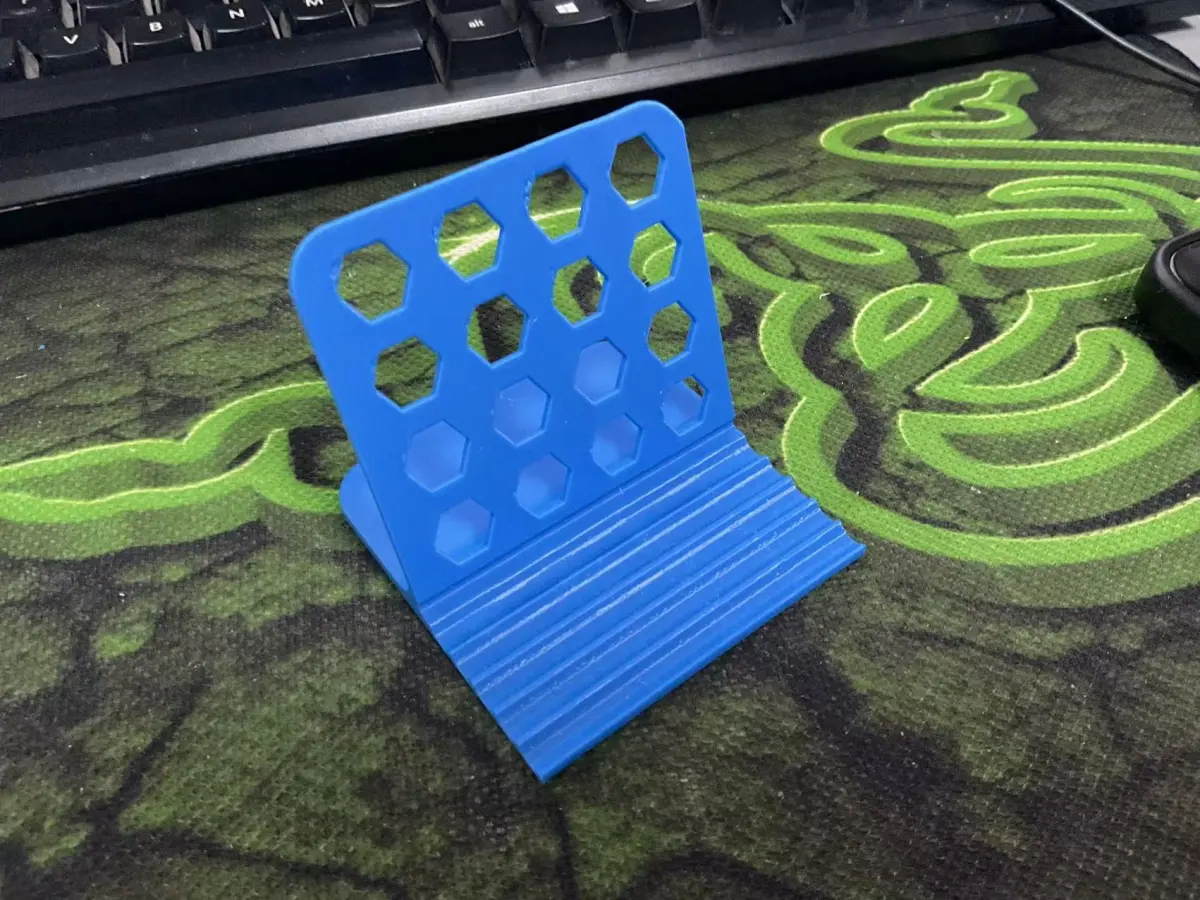

A 3D‑printed phone stand that supports multi‑position angle adjustment, specially designed for a wide range of applications—including desktop use, the kitchen, and in-car setups. The stand’s main body features a hexagonal honeycomb lattice structure, while the base and support arms are integrated into a compact, foldable design. Multi‑position adjustment is achieved via a slot‑based locking mechanism, offering angles ranging from +30° to +75° in the upright position—and equally versatile inverted positioning. The honeycomb design not only keeps the stand lightweight while reinforcing structural integrity, but also ensures optimal airflow to prevent heat buildup on the back of your phone.

When unfolded, the stand forms a stable triangular support system. The slot‑based design allows for 5–7 adjustable angles, catering to diverse viewing needs such as binge‑watching, video calls, following recipes in the kitchen, or using navigation systems while driving. The non‑slip textured base, combined with a perforated design, maximizes friction to prevent slipping while simultaneously providing convenient cable management—charging cables can easily thread through the perforations. Round holes are strategically placed along the side, enabling users to hang small accessories like earphones or keychains, further enhancing the stand’s practicality.

Key Design Features

• Multi‑Position Angle Adjustment: A slot‑based locking mechanism enables smooth, stepless angle switching between +30° and +75° in both upright and inverted orientations, making it ideal for a variety of use cases—from movie nights and office work to cooking in the kitchen and navigating while on the road.
• Honeycomb Lattice Structure: The hexagonal geometry distributes pressure evenly, delivering rock‑solid stability; the perforated design reduces weight and accelerates heat dissipation, helping to keep your phone cool even during extended use.
• Foldable and Portable Design: The stand folds down into a flat, compact form factor, perfect for easy storage and portability—simply tuck it into your pocket or side bag for quick access when you’re on the go for business trips or travel.
• Ergonomic Angles: Adjustable angles cover a broad range of comfortable viewing positions for everyday activities like watching movies, working at your desk, or checking recipes in the kitchen—minimizing neck strain and ensuring a more relaxed, fatigue‑free experience.
• Anti‑Slip & Integrated Storage: The non‑slip texture on the base prevents sliding, while the side holes provide a convenient spot to hang small items like earphones or keychains—maximizing functionality in a single, multifunctional design.

Technical Specifications

• Compatible Devices: Smartphones (width 58–85 mm, thickness ≤10 mm) and small tablets (7–8 inches)
• Recommended Materials: PLA (eco‑friendly, easy to print, available in a wide array of colors) or PETG (high temperature resistance, excellent wear‑resistance, ideal for long‑term use)
• Printing Recommendations: Use a 0.2 mm nozzle, set the infill to 20%–30% (balancing strength with lightweight design), ensure honeycomb cell walls are at least 1 mm thick to prevent breakage, and reinforce the slot areas with higher infill levels (30%–40%).
• Dimension Reference: When fully extended, the base measures approximately 80 mm × 50 mm with a height of about 100 mm; when folded, the stand is just 15 mm thick—perfect for compact storage.

Use Cases

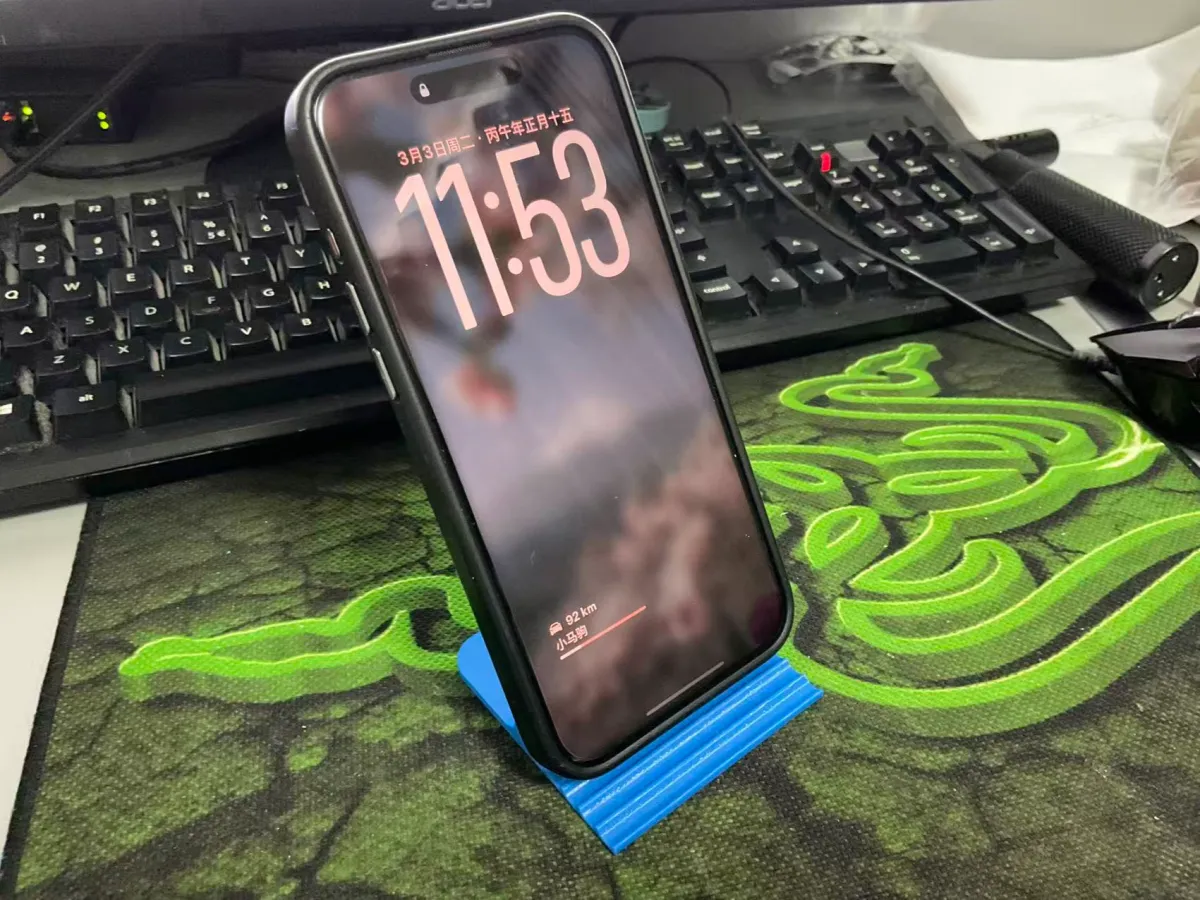

▸ Desktop Office/Streaming: Adjust to 60°–75° to free up your hands while attending meetings or enjoying your favorite shows.

▸ Kitchen Scene: Hang it upside down under cabinets or on the wall, adjusting to 30°–45° for hands‑free recipe reading and effortless video scrolling while preparing meals.

▸ In‑Car Navigation: Mount it upside down on the windshield or dashboard, adjusting to 45°–60° so the screen faces upward for clearer navigation and a more comfortable viewing experience.

▸ Travel & Business Trips: Fold it up and slip it into your pocket—unfolding it anytime, anywhere, whether you’re staying at a hotel or grabbing a coffee at a local café.
