Weld‑free, screw‑free — soldering, fume filtration, and fan operation.
Print Profile(1)
  • 0.2 mm layer height, 2‑wall walls, 15% infill density

    1-disc

    PETG

    Designer

0

0

12

2

Released 2026-02-02
Details
Files(1)
Makes & Comments (0)

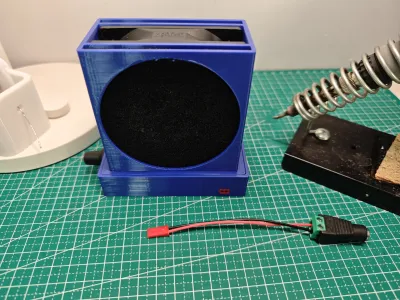

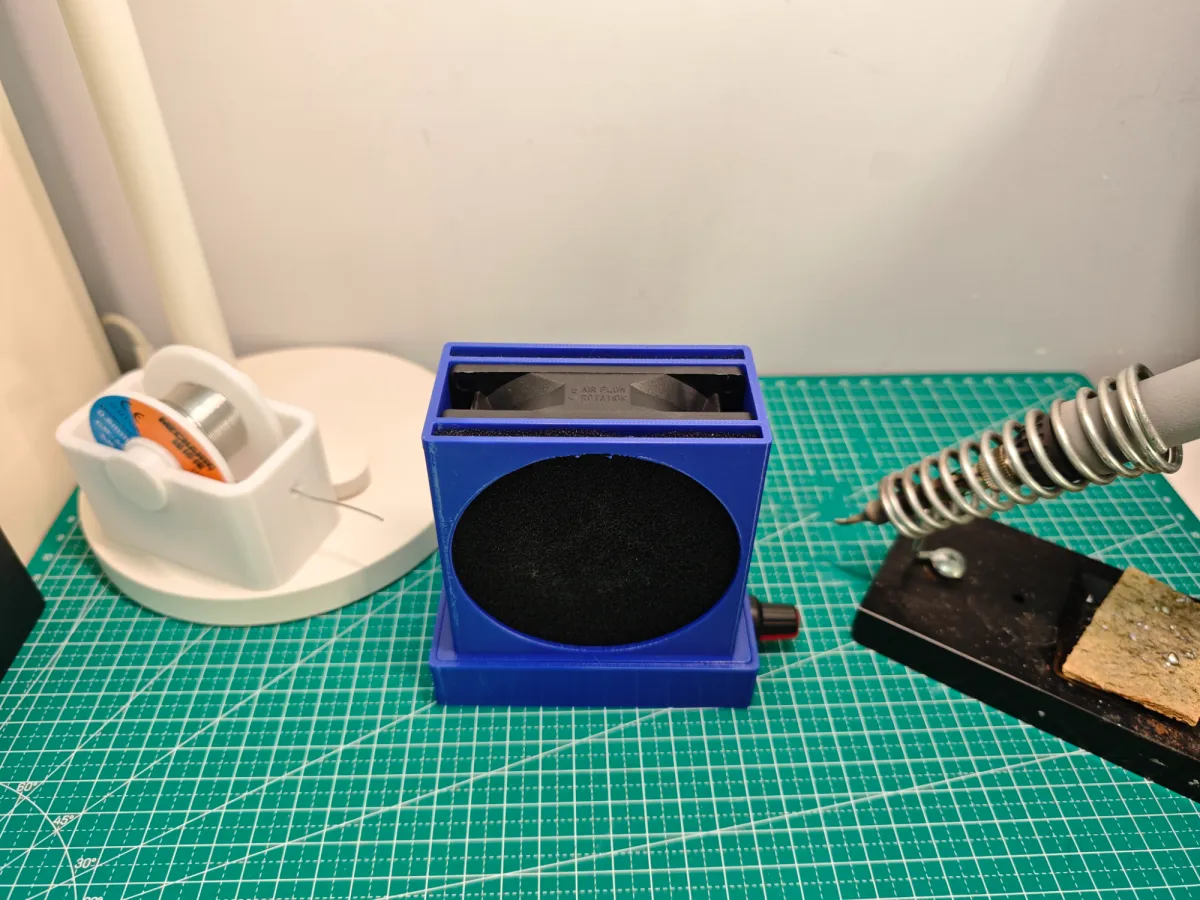

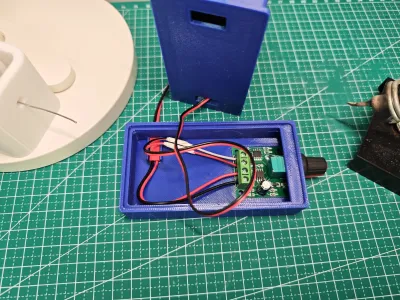

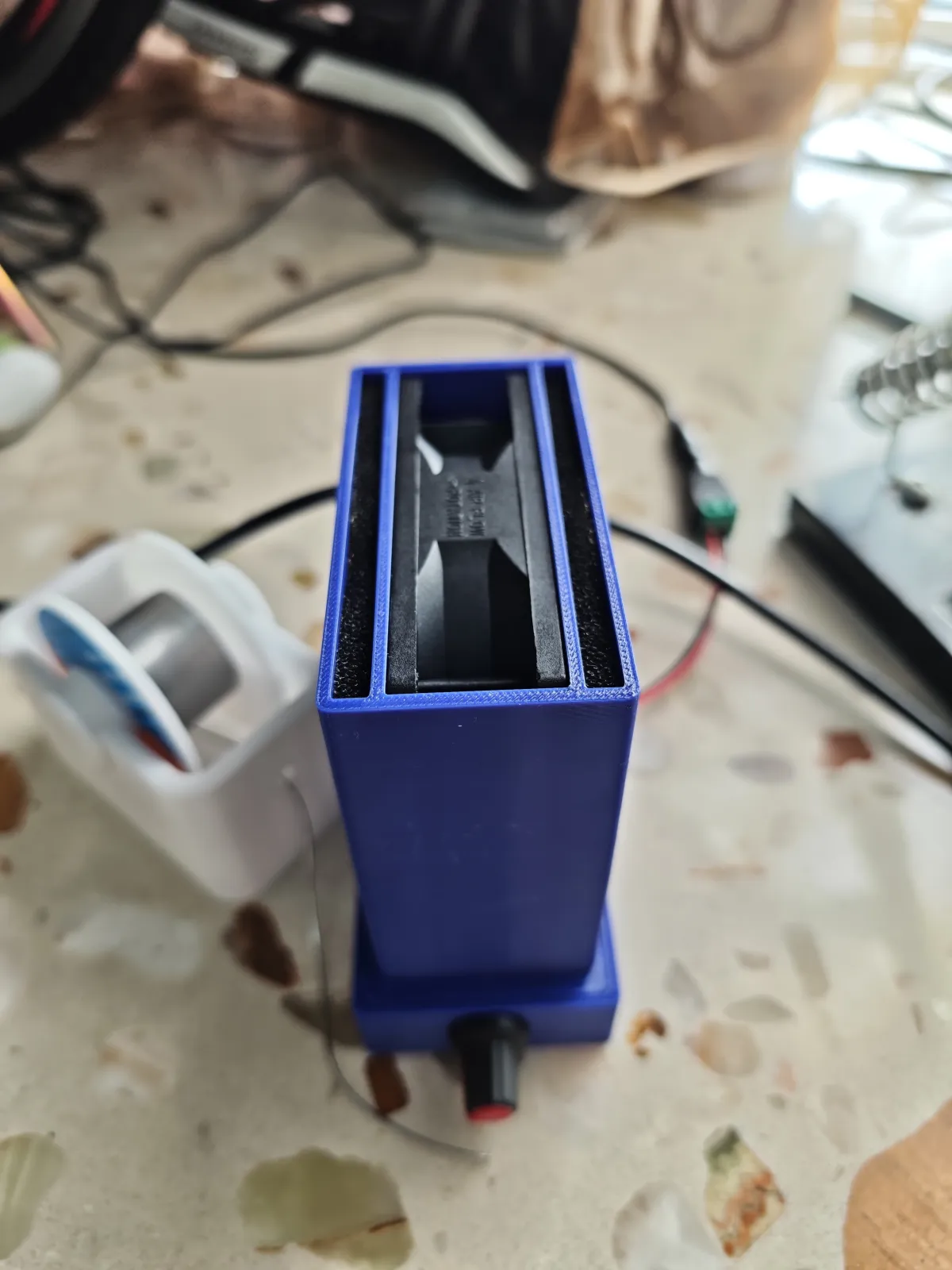

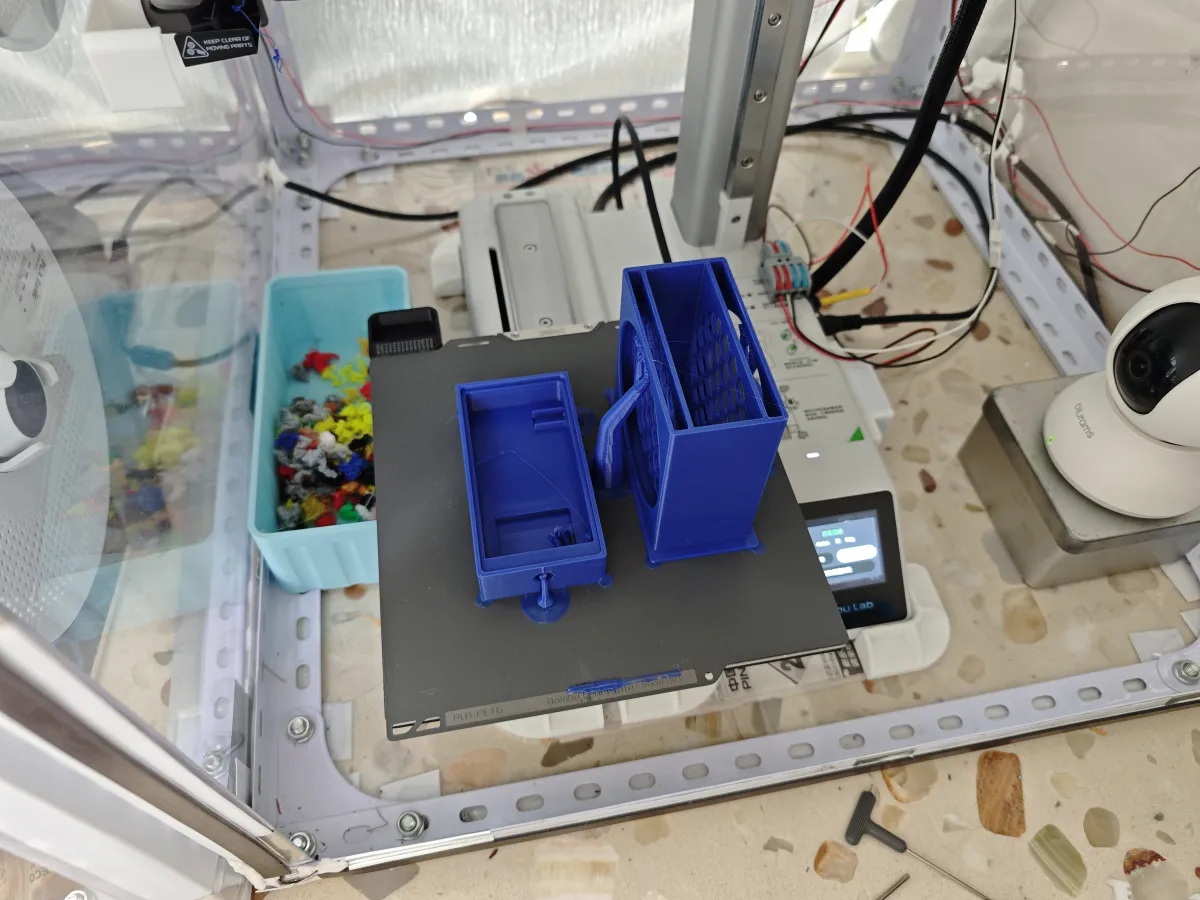

Based on the existing parts in hand, I created a 3D model for a fan bracket designed to filter welding fumes. All wiring is secured via screw‑clamped connections—no soldering required; simply snap the corresponding components into place within the model.

The sponge used was leftover 5mm-thick foam from sealing machine boxes—I cut it into 8cm × 8cm pieces. While this isn’t specialized activated carbon smoke‑absorbing foam, the dedicated activated carbon models available on Taobao all come in 10mm thickness, which necessitated adjustments to the design.

The silent fan didn’t generate sufficient suction, so I upgraded to a high‑airflow model—and the results were excellent.

The other components I utilized include:

  1. 12V 808025 Fan

  2. Fan Speed Controller

  3. DC Weldless Female Connector

  4. 2P Male Plug Cable

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    风扇
    1
    12v 802525
  • 2
    风扇调速器
    1
    1.8~12V 2A
  • 3
    DC免焊接母头
    1
  • 4
    对插线
    1
    2p
  • 5
    厚活性炭海绵
    2
    1mm厚，8cm*8cm大小

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Standard Digital File License

This work is licensed under a Standard Digital File License. Digital files have a strict non-commercial, personal use only license.

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital file or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including remixes of this object). You can not host these files on other digital platforms, web stores or cloud repositories. The objects may not be used in any way whatsoever in which you charge money, collect fees.
