Here’s the update:

1. It performs better than most models—no window design, resulting in superior sealing performance.

2. Material consumption has been reduced by 100g.

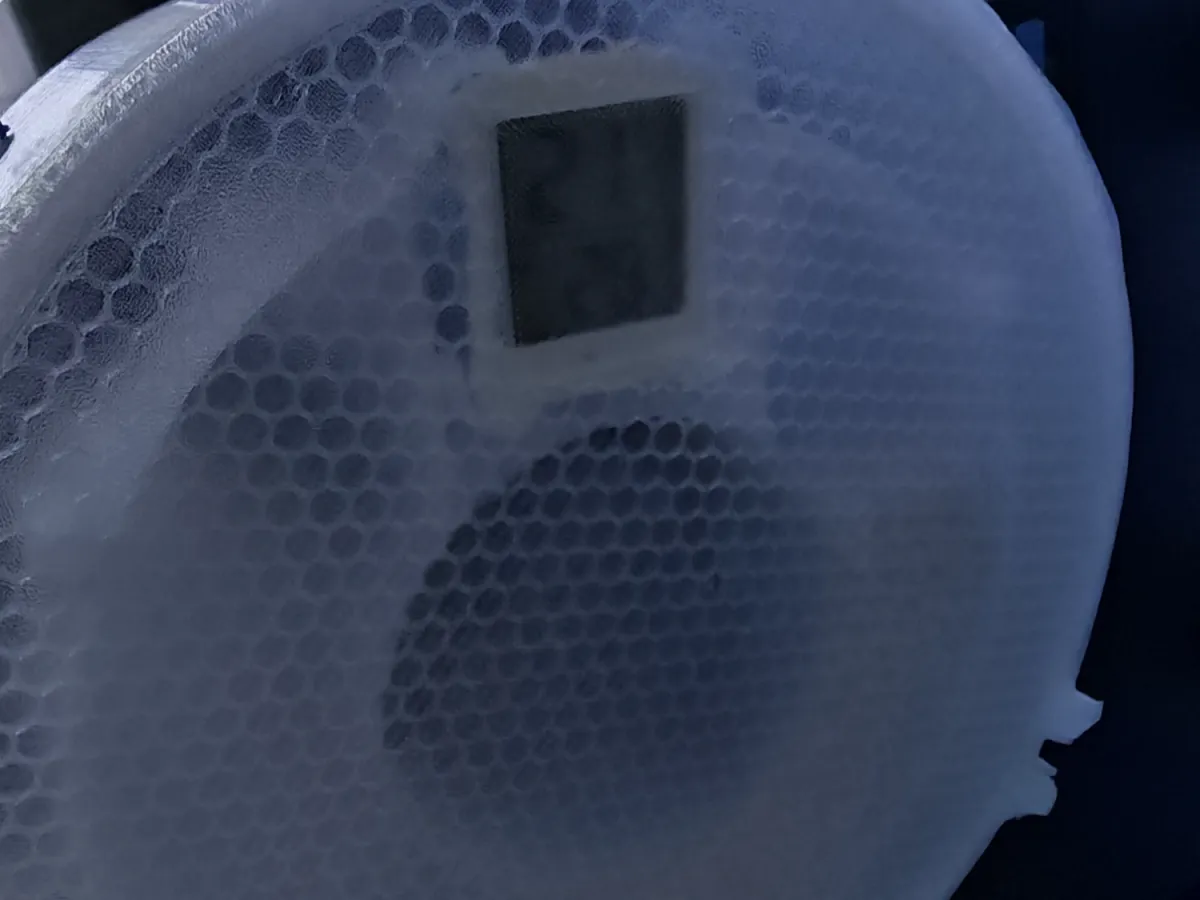

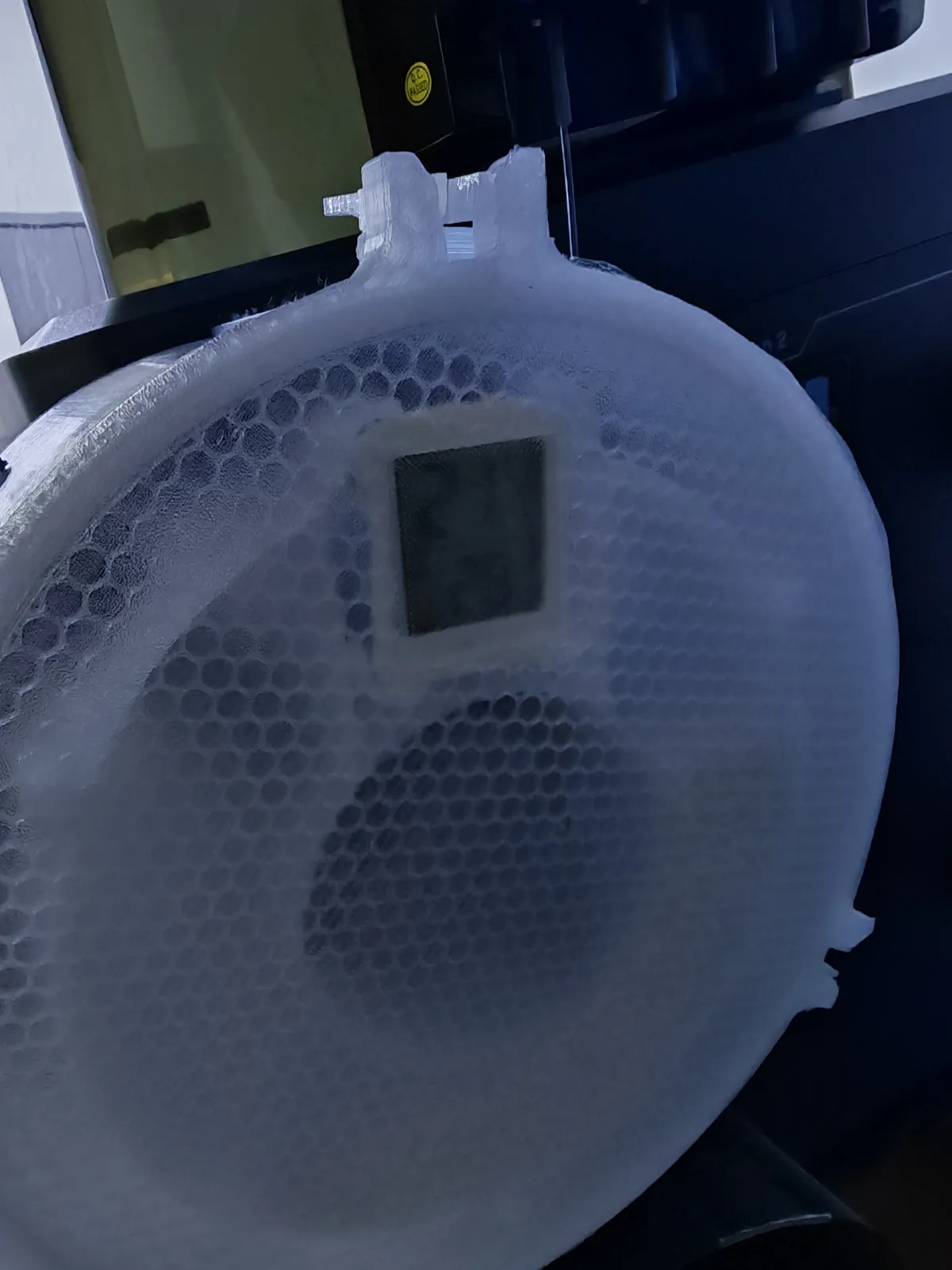

3. A dedicated slot has been预留 for the Xiaomi temperature and humidity sensor; if you have a compatible sensor, you can simply detach it and attach it to the slot—using PETG transparent material allows you to faintly see the displayed readings.

4. The lid features a pre‑installed molecular sieve compartment: when filled to about half capacity, the humidity drops to between 10% and 20% within 10 minutes (with indoor humidity ranging from 40% to 50%). The molecular sieve compartment lid is securely fastened with six 6mm‑diameter, 2.5mm‑thick magnets; if you’d prefer not to use magnets, you can easily secure the lid with self‑tapping screws instead.

Existing Issues:

1. To minimize material usage, the enclosure is made of PETG, which is slightly flexible—but this doesn’t affect functionality; just handle with care during assembly and disassembly.

2. When installing multiple units, the bottom lid’s snap‑fit mechanism can be tricky to open; you can rotate the unit to align the snap‑fit, though this will cause the temperature and humidity gauge to no longer sit vertically—though this does not impact usability.

If you have any additional suggestions, feel free to share your thoughts—we’re always eager to hear from the community!

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    直径6mm厚2.5mm磁铁
    6

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted

Remixes must be shared under the same license
