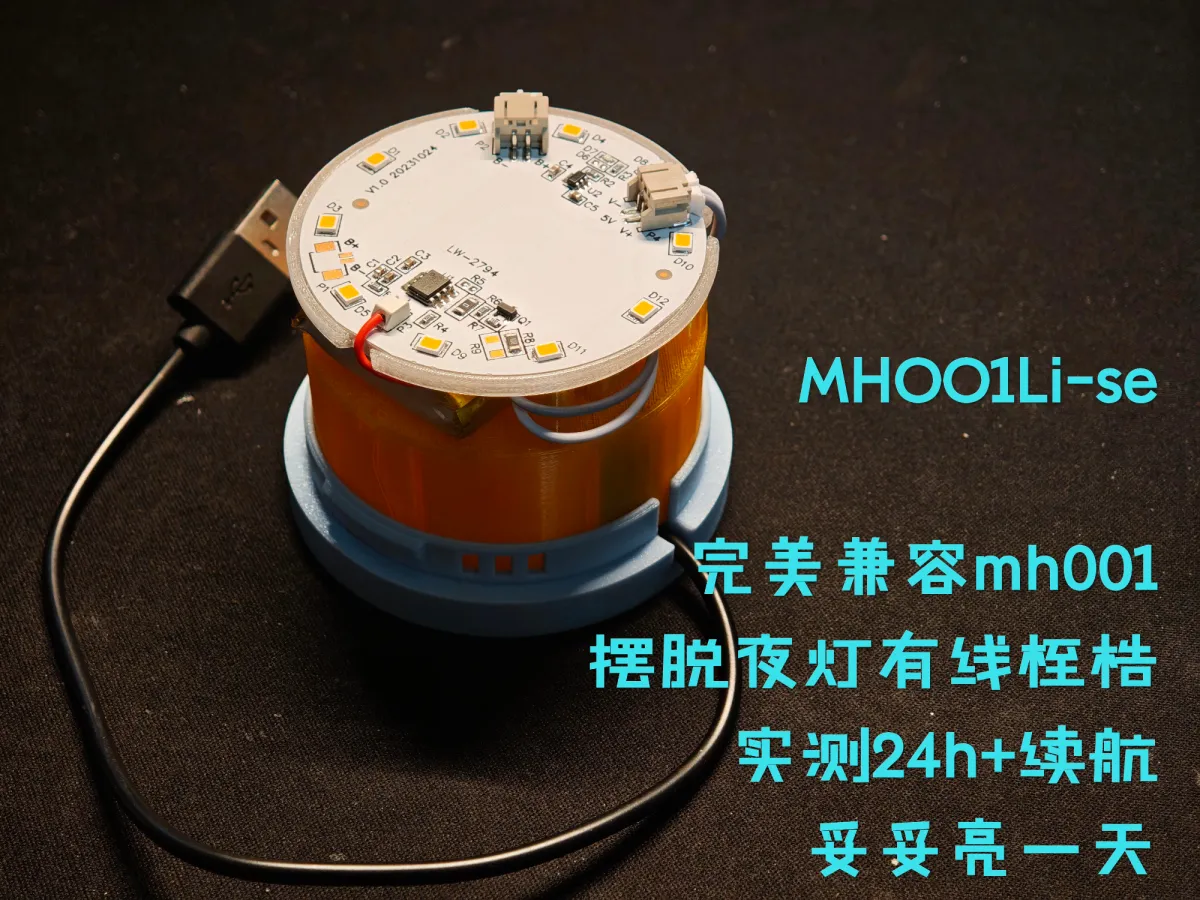

This model marks the very first creation in my MH001Li series, designed to unlock even more possibilities for customizing and expanding the range of compatible nightlight fixtures that work with the TopoTech MH001 wired nightlight. The downloadable Fusion 360 project file lets you tailor the design to your specific needs—perfect for bringing your vision to life!

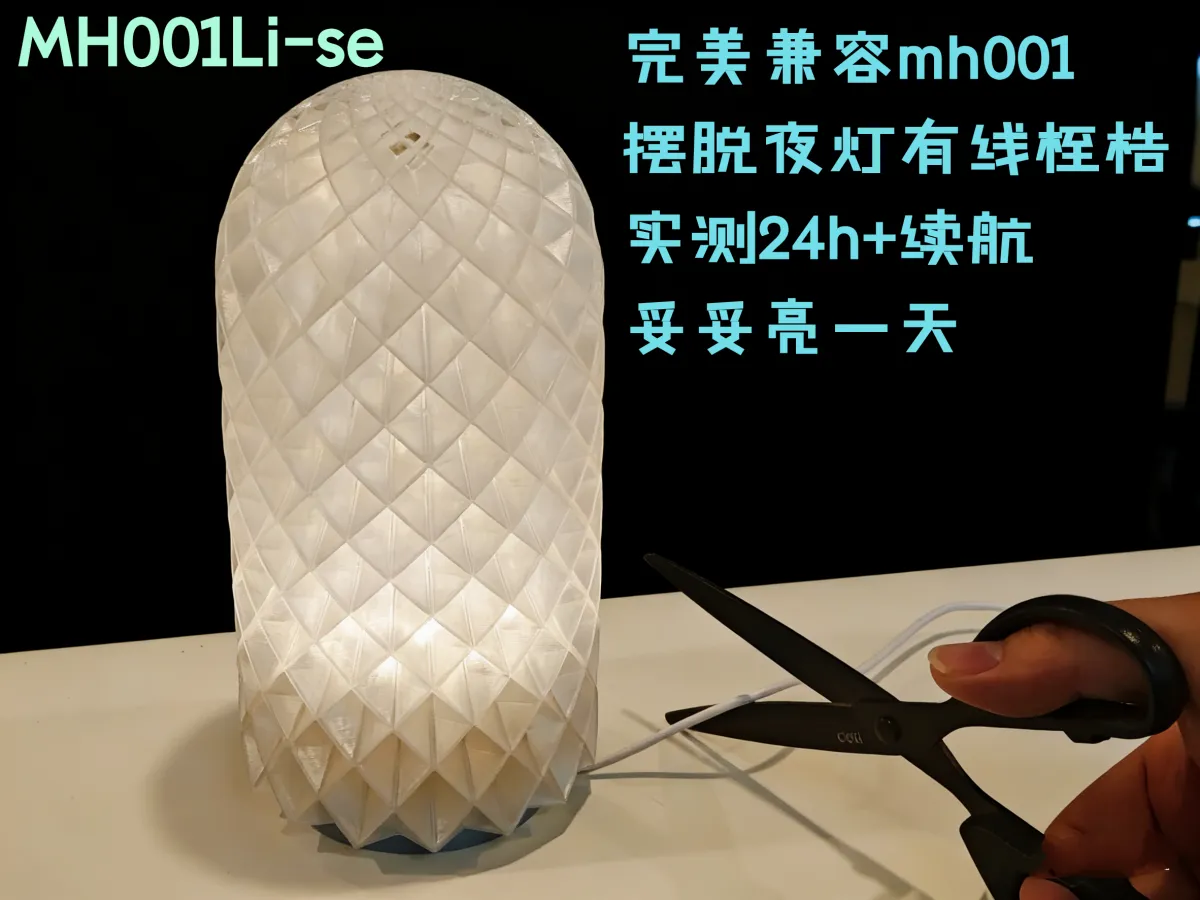

Let your designs transcend the confines of your bedside or desk—break free from limitations, venture outdoors, head camping, and embrace a world of endless possibilities—with the MH001Li Series of rechargeable nightlight components.

**********

Three Key Highlights: No soldering required! Over 24 hours of battery life! Exceptionally high compatibility! This versatile kit works with over 90% of nightlights in your community that utilize MH001 components—whether you’re sticking with the original base and adapter ring or opting for a custom setup.

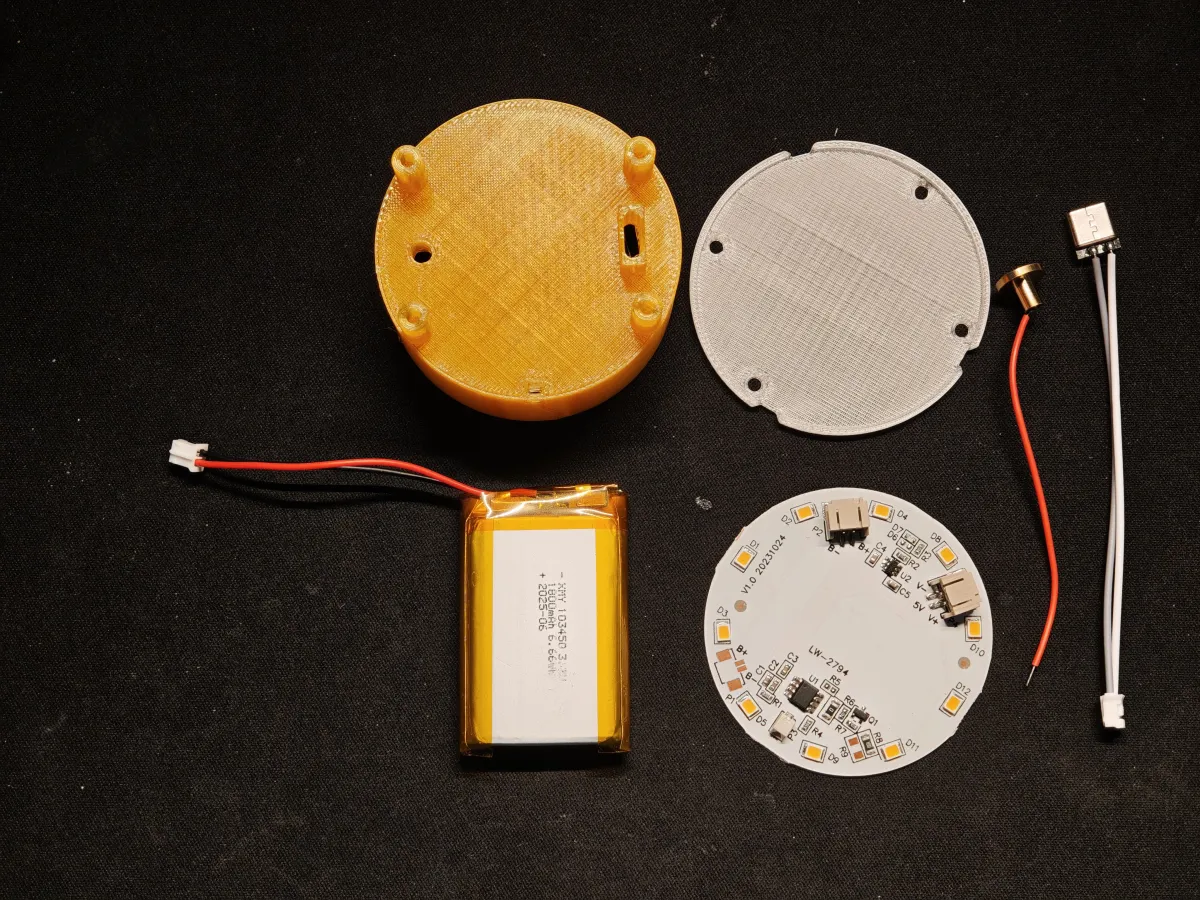

Materials Needed: LW2794 LED light board, matching touch dimmer switch, 2-pin USB-C connector cable, and a 2000 mAh lithium battery—ideally the 103450 size (though most e-commerce platforms bundle this with a smaller 400 mAh battery; we recommend purchasing each component separately, along with the 103450 lithium battery). Also required are M3 x 6 x 4 countersunk screws, thermal conductive double-sided tape (for securing the battery and light board), and 502 adhesive (to firmly attach the USB-C connector). For recommended purchase links to all materials, please refer to the Notes section at the end of this document.

Printable Components: The default print settings accommodate USB-C cables up to 25 mm in length. If your connector is longer, simply use the “Customize” feature online to adjust the design and download a version tailored to your specific cable length.

Assembly Guide:

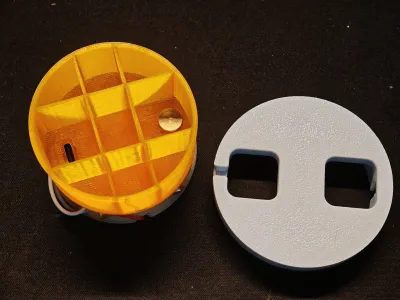

1. First, print the main lamp frame and top plate. Install the battery, touch switch, and USB-C connector inside the main frame. Secure the battery using double-sided tape; for the touch switch, you can either insert it through the bottom circular hole (reusing the dual-hole design of the MH001 base) or mount the switch wires via the side-mounted hole in the frame (be sure to drill a 4.2 mm diameter hole in the lampshade or lamp base to accommodate the touch switch). When inserting the USB-C connector, apply a small dab of 502 adhesive to the outer edge of the metal housing to prevent play caused by manufacturing tolerances.

   Once everything is in place, use the screw posts shown in the diagram to neatly route the wiring.

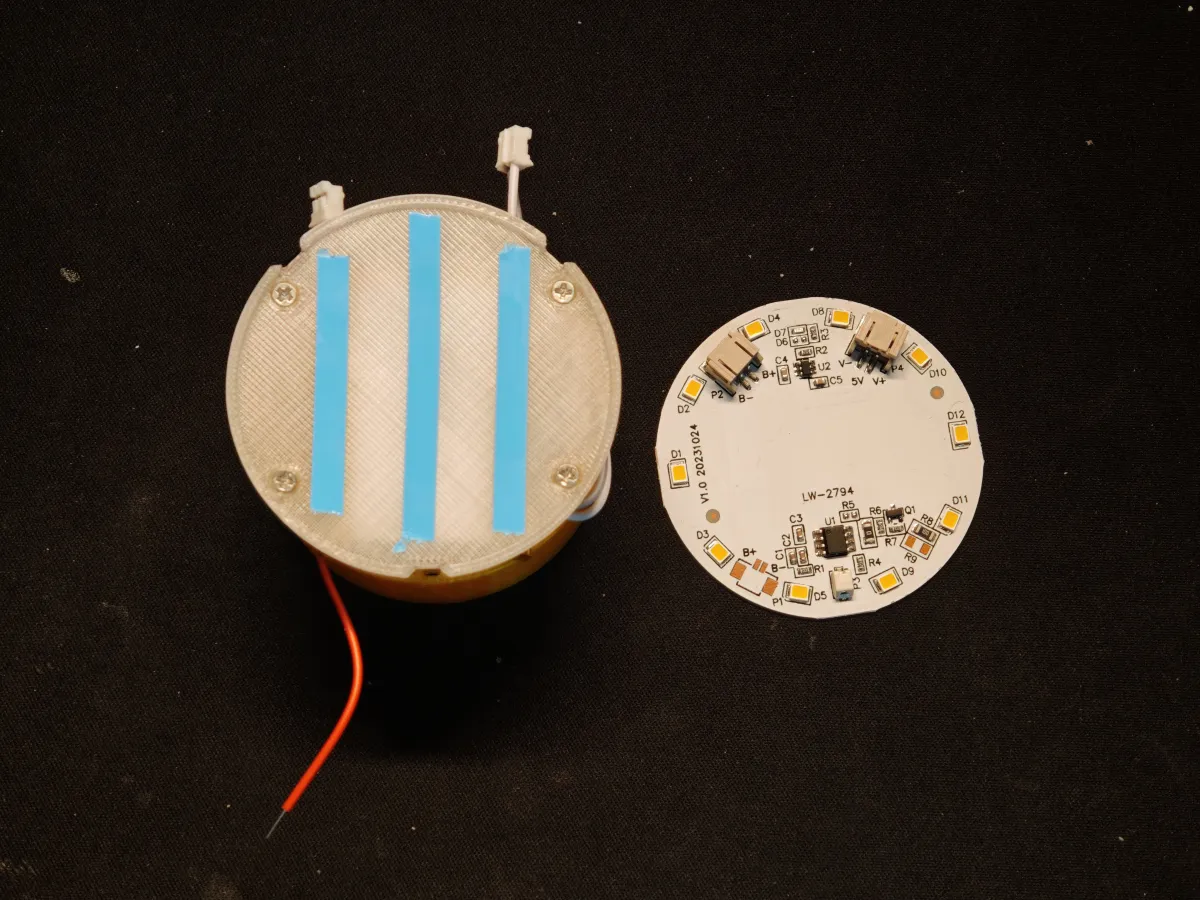

2. Following the orientation shown in the diagram, secure the top plate to the main frame using four M3 x 6 x 4 countersunk screws. Be sure to align the openings and wire routing correctly, then apply double-sided tape to the top plate.



3. Install the light board and complete the wiring.

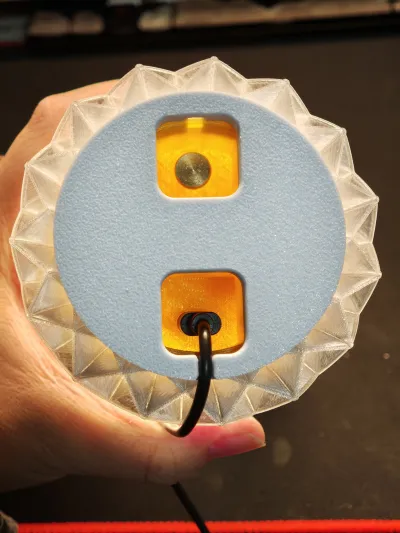

4. Place the fully assembled MH001Li into your existing MH001 LED base, ensuring the base’s cutouts align perfectly.



5. Screw on the lampshade, connect the power cable for charging, and you’re done!



Q&A:

• Why choose this module? The LW2794 is a 58 mm diameter LED lighting module that integrates three key functions—LED illumination, touch-based dimming, and lithium battery charge/discharge management—on a single PCB. All three connection lines are equipped with plug‑and‑play connectors, eliminating the need for soldering and making assembly incredibly convenient.
• Why recommend purchasing a separate battery instead of the standard 400 mAh battery included in the kit? We aim to deliver true off‑grid, long‑duration performance for the MH001 nightlight. By choosing the 103450 2000 mAh lithium battery, you can enjoy over 9 hours of runtime at full brightness (0.8 W), easily meeting your overnight lighting needs. At 50% brightness (0.3 W), the battery provides up to 24 hours of continuous operation—and thanks to its high demand, this battery type also offers the lowest cost per watt-hour among comparable models.

• My lamp base design differs from the official design and lacks a bottom opening: Simply download the “Hole Puncher” model from the original design and load it into Bambu Studio as a negative part to create the necessary cutouts.



• I’d like to move the switch to the side of the nightlight base: Use the Negative Part feature in your preferred nightlight design to add a 4.2 mm diameter hole to the side wall, allowing you to securely mount the touch switch.
• My USB-C cable is too long—or I have a shorter, L‑shaped side‑entry cable: Download the Fusion 360 source file and adjust the height of the main frame accordingly.

Purchasing Guide (for mainland China online shopping):

• The LW2794 kit is available with free shipping for individual units (including the standard 400 mAh battery): https://e.tb.cn/h.SvUJAp5HsWfyZYE?tk=BGmMfOXPY7O



• For bulk purchases of individual components on 1688 (battery sold separately): https://qr.1688.com/s/OnP1MlJu



• Battery options for 1800/2000 mAh capacity—103450 batteries (ask your supplier to add terminals; the terminal type is PH2.0 reverse—just one or two samples will do if you’d like to test them out first!).

  Sample batteries are available for free: https://qr.1688.com/s/R8yiVzsJ

  High-quality packaging available: https://qr.1688.com/s/nrAAHUWn
