RC car and model airplane 18650-2S battery pack housing, with Velcro fastening panel.
Print Profile(2)
  • 0.2 mm layer height, 2‑wall walls, 15% infill density

    1-disc

    PLA

    Designer
  • 0.2 mm layer height, 2‑wall walls, 15% infill density

    1-disc

    PLA

    Designer

0

1

14

0

Released 2026-07-01
Details
Files(2)
Makes & Comments (0)

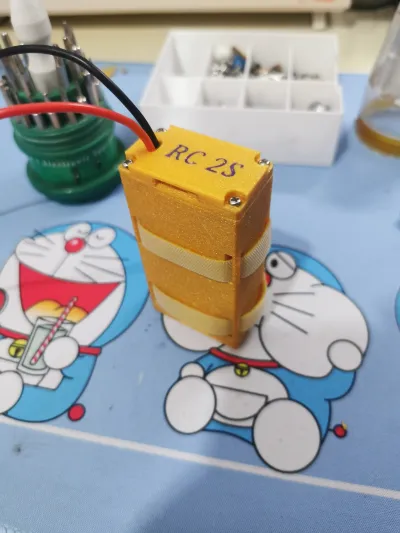

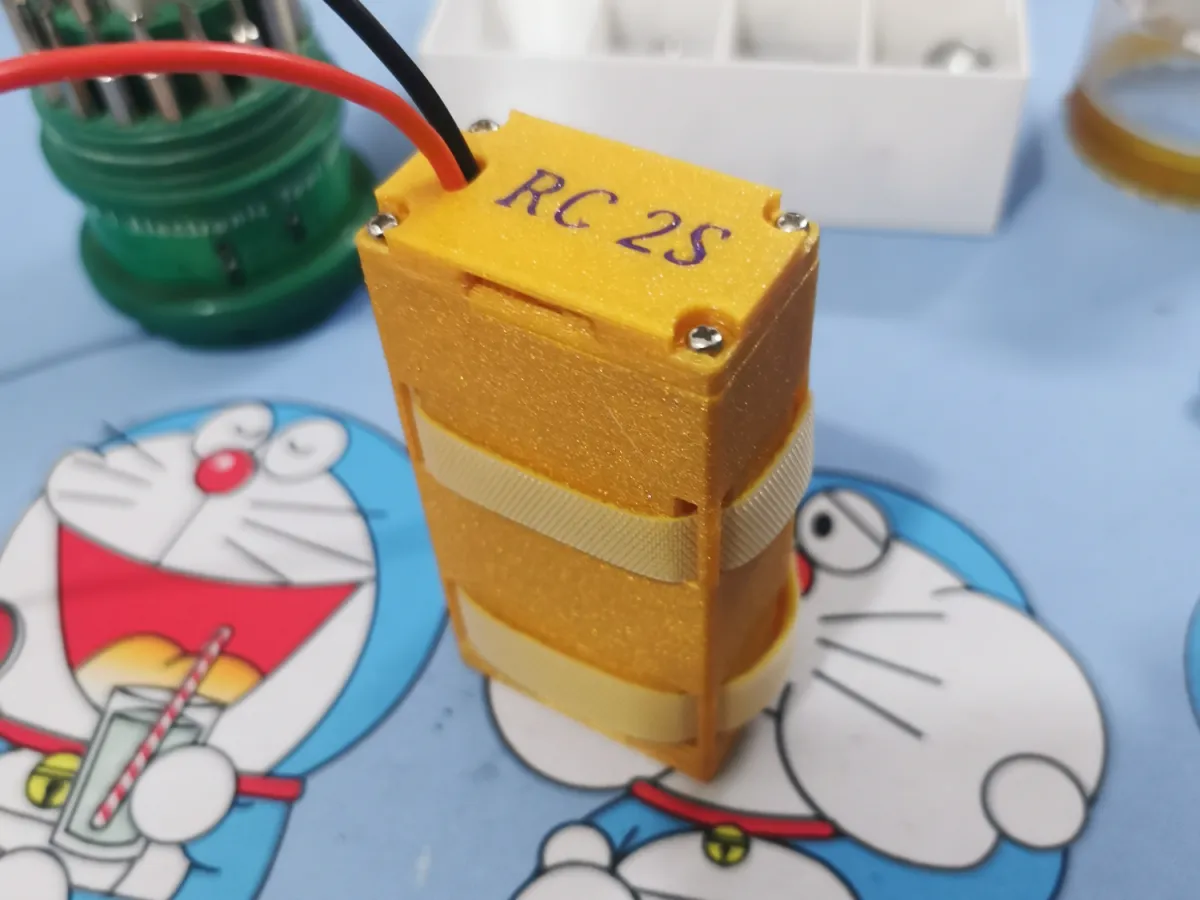

          Battery pack housing designed based on RC car and drone models



        Basic information;

        Supports securing the battery pack to the RC car or drone’s battery compartment using Velcro straps * (holes are drilled around the Velcro strap slots for enhanced PETG print strength)

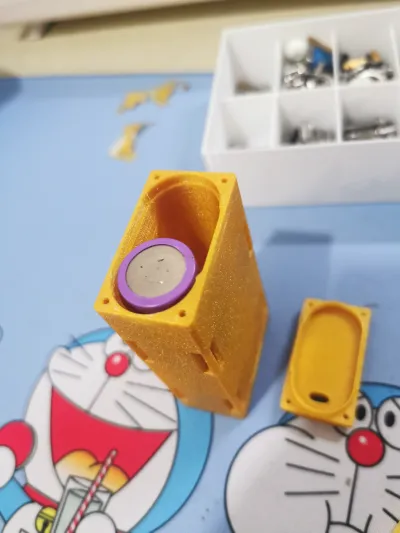

        Internal volume can accommodate two 18650 cells, with flexible series‑parallel configurations

        Features an internal recessed surface designed to hold larger, thicker 1‑2S lithium battery protection boards

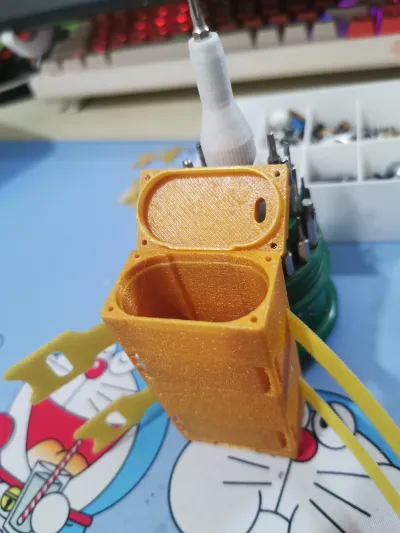

        The nested assembly structure allows for sealing with adhesive such as 704, providing a degree of water resistance (Note: wire harness outlets must also be sealed with adhesive)

        Two versions differ in cable exit locations—choose according to your preference

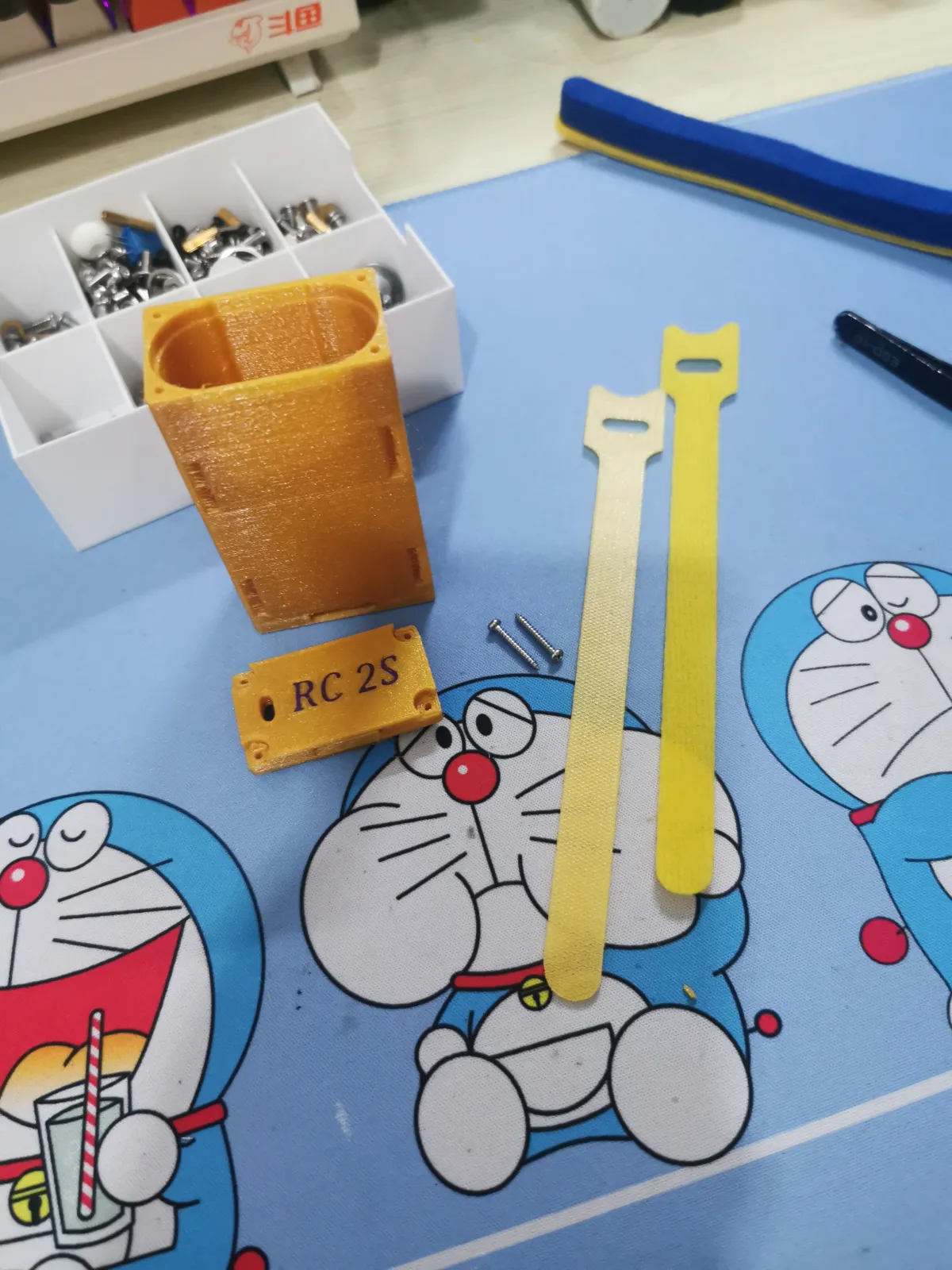

        Assembly requires four M2 self‑tapping screws, several Velcro straps, and waterproofing materials such as 704 silicone rubber if needed



        Note: We recommend printing with PETG filament, which offers superior strength compared to PLA











Bill of materials

  • Name
    Quantity
    Notes
  • 1
    1-2S锂电池保护板
    1
    任选其一
  • 2
    M2*10自攻螺丝
    4
  • 3
    18650
    2
    电芯
  • 4
    魔术带
    2
    12mm内
  • 5
    704等胶水
    1
    如需防水
