Telescopic mechanism
Linkage mechanism
Cam structure
Cross-shaped synchronous telescoping structure
Mechanical Structure
Cross-slide table plate
- 0.2 mm layer height, 2‑wall walls, 15% infill density
1-disc
PETG
Designer
9
2

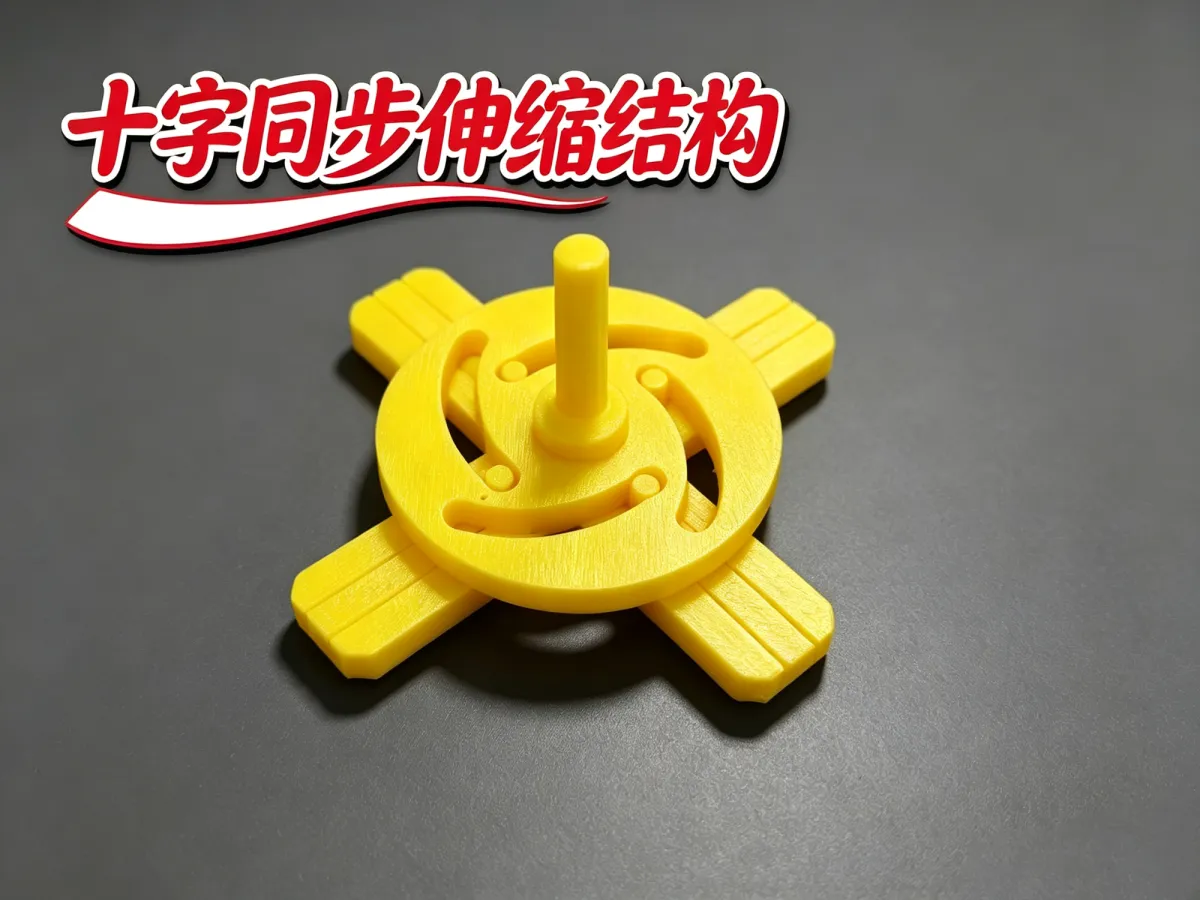

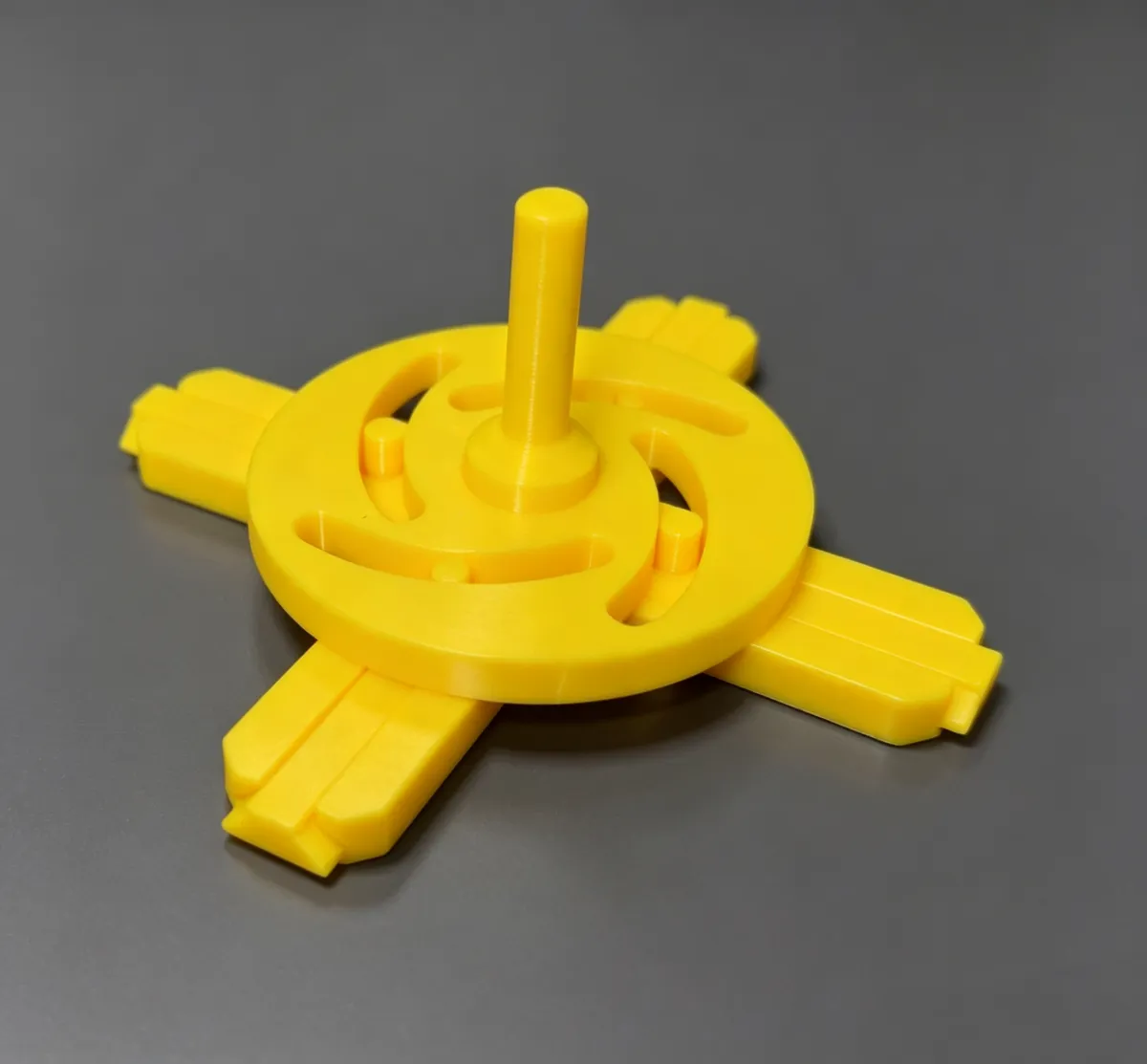

A classic cam-linkage transmission mechanism: rotating the central spindle causes four sliders to extend and retract in perfect synchronization.

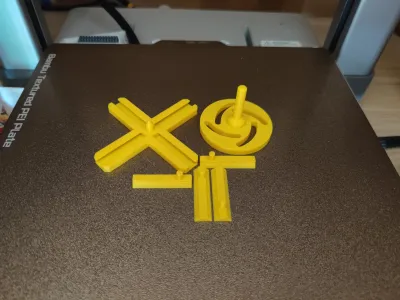

The model is designed for additive manufacturing in multiple parts, which can be easily assembled after printing; appropriate assembly clearances are provided to ensure smooth and seamless operation.
No complex tools are required, making assembly straightforward. This makes it ideal for intuitively exploring the principles of cam-based synchronous motion—serving as both an educational tool and a desktop mechanical stress-relief ornament, allowing you to experience the unique charm of mechanical linkage.
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
Credit must be given to the creator
Only noncommercial uses of the work are permitted
Remixes must be shared under the same license
