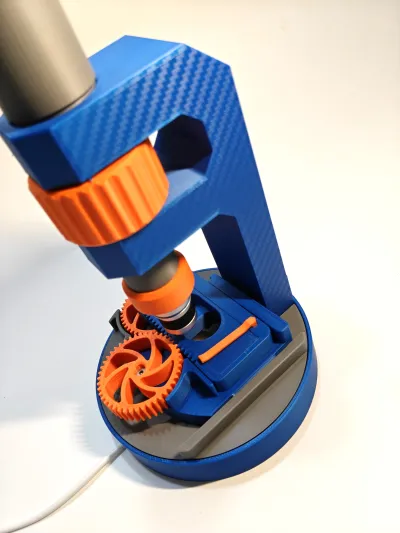

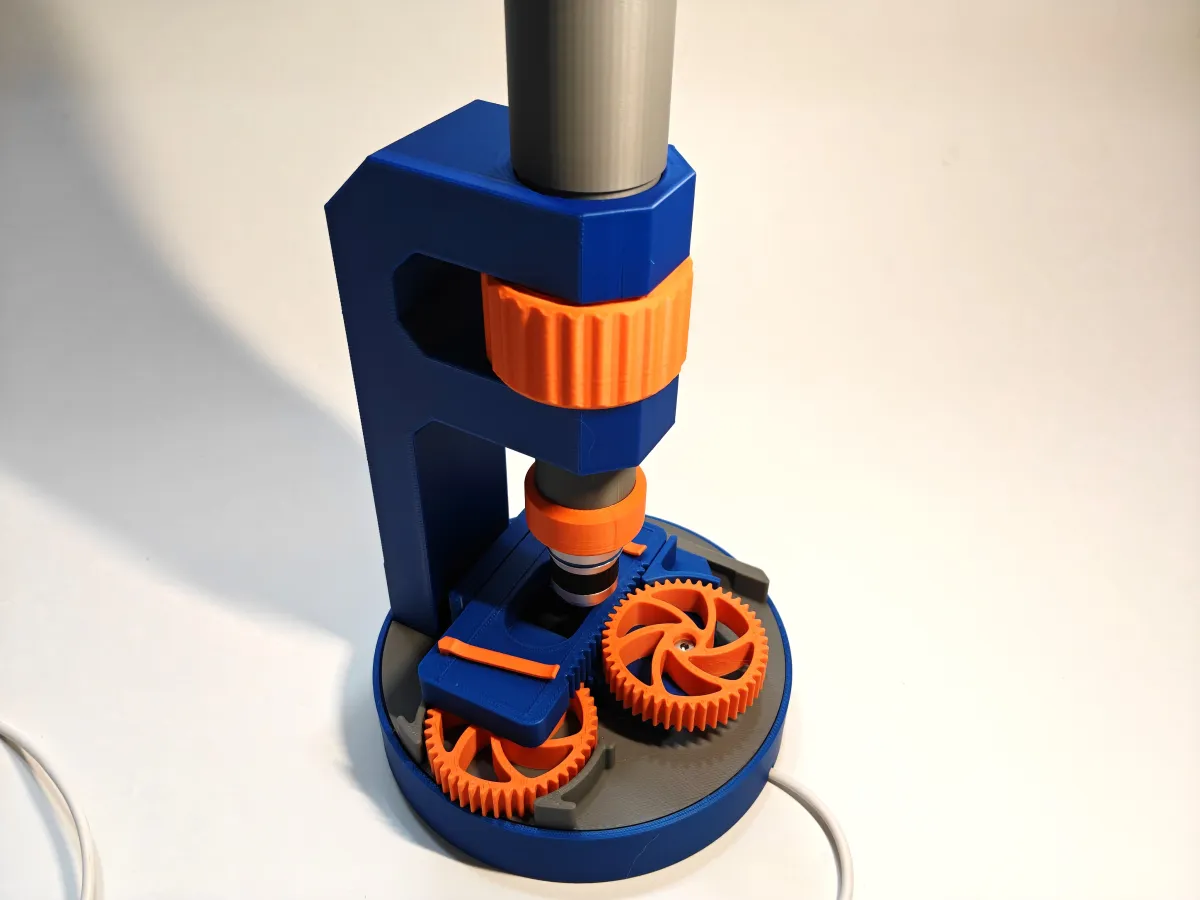

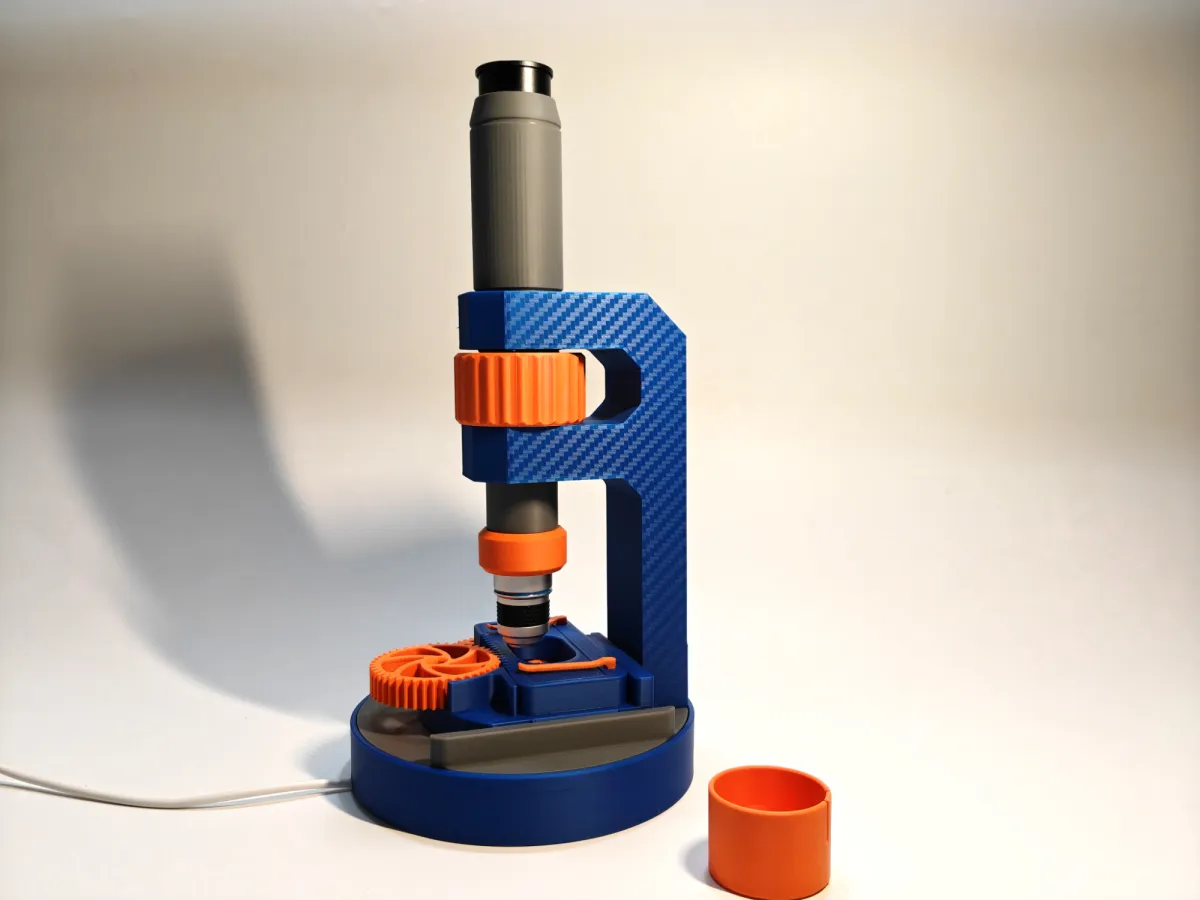

A microscope with a minimalist design

Dimensions after assembly: approximately 238 × 125 × 125 mm

• Equipped with an H10 eyepiece featuring a 23.2 mm interface and a 40× objective lens of type 185 with a 20.2 mm interface
• Focusing knob for adjusting the focal length
• Slide holder
• Movable stage
• Easily attachable objectives and protective housing for the eyepiece

Usage tips

The working distance of the 40× objective is only 0.53 mm, so please turn the focusing knob patiently to achieve a clear focus.

Safety Notice

1. Do not look directly at strong light sources for extended periods,especially children and adolescents,it is recommended to observe through a smartphone camera displaying the image on the screen.

2. Handle slides and coverslips carefully to avoid scratches or damage.

The following items are not included in the 3D-printed kit:

1. Three M3 × 12 flat-head screws

2. One H10 eyepiece and one 40× objective lens

3. A 60 mm diameter LED light (e.g., the Tuzhu MH001)

4. Coverslips measuring 20 × 20 mm and slides measuring 25.4 × 76.2 mm

Assembly instructions are as follows:
