3D-Printed Roll Paper Dispenser

I. Main Applications

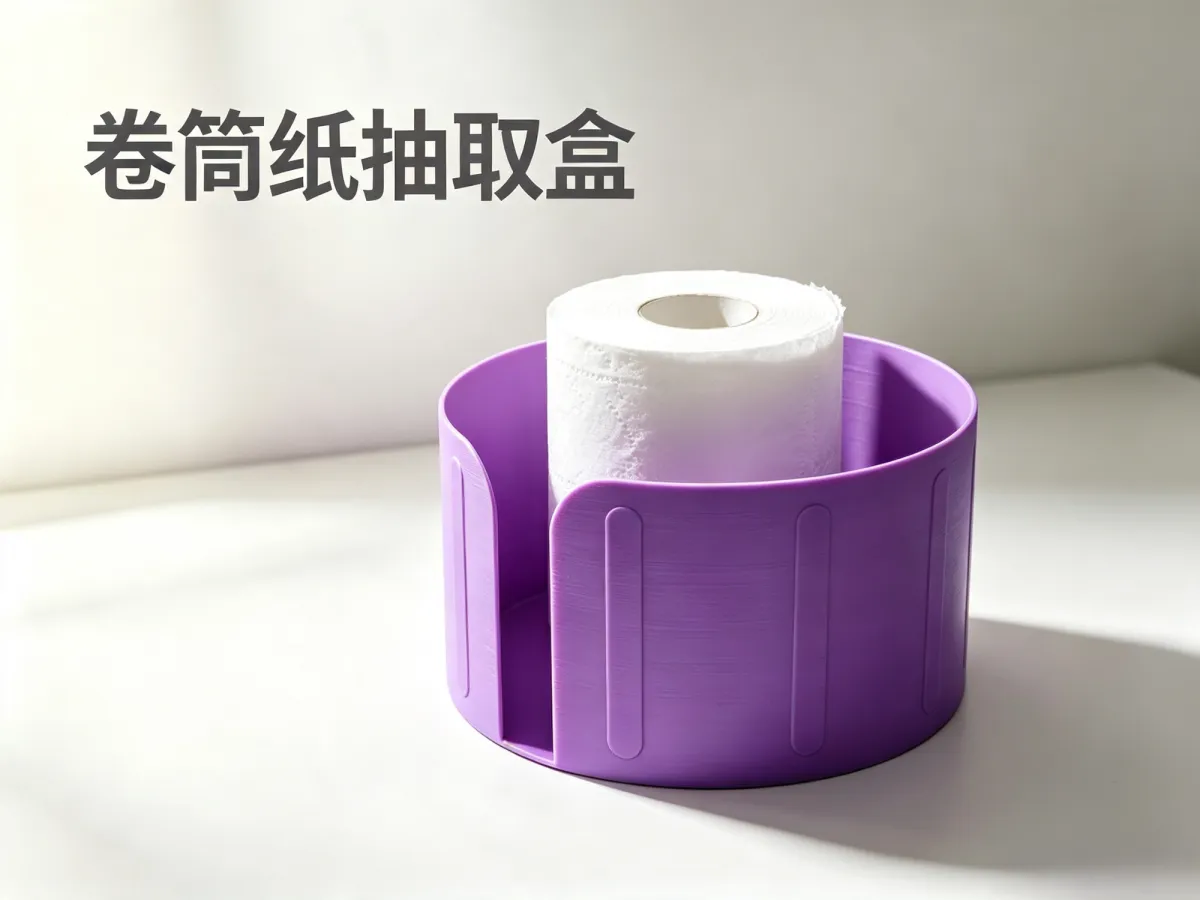

This is a desktop, upright roll paper organizer and dispenser, ideal for storing small kitchen paper rolls, desk hand‑towel rolls, makeup‑removal cotton pads, hair‑drying paper rolls, and more. It can be placed on dining tables, desks, dressing tables, or bar counters, neatly organizing your paper rolls while allowing you to pull out paper directly through the front opening—preventing rolls from rolling around, collecting dust, or becoming messy.

II. Key Design Features

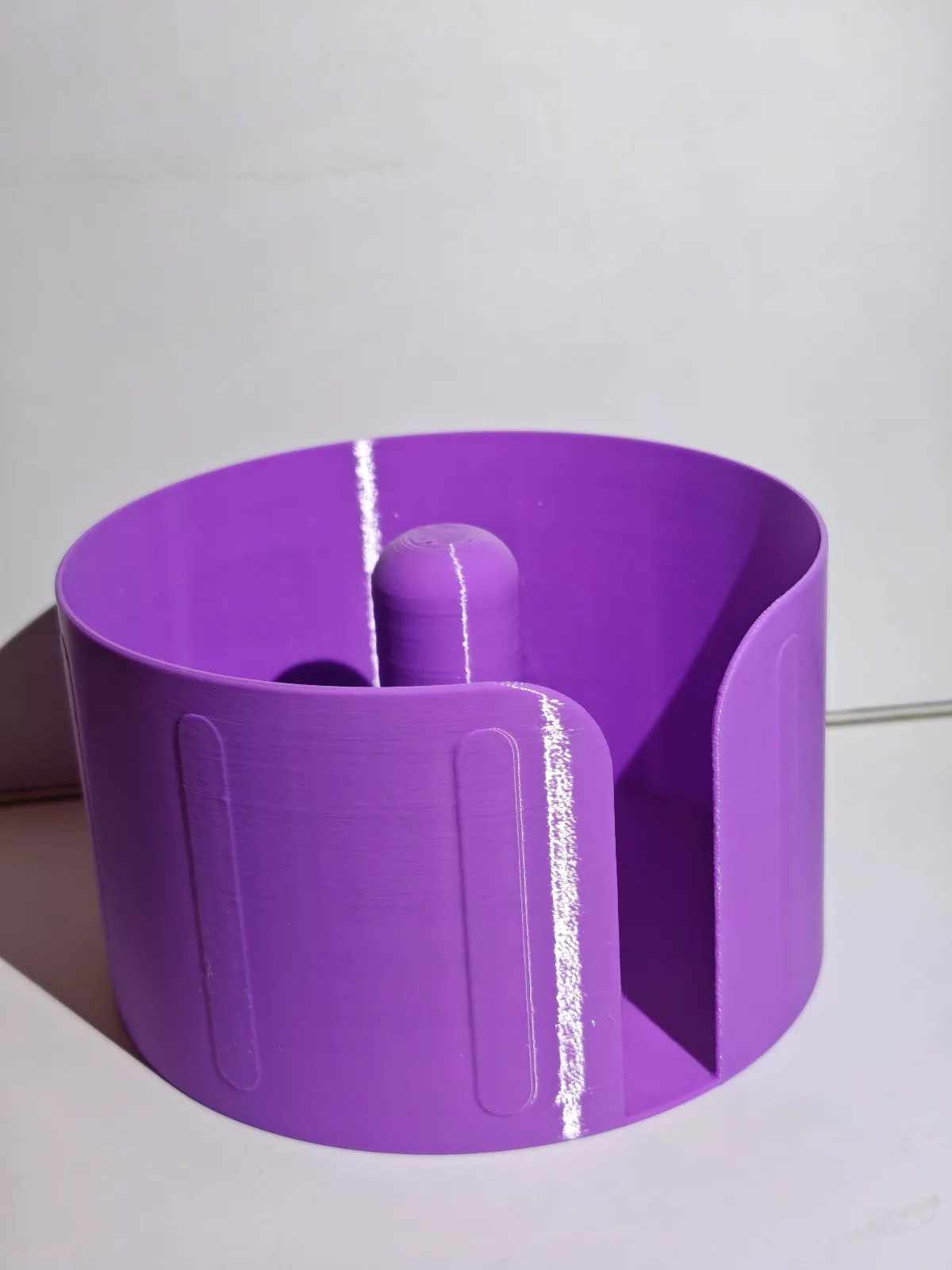

1. The central positioning post features a raised cylindrical core that fits snugly into the inner bore of the paper roll, securely holding the roll in place. When pulling out paper, the roll rotates only with the applied force, without shifting, tipping over, or being pulled out entirely, ensuring smooth, snag‑free dispensing.

2. A front‑facing slot provides direct access to the paper; users can easily pull out tissue without lifting the entire container. The surrounding cylindrical guard helps shield the sides of the roll, reducing dust accumulation and maintaining a cleaner appearance.

3. Reinforcing ribs on the exterior create vertical grooves along the outer wall, enhancing structural rigidity without significantly increasing material usage. This design prevents deformation under pressure and adds visual depth to the overall form.

4. A full‑circumference cylindrical guard encircles the roll, providing all‑around protection. Everyday bumps and knocks are less likely to dislodge the roll, offering far greater stability than simply placing the roll directly on a surface.

III. 3D Printing Process Highlights

1. Material Characteristics: The finished product is printed using purple PLA filament, delivering a matte texture. At room temperature, it exhibits sufficient hardness, forming a seamless, one‑piece structure that’s easy to clean and maintain. PLA is also cost‑effective and accessible, enabling single‑piece production without the need for molds.

2. Cost Efficiency: The hollow cylindrical design minimizes material usage, resulting in shorter print times. This makes it an economical choice for personal use or small‑batch customization.

IV. Summary of Advantages and Limitations

Advantages

• The central axis keeps the roll securely in place, preventing misalignment or tipping during use and ensuring smooth dispensing.

• The circular guard protects against dust and impacts, keeping the desktop tidier.

• Reinforced structural design enhances durability, making the housing resistant to deformation.

• Customizable dimensions and styles accommodate various standard roll sizes.

Limitations

• PLA has limited heat resistance; prolonged exposure to high temperatures near stovetops or direct sunlight may cause softening.

• The raw printed surface may exhibit subtle layer lines; those seeking ultra‑smooth finishes can opt for post‑processing polishing.
