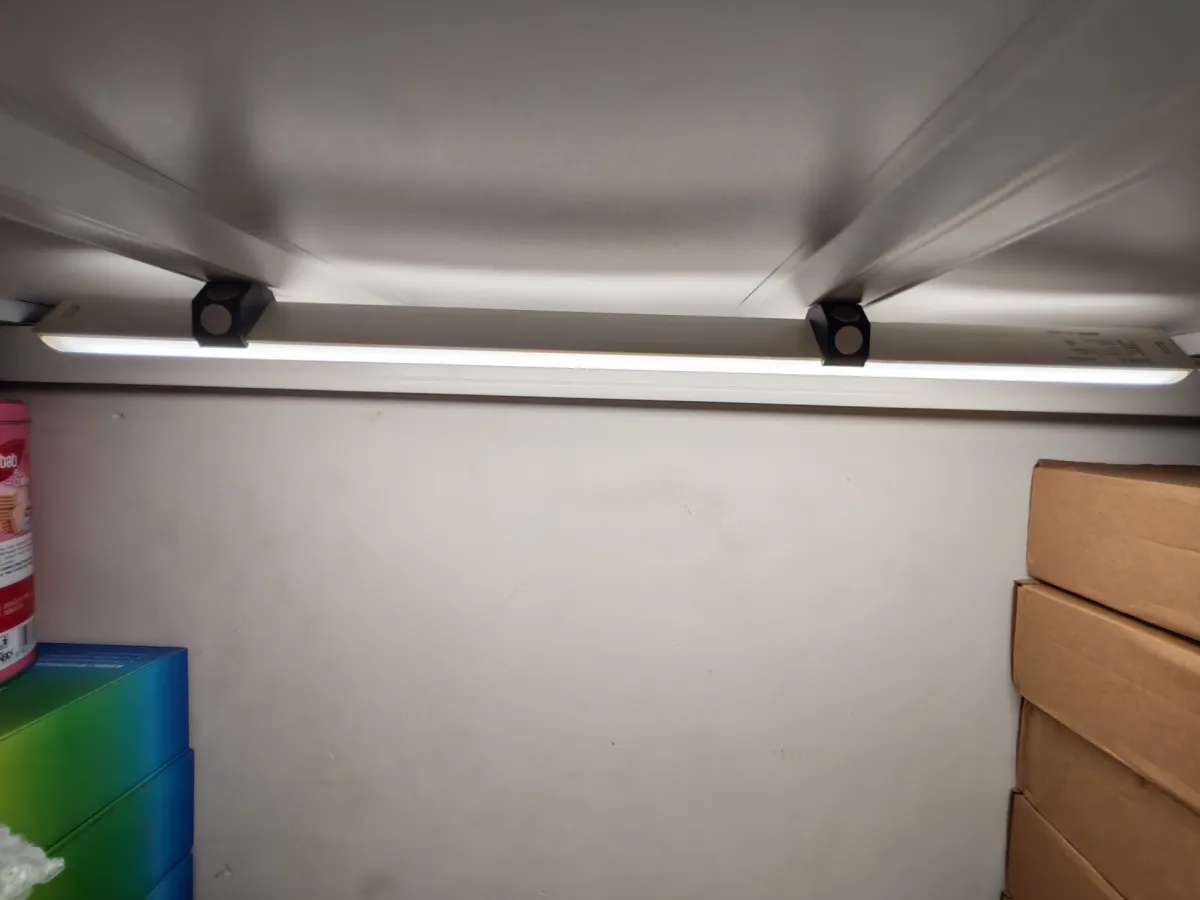

This model is a four‑angle magnetic lamp holder, compatible with lamp posts 22 mm wide.
Since the lamp post I purchased only comes with a bracket that directs light vertically, in certain everyday situations direct exposure to the light source can be uncomfortable. Therefore, I planned to design a bracket that avoids direct line‑of‑sight to the light. However, the original design contained many unnecessary areas, so I refined it to allow switching among four angles, enabling adaptation to different scenarios.

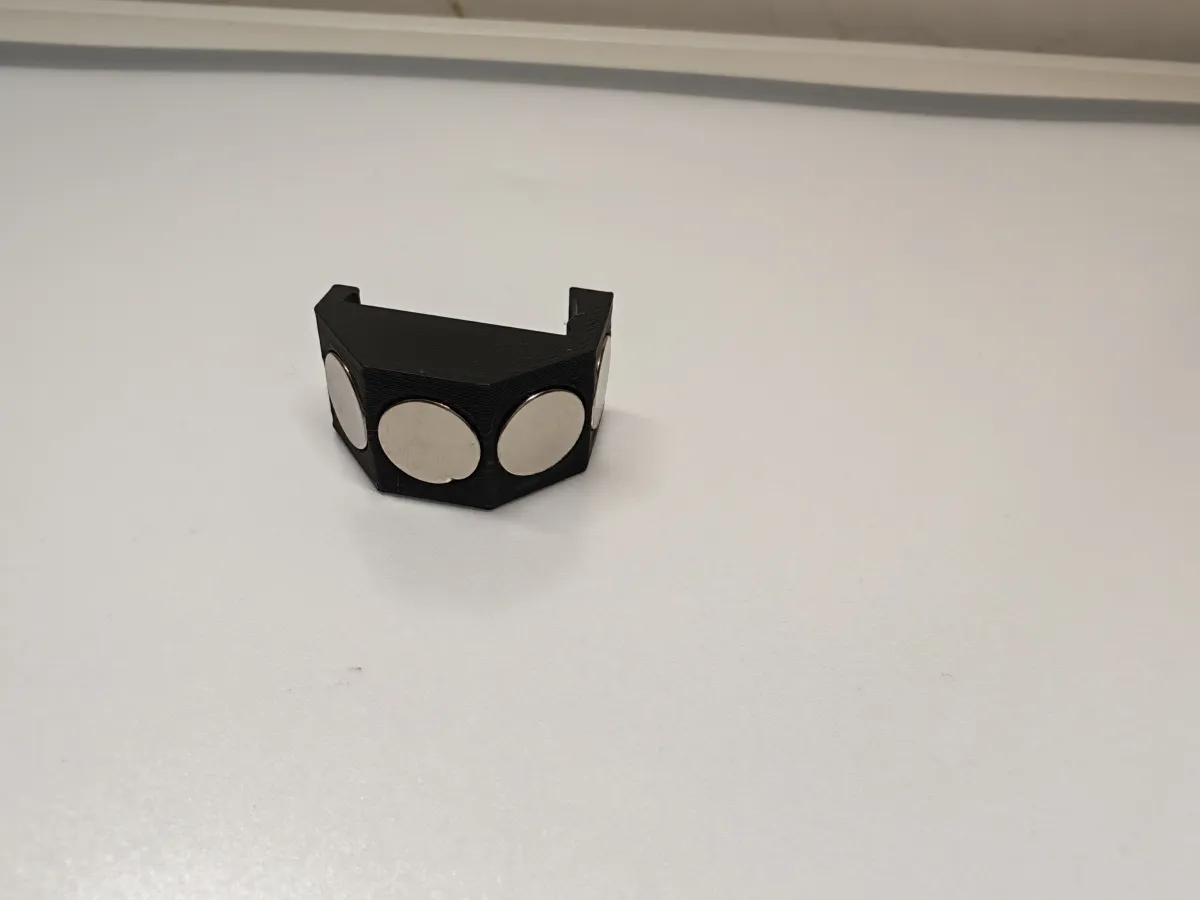

This model requires inserting eight circular magnets, each 10 mm in diameter and 1.5 mm thick. If the magnetic force proves insufficient, you can add additional modules yourself.
Feel free to download and print this design; if you have other requirements, please leave a comment.
Bill of materials
- NameQuantityNotes
- 110mm直径1.5mm厚圆形磁铁8
