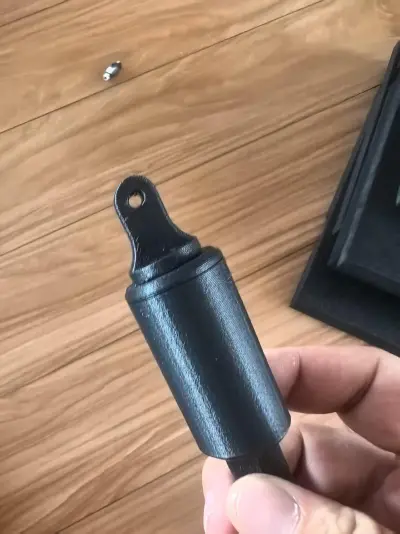

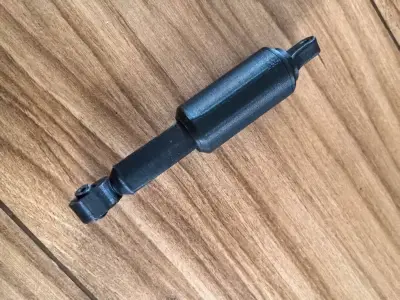

Spring shock-absorbing cylinder
Shock absorber
Mechanical parts
Moving head
Damping cylinder
Hardware components
- 0.2 mm layer height, 2‑wall walls, 5% infill density
1-disc
PLA
Designer
12
2

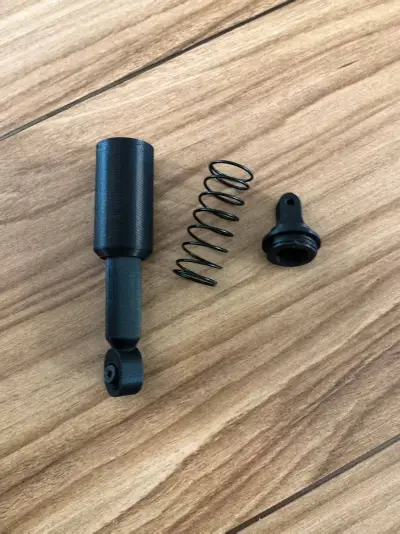

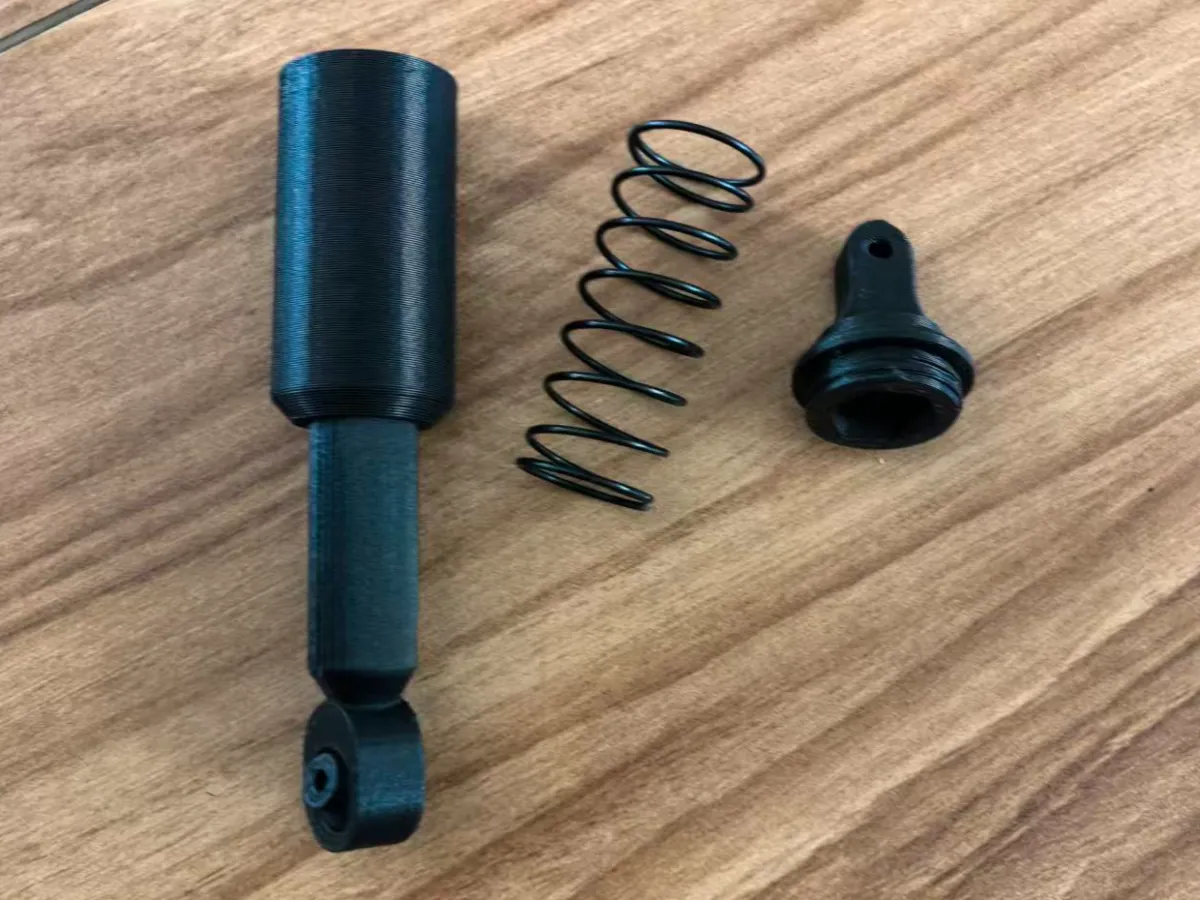

A spring-based shock-absorption model requires an internal spring with a diameter of 20 mm, a length of 55 mm, and a wire diameter of 1 mm.

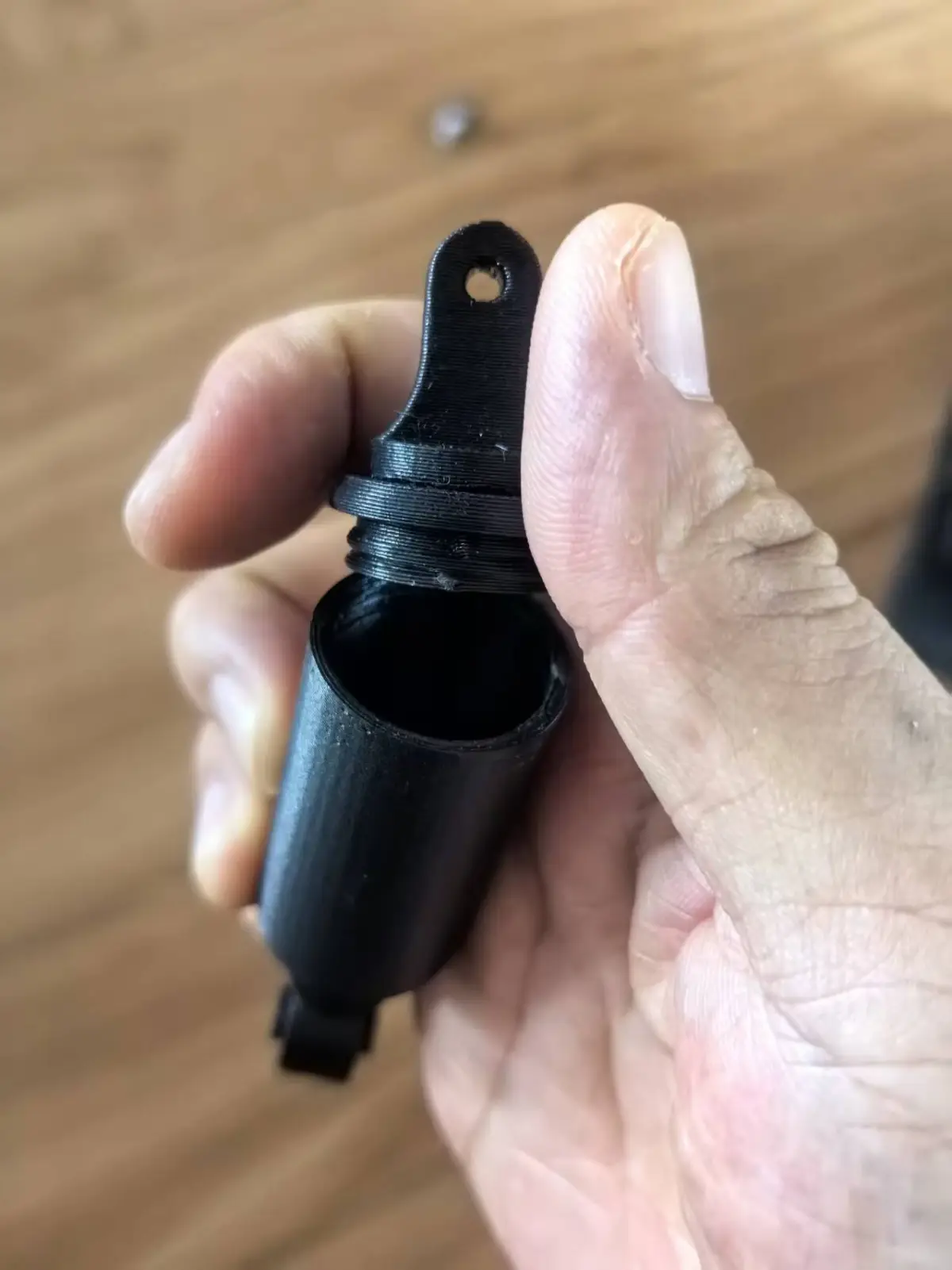

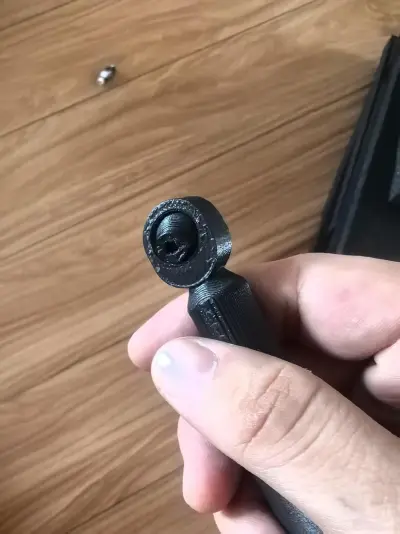

The threads are assembled using reverse threading. After assembly, apply some lubricant to the spring’s connecting rod. The head is a single-piece printed component that allows for movement; you can use carbon fiber to print it.
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
This work is licensed under a Standard Digital File License. Digital files have a strict non-commercial, personal use only license.
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital file or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including remixes of this object). You can not host these files on other digital platforms, web stores or cloud repositories. The objects may not be used in any way whatsoever in which you charge money, collect fees.
