- 0.2 mm layer height, 2‑wall walls, 15% infill density
1-disc
PLA
Designer
9
4
Original design by Meng Ye Guo Shou

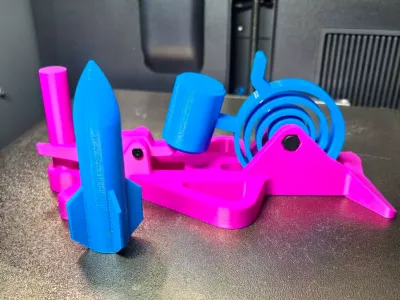

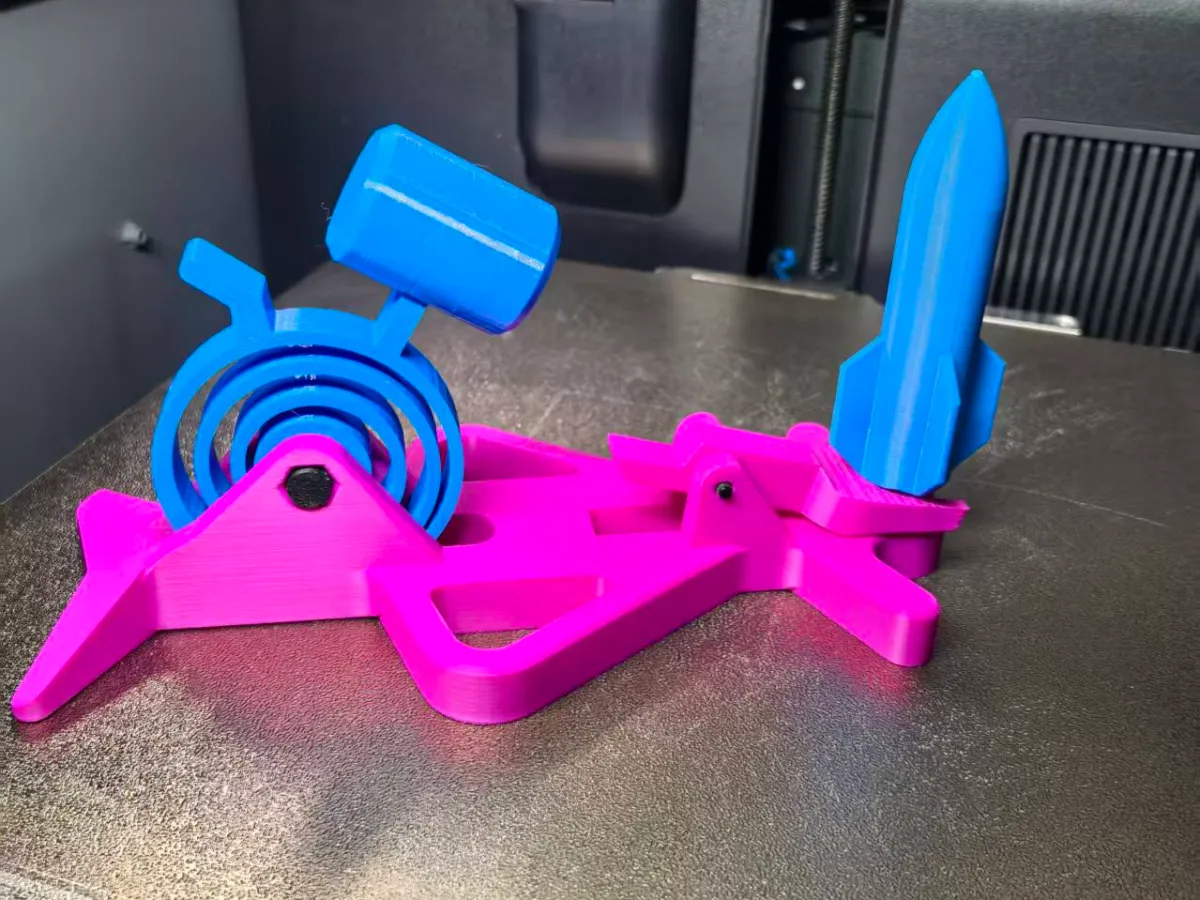

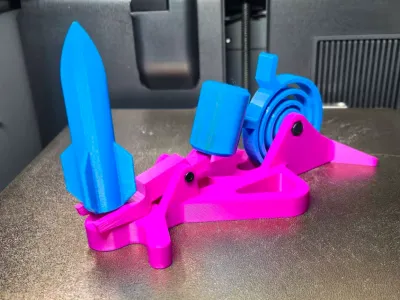

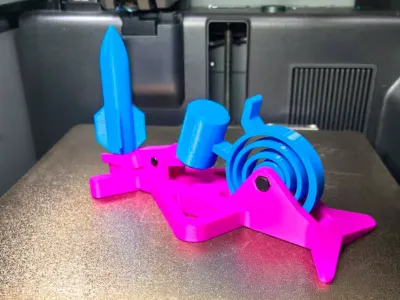

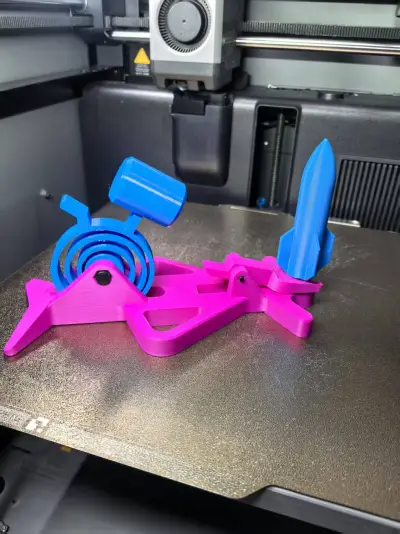

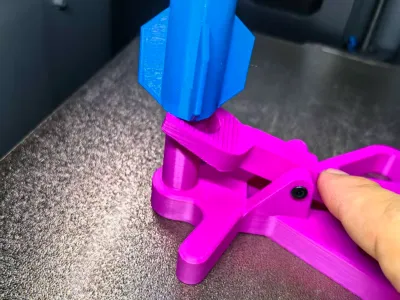

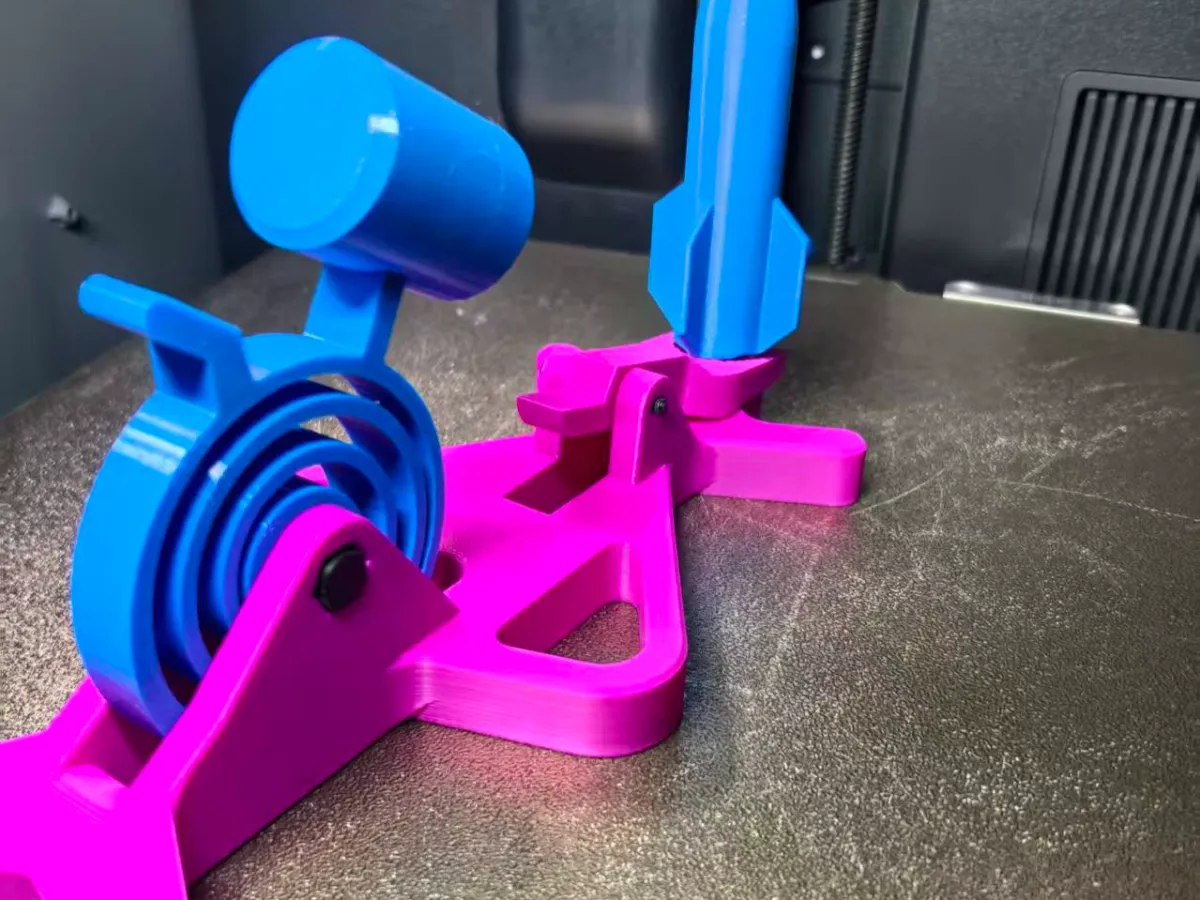

The model is fairly straightforward, requiring no supports. It uses a screw to secure the front launcher; when you press down on the spring-loaded catch and release it, a small hammer strikes a lever at the front, launching the missile upward. Note that this missile is relatively heavy and doesn’t fly very high—alternatively, you can replace it with sponge bullets.
We recommend printing this model using PETG filament.
