  • Blade

  • 3D printing accessories

Blade – Requires a thermal sleeve.
Print Profile(1)
  • 0.2 mm layer height, 2‑wall walls, 15% infill density

    1-disc

    PLA

    Designer

0

0

21

2

Released 2026-01-15
Details
Files(3)
Makes & Comments (0)

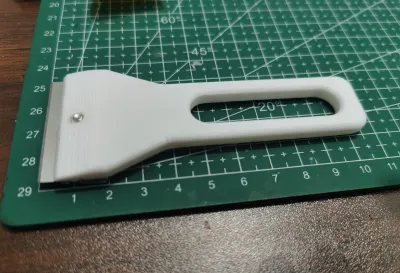

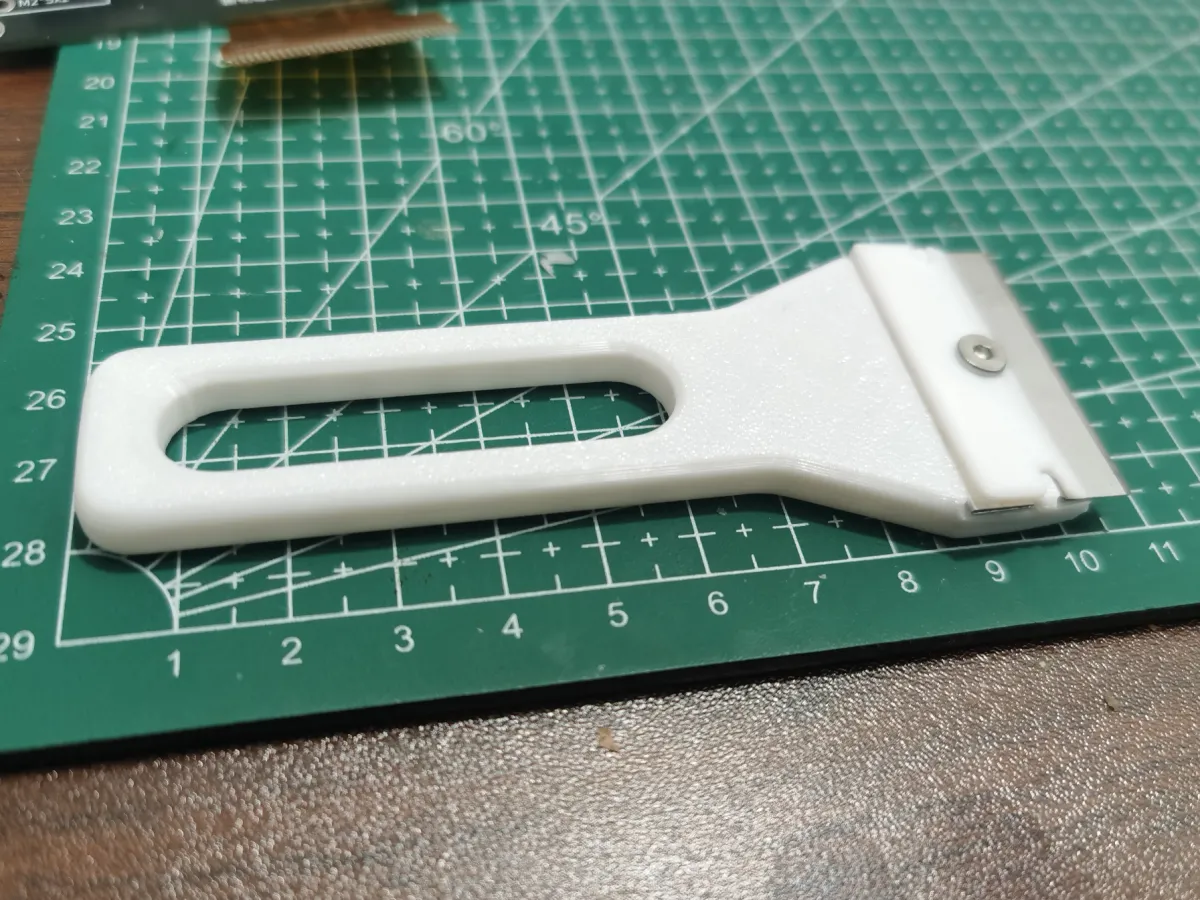

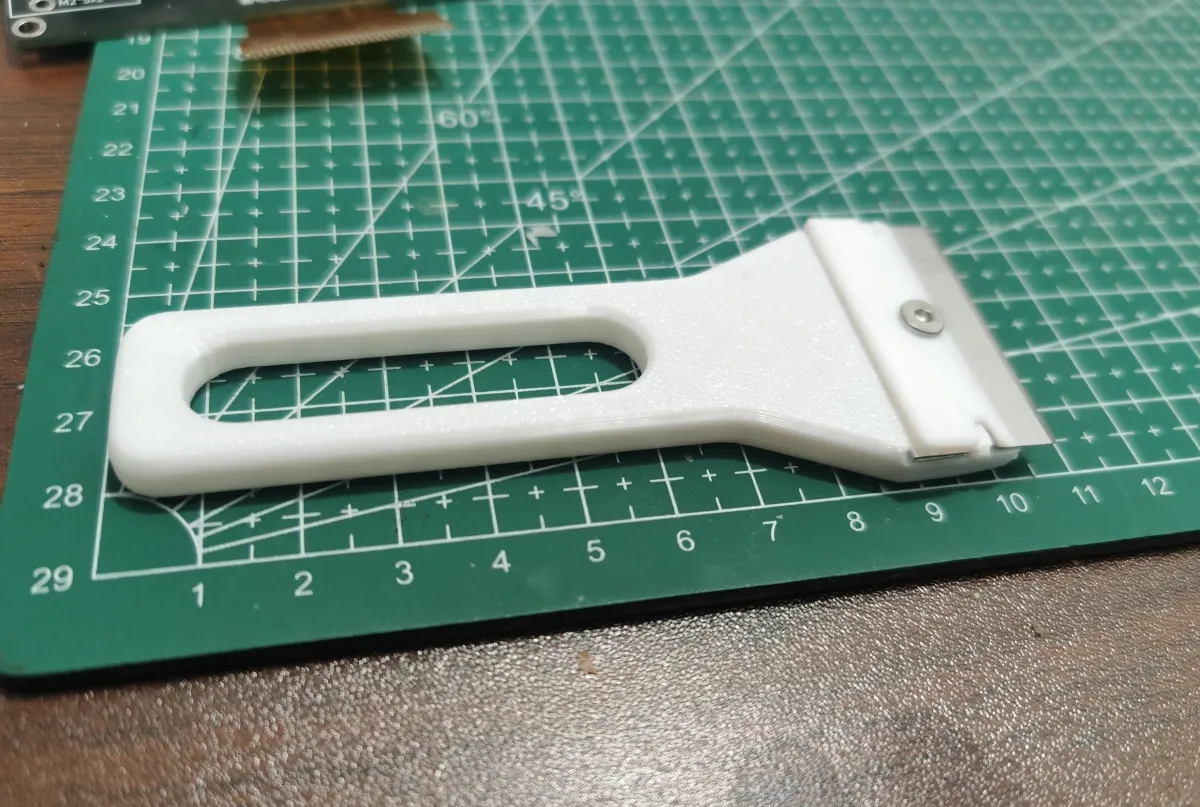

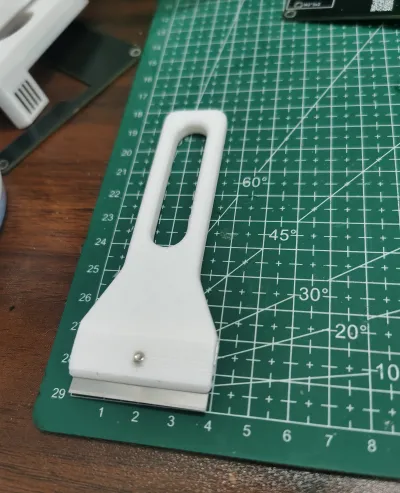

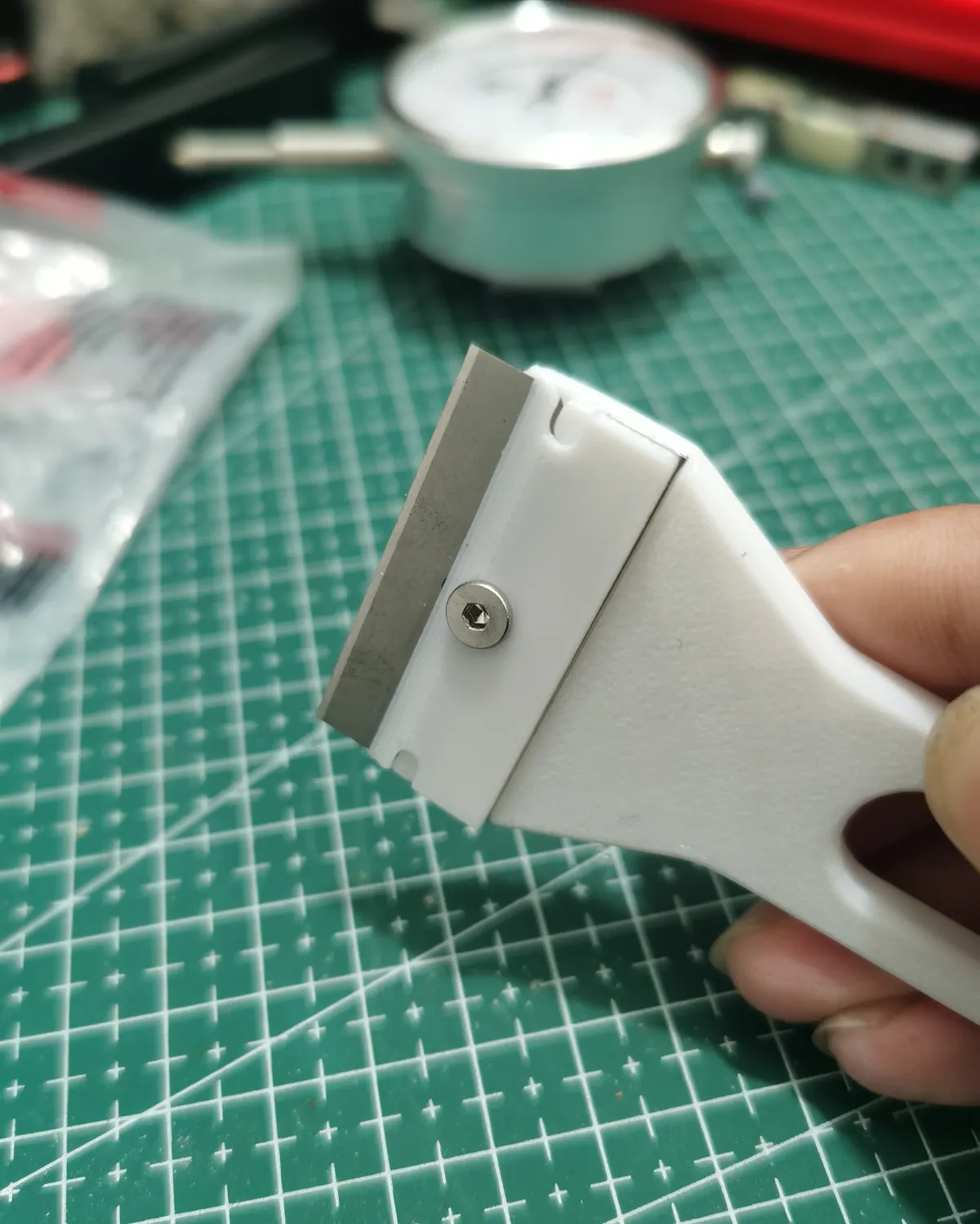

The impetus came from the fact that a blade was included in the screen replacement kit for smartphones—yet it seems that very few people have created corresponding adaptive models for this blade. So we proceeded to develop the model.

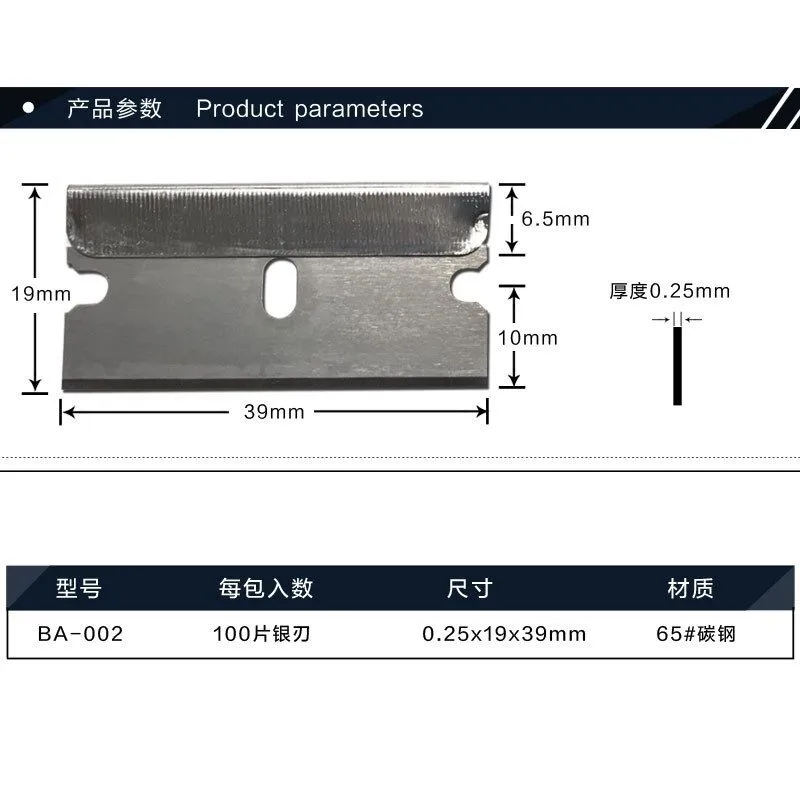

Blade Dimension Diagram:


Note: When modeling, the blade’s thickness does not account for the blade’s edge wrapping; the actual measured thickness is around 1 mm.



We recommend using ABS for printing whenever possible. If you choose to print with PLA or PETG, we suggest keeping the soldering iron tip temperature below 220°C and applying gentle heat pressing to prevent clogging or warping—as shown in the figure:


Bill of materials

  • Name
    Quantity
    Notes
  • 1

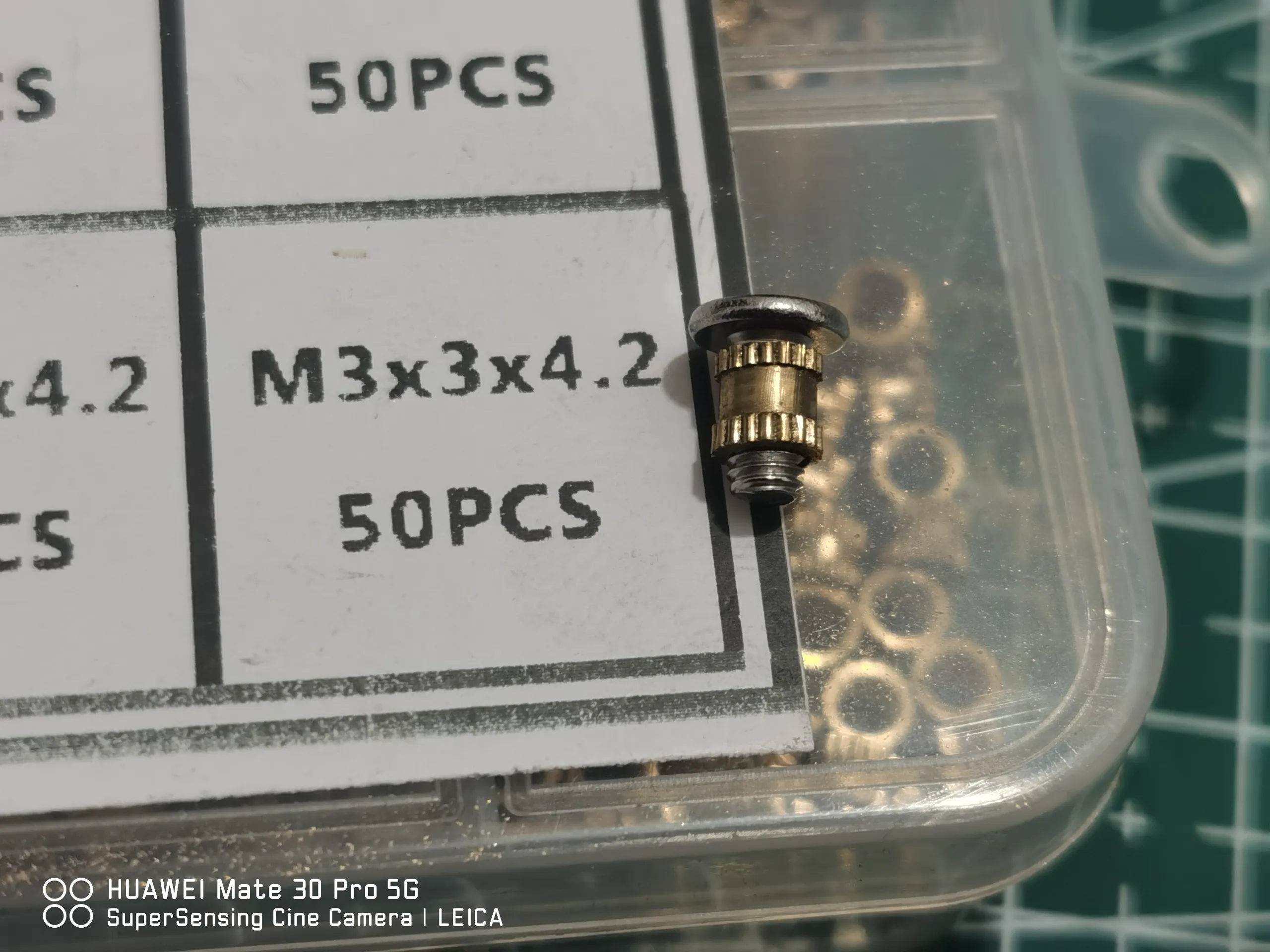

    m3X3mm热熔螺母
    1
  • 2
    m3X5mm平头螺丝
    1

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Remixes must be shared under the same license

Models(3)

  • model file image
    铲刀.3mfDesigner

    223.46 KB

    2026-01-15

  • model file image
    铲刀.stpDesigner

    88.62 KB

    2026-01-15

  • model file image
    铲刀-2.stpDesigner

    31.82 KB

    2026-01-15
