Quick-Release Filament Spool Holder for 608 Bearings

Quick-Release Filament Spool Holder for 608 Bearings

This is a modular quick-release filament spool holder optimized for desktop 3D printing, compatible with standard 608 bearing designs to deliver low-friction rotation and rapid assembly/disassembly.

✨ Key Features

⚙️ Quick-Release Design
The roller assembly uses a snap-fit mounting method, allowing tool-free, fast removal and installation for easy material changes or maintenance.

🧲 Standard 608 Bearing Compatibility
Both ends feature standard 608 bearings (8×22×7 mm), ensuring smooth rolling, high durability, and easy availability for replacement on the market.

🪶 Lightweight Construction (~80 g per unit)

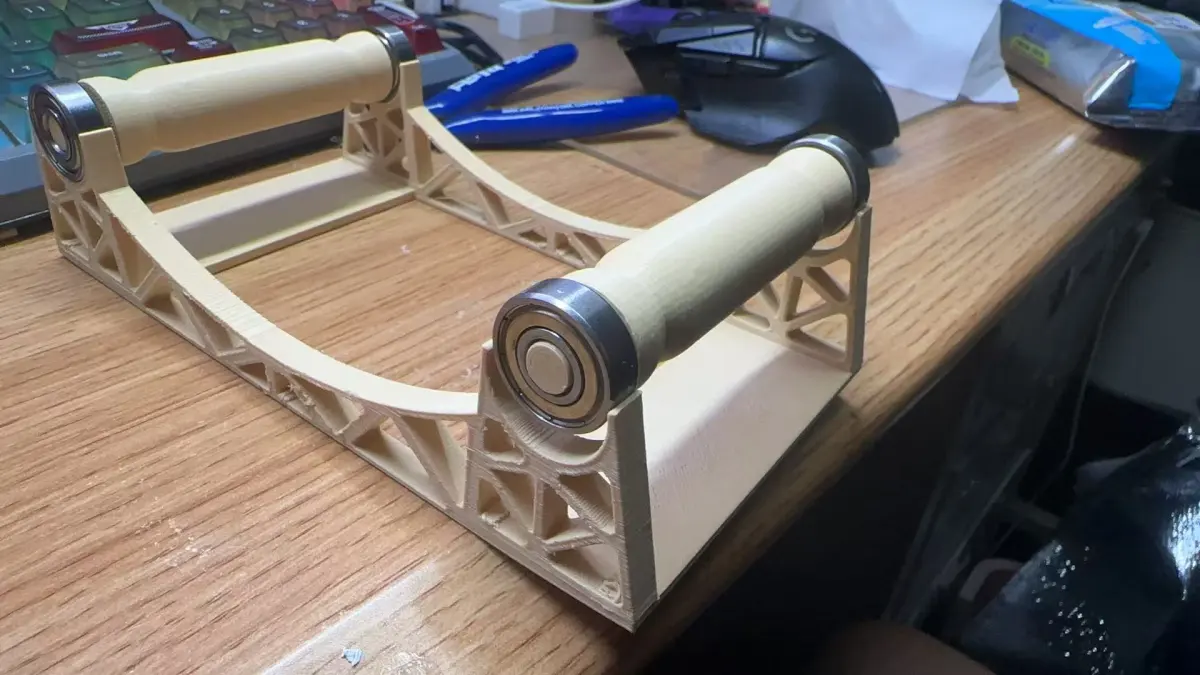

Employing topology-optimized triangular truss structures, this design achieves significant weight reduction while maintaining structural strength.

📦 High-Efficiency Printing Design
A single spool can produce two holders, making it ideal for batch production or use in 3D printing farms.

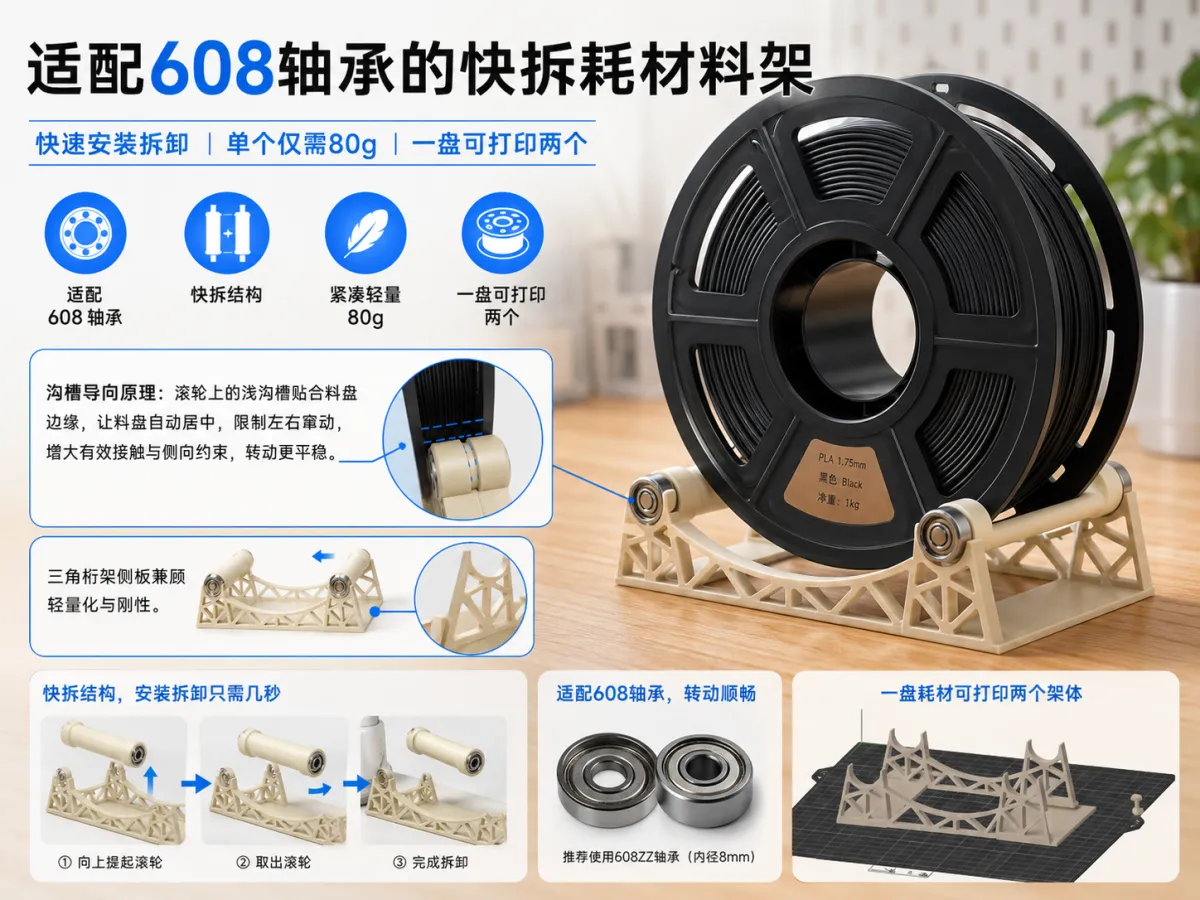

🧠 Guiding Stability Principle

The roller incorporates a shallow guiding groove that engages with the inner edge of the filament spool during operation:

• Automatically centers the spool
• Restricts lateral axial movement
• Enhances extrusion stability
• Reduces operational noise and friction fluctuations

This structure achieves passive centering and stabilization without adding extra components.

🏗️ Structural Design Highlights

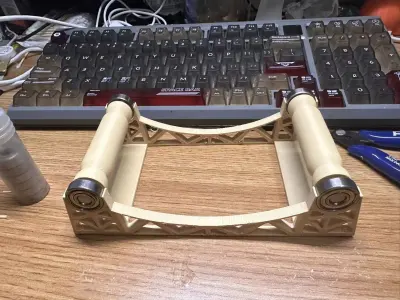

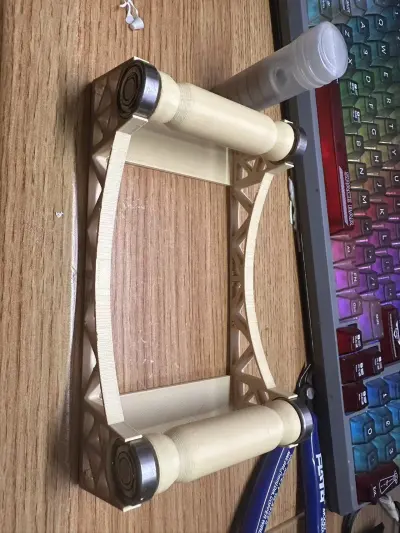

• Triangular truss side panels: high rigidity with minimal material usage
• Dual-bearing support: reduces frictional resistance
• Quick-release roller system: streamlines maintenance and filament replacement
• Modular design: adaptable to various spool sizes

🧰 Installation Instructions

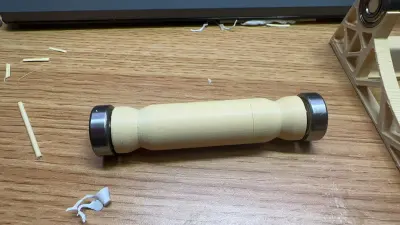

1. Press the 608 bearings into both ends of the roller.
2. Slide the roller into the holder’s slot until you hear a “click” indicating secure locking.

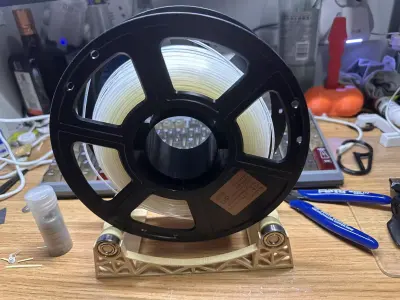

3. Place your filament spool inside and begin printing.

📌 Applicable Scenarios

• 3D printing studios
• External feeding systems for AMS/drying chambers
• Batch filament supply racks for printing farms
• Desktop-level lightweight filament management
