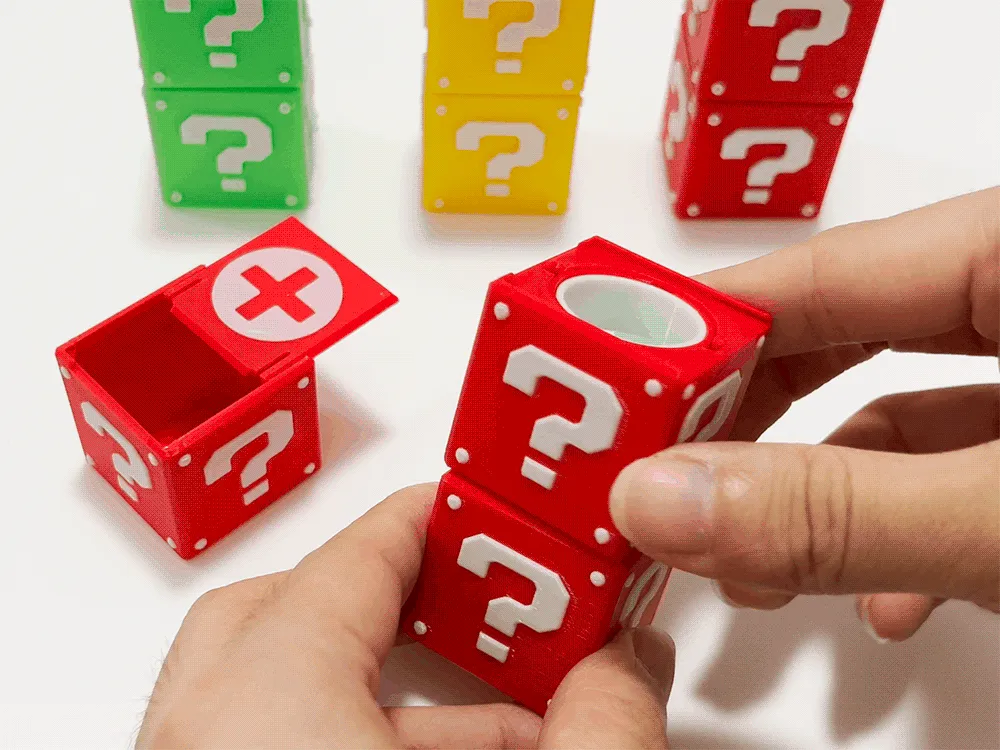

Travel-Size Portable Medicine Box (Small Item Organizer)

  • External dimensions: 3.5 cm × 3.5 cm × 7.5 cm; Compact and highly portable

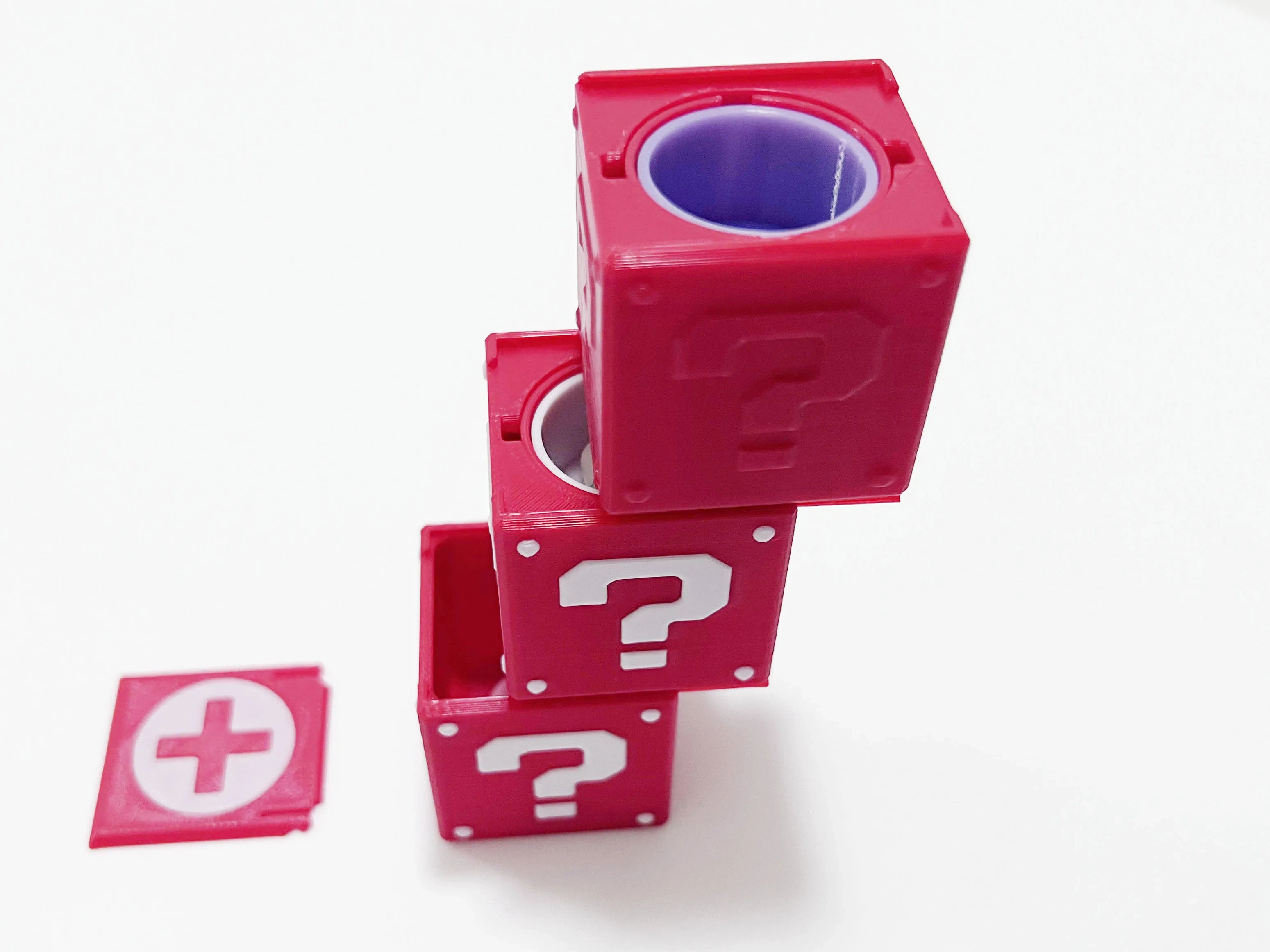

  • Multi-layer design allows for infinite stacking—easily expandable to 3, 4, or even more layers.

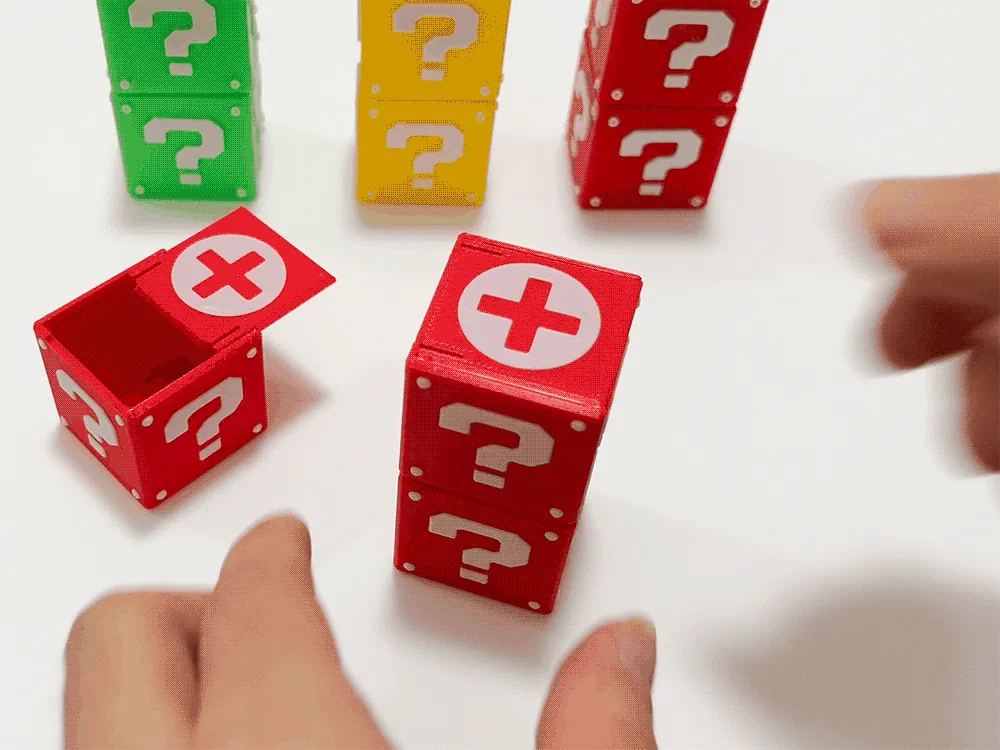

  • Simply twist the box to extend it outward.

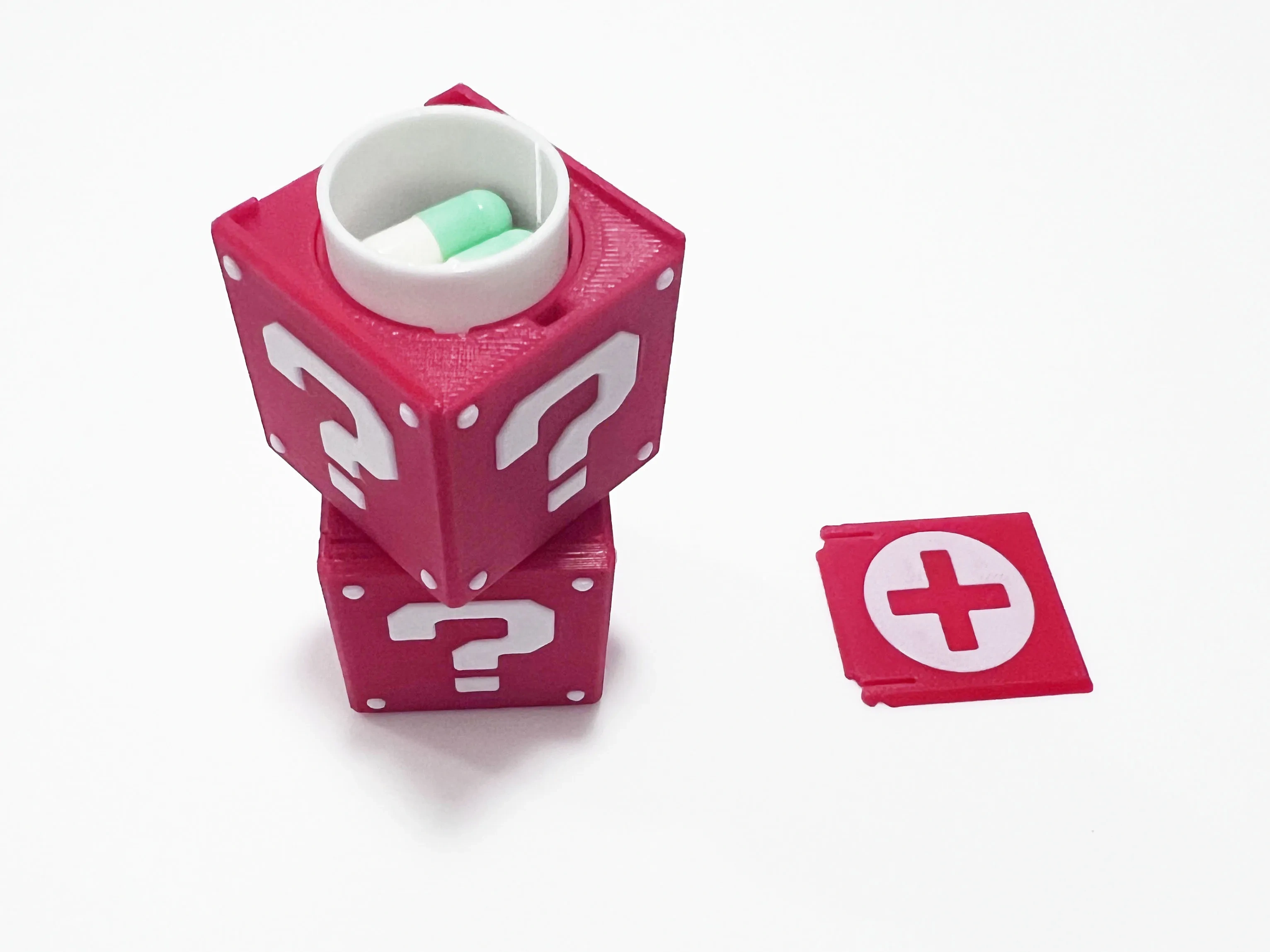

  • Sliding lid provides effortless access for loading and storing items.

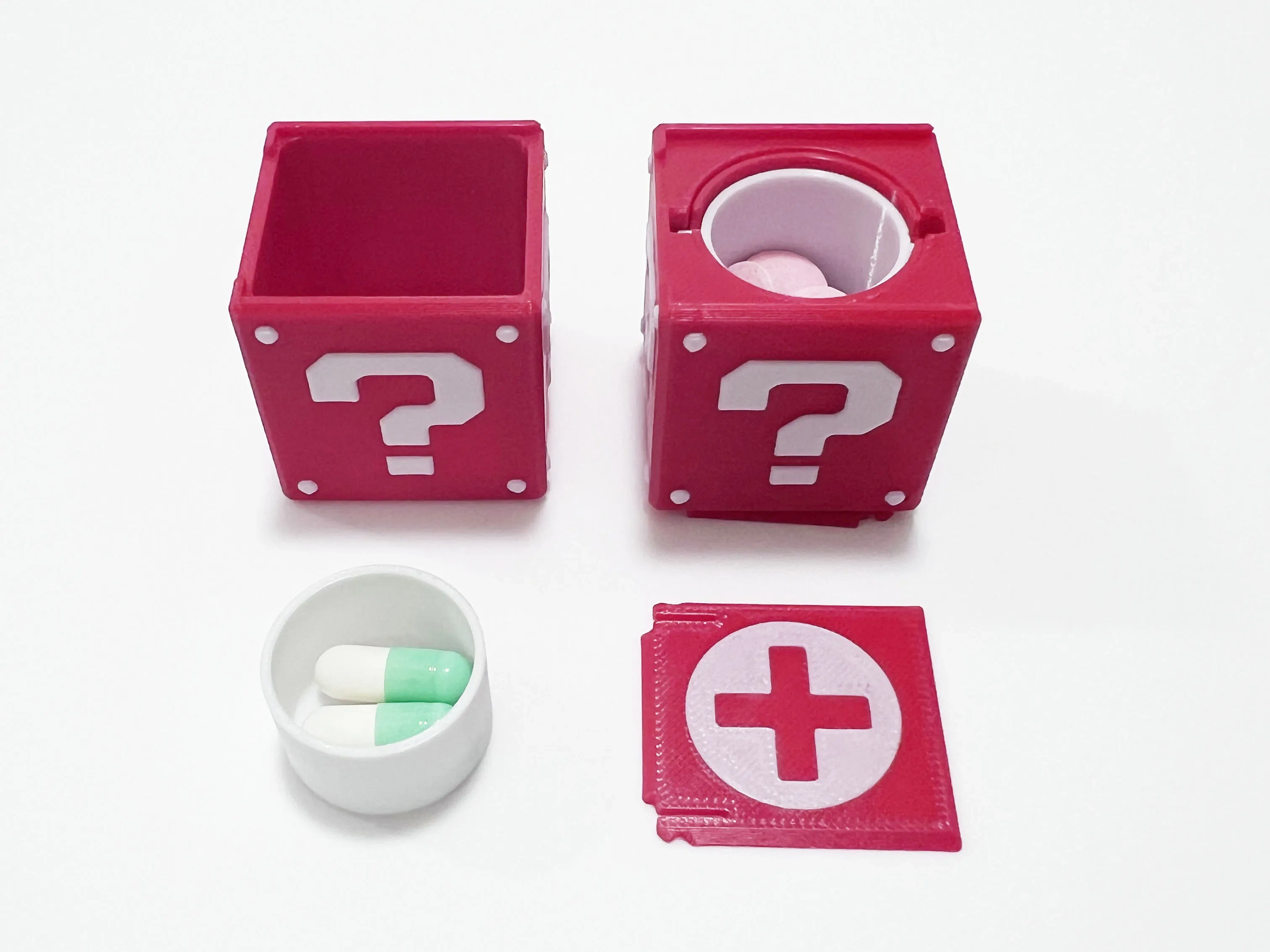

  • You can also print individual square mini‑organizers.

    Installation:

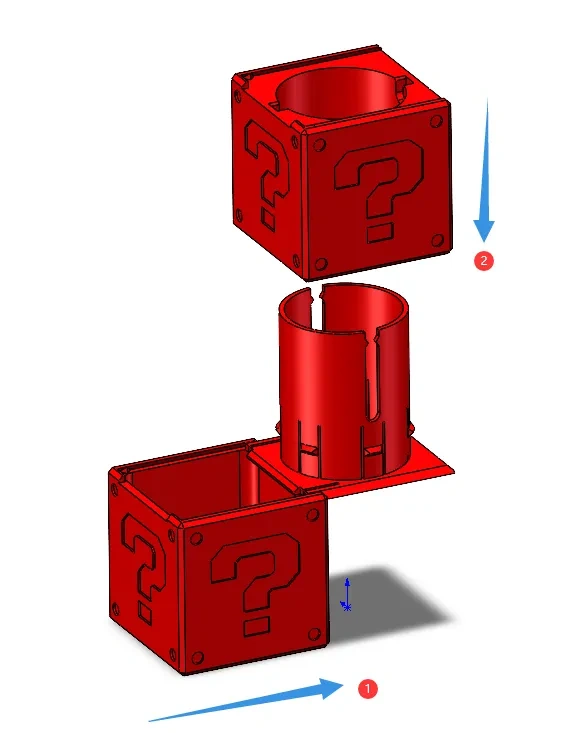

    1. Begin by inserting the middle-tier lid into the bottom square block, then press the top square block into place—as shown in Figure 1. The fit may feel snug during installation, which is perfectly normal to ensure a secure, non‑loose assembly after completion.

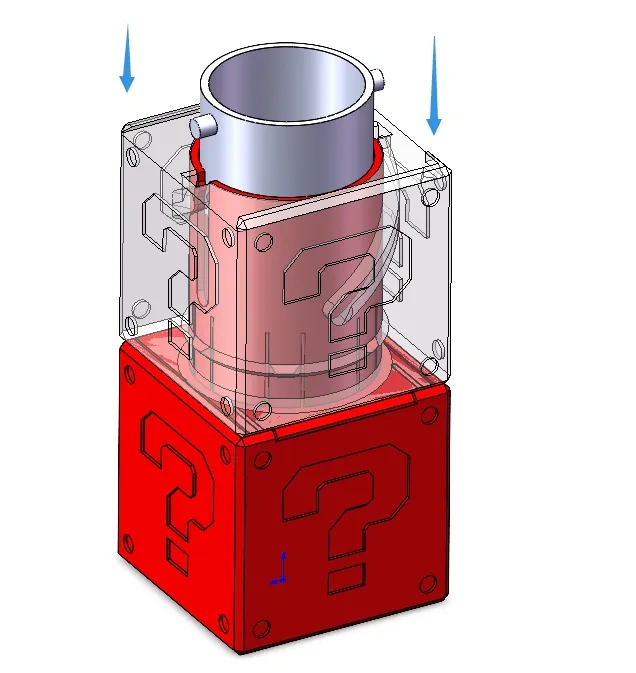

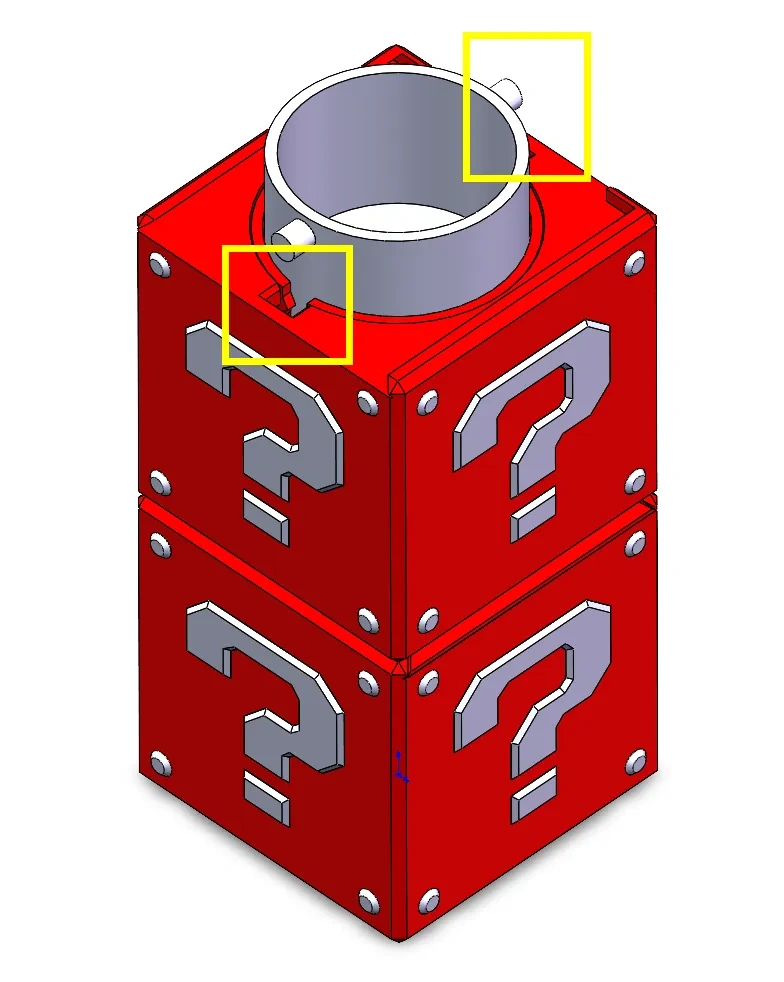

    2. Once the two square blocks are securely installed, rotate the top block until its alignment notch lines up with the corresponding slot at the top, then gently press the circular housing into place—thanks to the built‑in snap‑fit mechanism, simply push downward until the pieces align flush.

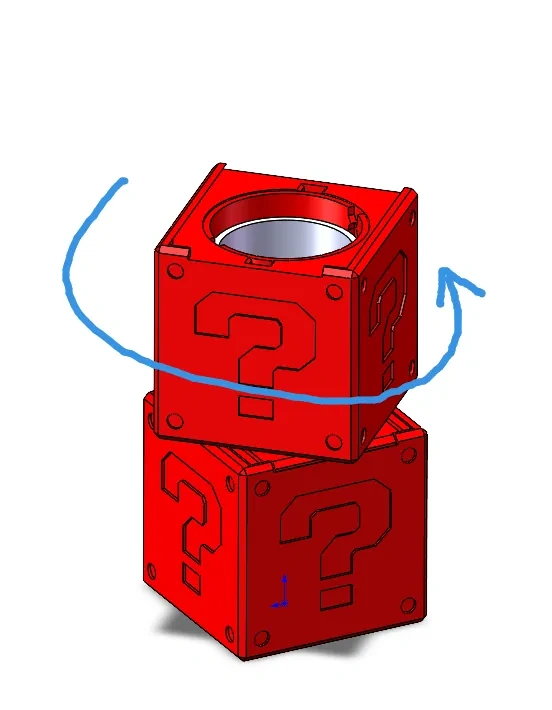

    3. Rotate the main body to slide the circular storage compartment all the way down to the base. During the first few attempts, you may notice slight resistance; however, with a few extra rotations, the movement will become smooth and effortless.





Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Models(5)

  • model file image
    马里奥便携药盒-多色方盒.3mfDesigner

    1.30 MB

    2025-12-06

  • model file image
    马里奥便携药盒-多色拼装.3mfDesigner

    2.04 MB

    2025-12-06

  • model file image
    马里奥药盒-单色方盒.3mfDesigner

    1.05 MB

    2025-12-06

  • model file image
    马里奥药盒-单色拼装.3mfDesigner

    1.71 MB

    2025-12-06

  • model file image
    问号加点.3mfDesigner

    803.71 KB

    2025-12-06
