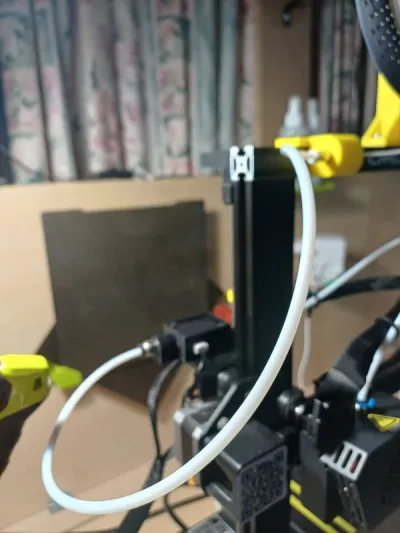

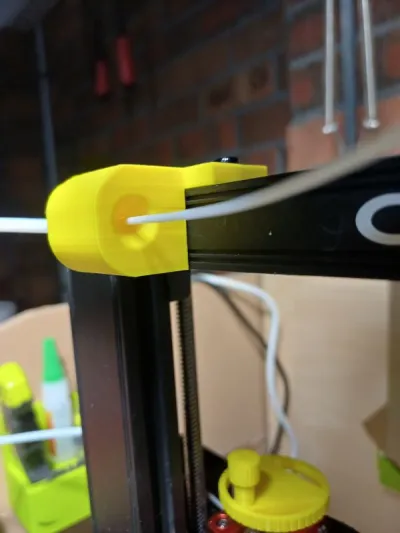

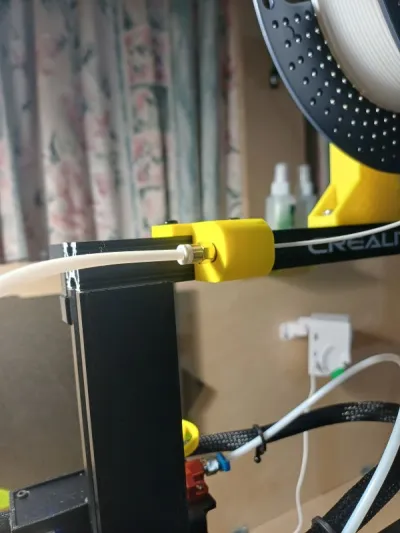

The filament on my printer was making some weird scratchy noises when it was printing and I pinpointed the problem down to when it was entering the runout sensor. I found a snap on guide for the runout sensor so I could attach a bowden fitting but wasn't able to find a suitable mount for the other end. This was my solution. It was specifically designed for my CR6, but I guess it would probably fit any printer with a 20mm extrusion on the top beam.



Extra bits you will need - 2 x M4 * 10mm screws, and 2 x M4 tee nuts. 2 x PC4 M6 Bowden tube coupler and Bowden tube

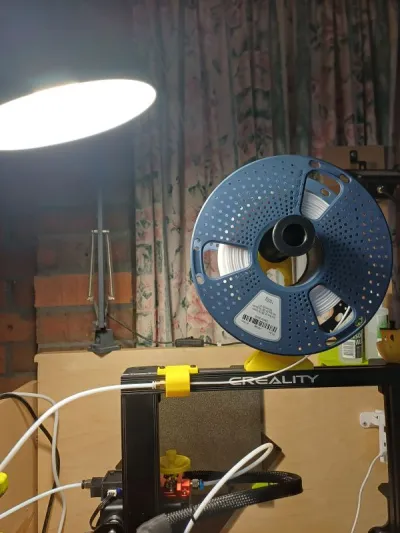

You can probably use any top mount spool holder the one I use I found on thingiverse here.

The snap on guide for the runout sensor is here.

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    M4 x 10mm Button Head Cap Screws
    2
  • 2
    2020 M4 Tee Nuts
    2
  • 3
    PC4 x 10 Pneumatic connector
    1
  • 4
    PTFE Tubing
    1

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Models(2)

  • model file image
    CR6-Top-Mount-Filament-Guide.3mfDesigner

    501.28 KB

    2025-09-03

  • model file image
    Top-Mount-Filament-Guide.stlDesigner

    1.88 MB

    2025-09-03
