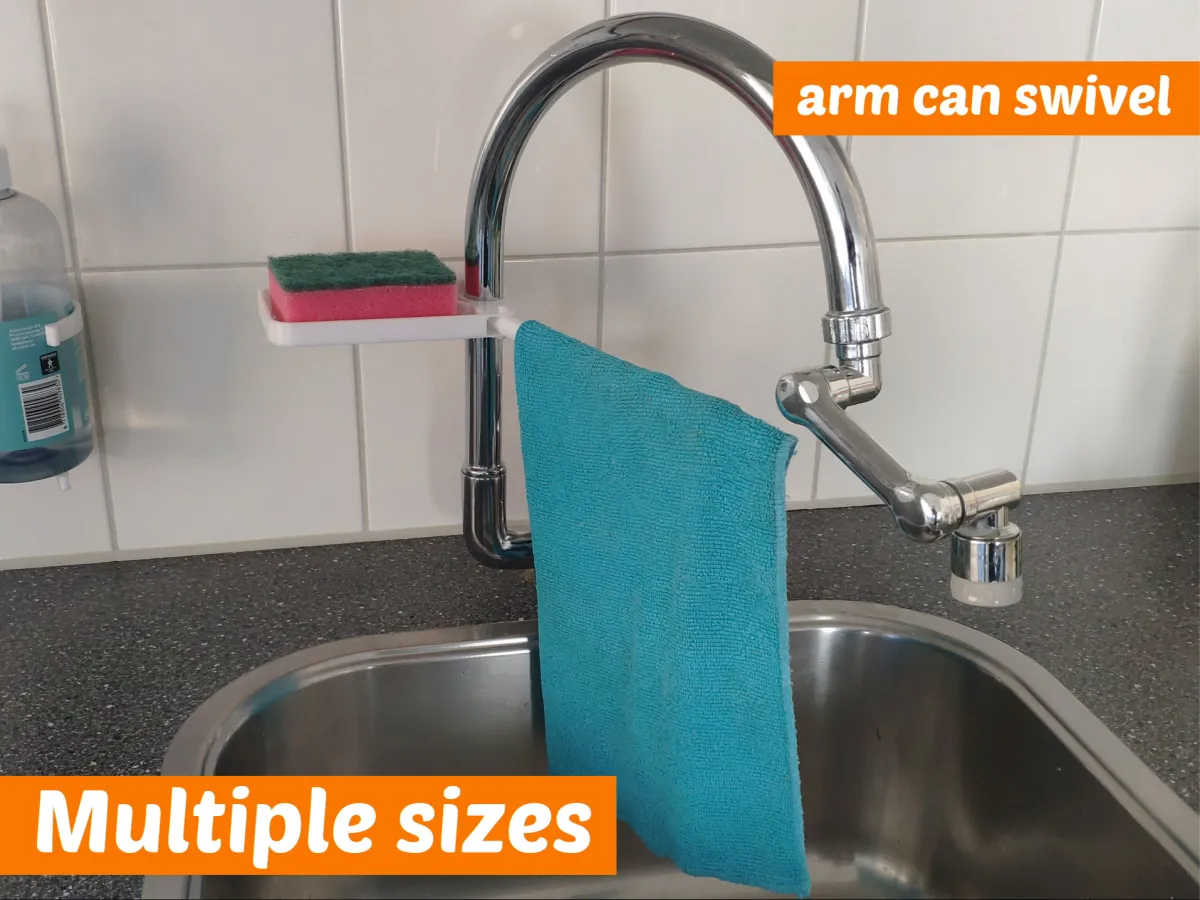

A shelf which can be attached to your faucet with a hanger for your dishcloth. The arm can swivel so you can rotate it out of the way when not using it.

If you don't need a hanger but two shelves, see my dual shelf model or for just a single shelf see my faucet shelf model.

Sizes

Different versions for different faucet diameters:

• 19 mm
• 21 mm
• 25 mm
• 28 mm

Two different hanger lengths:

• 160 mm
• 200 mm

Print instructions

I printed mine in PETG. The clamp around the faucet needs to be able to flex to mount it on your faucet. I am not sure if this will work with PLA.

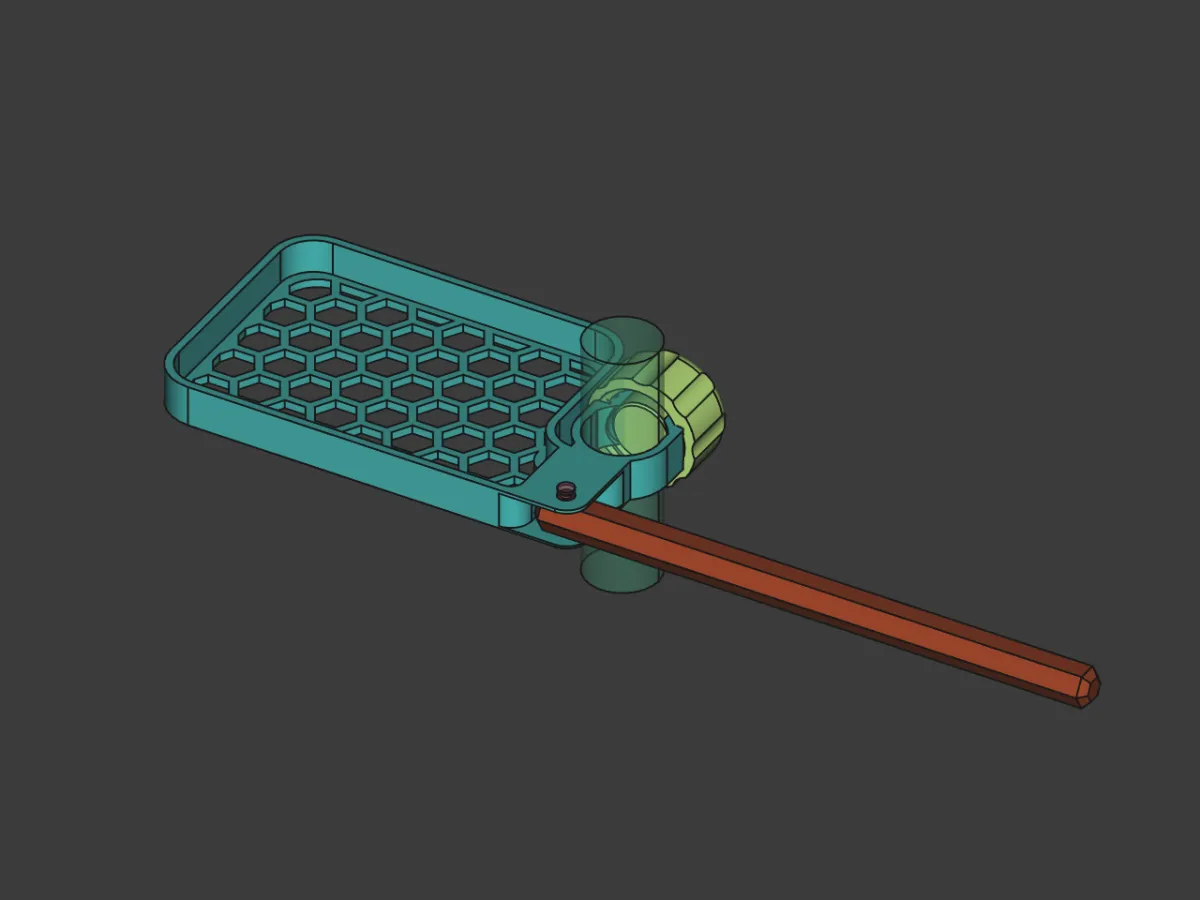

Print the desired size shelf and knob and hanger. And print one axle and two c-clips.

• Shelf: use tree support for the shelf. For strength I suggest 3 or more walls.
• Knob: print without support and the screw thread facing downwards.
• Hanger: to make it more rigid I suggest 4 or more walls and a higher infill percentage. Use a brim if you experience warping.

Assembly

Remove the support structure from the shelfbase and insert the hanger into the shelf. Insert the axle through the shelfbase and hanger. It is a precise fit so you may need to do a bit of sanding or cleanup before you can get it through. Use some small pliers to place the c-clips on both ends of the axle to secure it in place. Note the correct orientation of the clip with the flat sides to the bottom assuming you have the axle in the print orientation.
