Suggested Print Settings:

Material: PLA+ or PETG
Nozzle: 0.4mm
Extrusion Width 0.4mm
Layer Height: 0.2mm
Perimeters: 3
Infill: 20% Grid
Top/Bottom Layers: 5
Support Material: None

3D Printing Disclaimer:

Thank you for downloading my CAD design! I want to assure you that extensive testing and iteration went into creating this design. However, please keep in mind that 3D printing involves a wide range of variables, including different types of filament, printer settings, and calibration levels. These factors can significantly impact the final print.

Before concluding that the design is flawed, I encourage you to:

• Check your printer calibration: Ensure your printer is properly calibrated.

• Adjust print settings: Try changing the print settings to achieve better results.

• Resize the model: Scaling the model up or down slightly may resolve fit issues.

If you encounter any issues or need assistance, please feel free to reach out to me. I am here to help and can provide guidance to achieve the best results. Claiming a design is bad without considering these variables does a disservice to the community and may discourage others from trying a design that could work perfectly with minor adjustments.

Thank you for your understanding and cooperation. Happy printing!

Description:

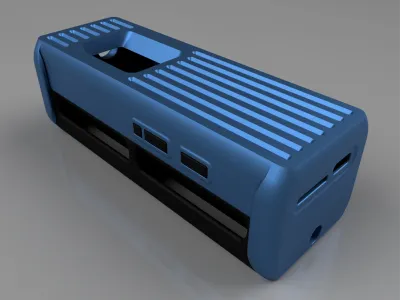

Custom case for the TBeam SUPREME V3.0 ESP32-S3 with ublox M10. Only requires 2 M3 nuts and 2 M3x8 bolts.

What are all these options?

FRONT

Ridges: Looks cool.

Smooth: Looks boring.

10mm: Can accept an antenna with up to 10mm base. (stock antenna, Gizont 17cm)

13mm: Can accept an antenna with up to 13mm base.

15mm: Can accept an antenna with up to 15mm base. (tacticool flex antenna)

BACK

Nuts: Uses M3x2.4mm nuts and M3 socket head screws.

Inserts: Uses M3x5mm heat set inserts and socket head screws.

BUTTONS

A: Middle button is higher

B: Side button is higher

C: Both buttons are higher

D: No buttons are higher

MOUNTS

Baofeng Clip Nuts: Works with a Baofeng UV5R compatible clip with M2.5x5mm screws and nuts.

Baofeng Clip Inserts: Works with a Baofeng UV5R compatible clip with M2.5x5mm screws and M2.5 heat set inserts.

Desk Stand: Holds the device at a 30 degree angle, needs two of them.

Tripod Mount: Has threaded holes to allow ¼-20 tripod adapters to be installed at various different angles.

Horizontal Molle Clip: Use two of these to mount the device horizontally on molle/pals webbing.

Vertical Molle Clip: Use part A and B to mount the device vertically on molle/pals webbing.
