Actuator
Vertical
Vertical Servo Actuator (Rack and Gear System)
Print Profile(1)
- 0.2mm layer, 2 walls, 15% infill
'%20fill='%23B3B3B3'/%3e%3crect%20id='Rectangle%201051'%20x='8'%20y='2'%20width='12'%20height='0.5'%20transform='rotate(90%208%202)'%20fill='%23D9D9D9'/%3e%3crect%20id='Rectangle%201052'%20x='11'%20y='2'%20width='12'%20height='0.5'%20transform='rotate(90%2011%202)'%20fill='%23B3B3B3'/%3e%3cpath%20id='Rectangle%201048'%20d='M2%202H14V14H11L10.5%2014.5H8H5.5L5%2014H2V2Z'%20stroke='%23828282'%20stroke-linejoin='round'/%3e%3c/g%3e%3c/g%3e%3c/svg%3e)
1-disc
PLA
Designer
37
9
Released 2026-02-12

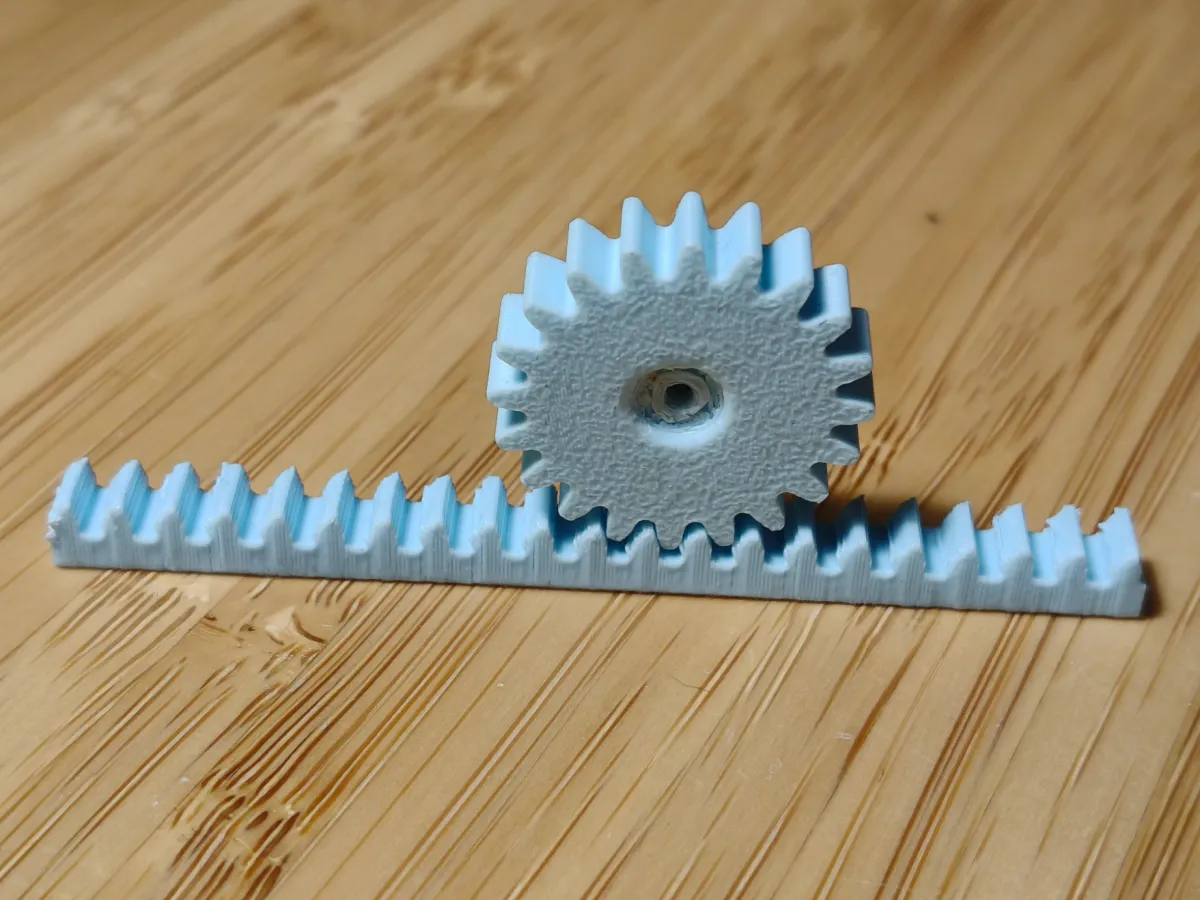

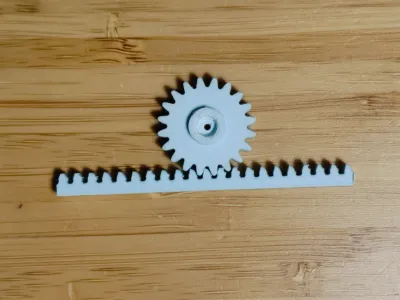

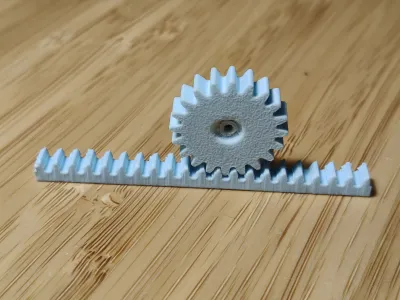

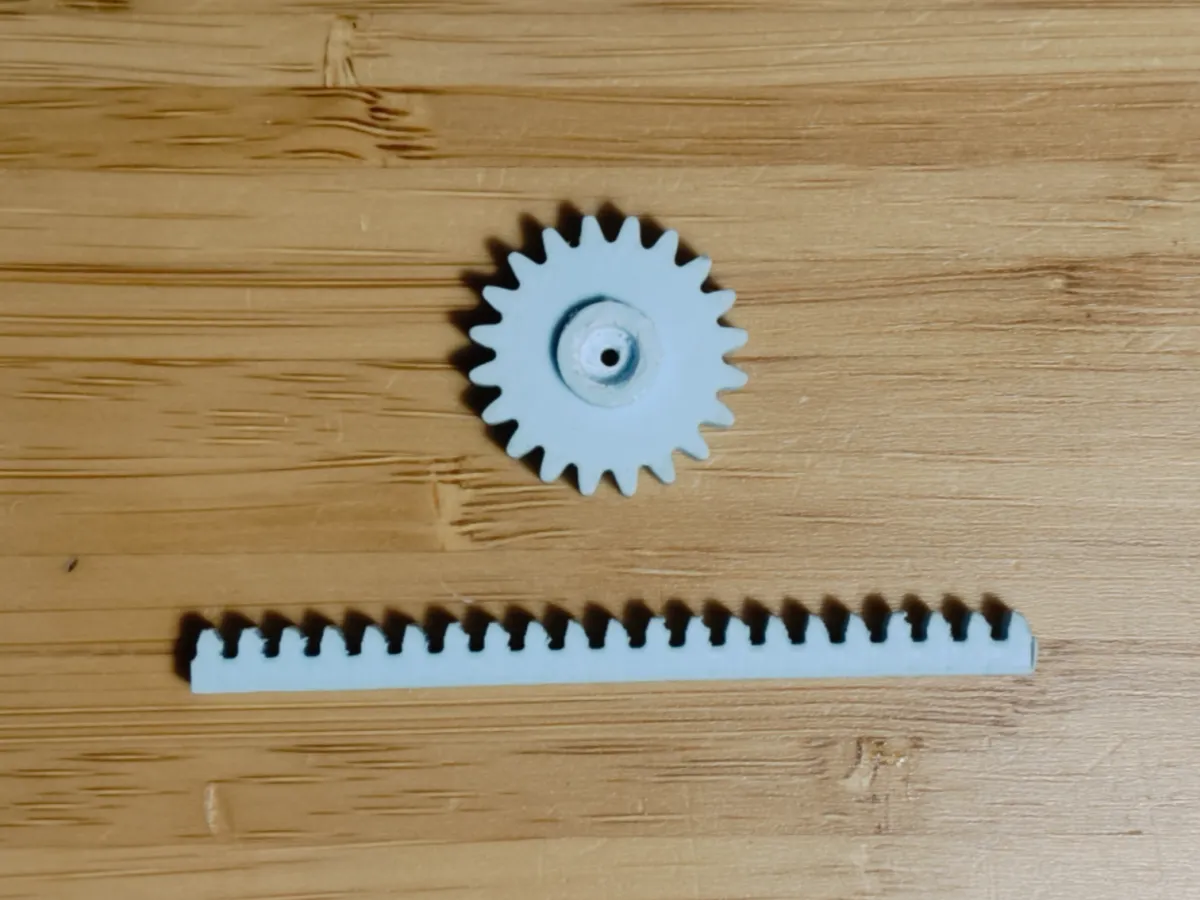

Transform your servo's rotation into smooth vertical movement with this precision rack and pinion system! This mechanical assembly is designed to provide reliable linear motion for your robotics or automation projects. The circular gear (pinion) attaches directly to your servo motor, driving the straight toothed rail (rack) up and down with high accuracy.
Bill of materials
- NameQuantityNotes
- 1servo motor1180° SG90 servo motor
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
Credit must be given to the creator
Models(3)
- servo motor vertical movement(Rack and gear).3mfDesigner
