Elegoo Neptune 3 Extruder Housing – Bi-Metal Heatbreak Upgrade
Print Profile(1)
  • 0.2mm layer, 2 walls, 15% infill

    1-disc

    PETG

    Designer

1

1

2

0

Released 2026-07-13
Details
Files(1)
Makes & Comments (0)

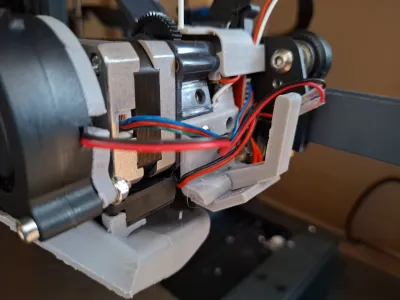

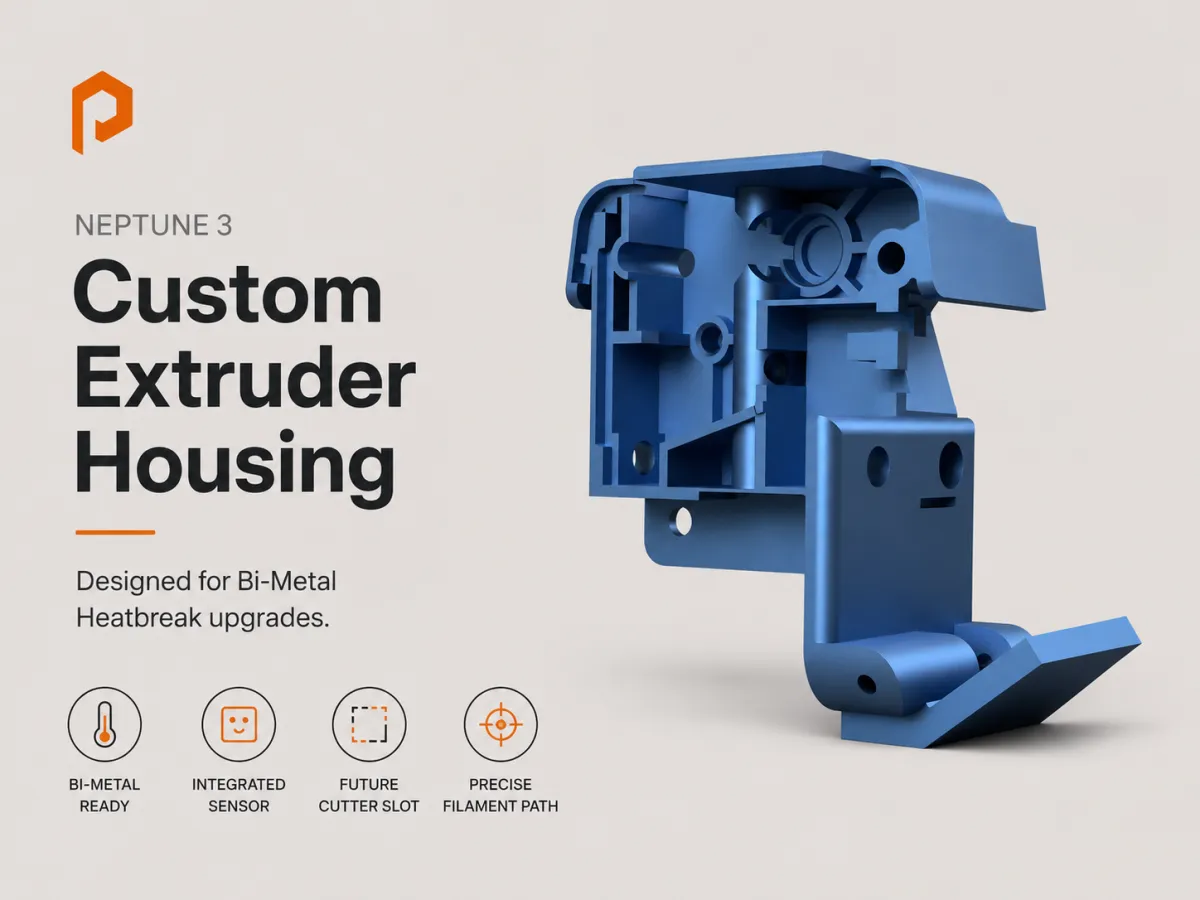

A designed extruder housing and filament guide replacement for the Elegoo Neptune 3 print head. This model replaces the stock entry section (from the dual-drive gears down to the heatsink) and is specifically optimized for setups upgraded with a Bi-Metal Heatbreak.

It integrates a reliable custom sensor and includes geometric preparation for future upgrades.

Key Features:

  • Bi-Metal Heatbreak Ready: Modified internal geometry to perfectly match and support bi-metal heatbreak conversions.
  • Integrated Filament Sensor: Built-in housing for a smart runout sensor. Requires a 3mm steel ball and an Omron SS-5 microswitch for operation.
  • Future Filament Cutter Slot (Ready for Upgrade): Please note, this version only features the physical slot/preparation for a filament cutter. The cutter mechanism itself is not yet implemented and is meant for future community development or upcoming version updates.
  • Precise Filament Path: Constrained filament path directly from the entry through the dual-drive gears.

Print Settings & Recommendations:

  • Supports: Yes, supports are required (organic/tree supports recommended for easy removal from internal cavities).
  • Material: PETG, ABS, or ASA recommended for temperature resistance near the print head.
  • Layer Height: 0.2mm or finer for precise internal tolerances (especially around the microswitch and 3mm ball pocket).

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Standard Digital File License

This work is licensed under a Standard Digital File License. Digital files have a strict non-commercial, personal use only license.

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital file or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including remixes of this object). You can not host these files on other digital platforms, web stores or cloud repositories. The objects may not be used in any way whatsoever in which you charge money, collect fees.
