Garden Hose Quick Connector
Print Profile(1)
  • Garden Hose Quick Connector 0.2mm layer, 3 walls, 15% infill

    6-disc

    PLA

    Designer

    5(1)

6

19

226

96

Released 2026-01-10
Details
Files(7)
Makes & Comments (0)

Design Concept

These garden hose quick connectors are designed for easy coupling and uncoupling of hoses without the need for screwing and unscrewing. They incorporate a simple and efficient snap system for a quick connection.

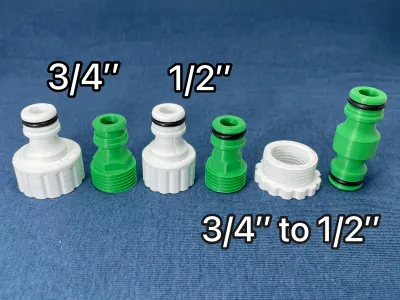

1. Quick connector male for garden hose 3/4 and 1/2:

2. Quick connector female for garden hose 3/4 and 1/2:

3. Adapter from 3/4" to 1/2":

4. Double male connector:



Purpose

The connectors are used for efficient garden irrigation setups, allowing users to quickly connect and disconnect hoses and accessories, optimizing the overall garden irrigation processes.



Printing Tips

Use strong and water-resistant filament materials such as PETG or PLA to withstand outdoor conditions. Use a layer height of 0.2mm to ensure the details in the thread.



Assembly Instructions

No assembly is required; Simply snap the connector ends onto the hose fittings as needed for your application. For tighter fits, check your printer's tolerances and adjust your project dimensions slightly if necessary.Printing Tip Prices should be printed as shown in the image so that the inside where the seal rests is smooth as indicated by the arrow

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Standard Digital File License

This work is licensed under a Standard Digital File License. Digital files have a strict non-commercial, personal use only license.

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital file or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including remixes of this object). You can not host these files on other digital platforms, web stores or cloud repositories. The objects may not be used in any way whatsoever in which you charge money, collect fees.

Models(7)

  • model file image
    garden hose quick connector elegoo.3mfDesigner

    3.34 MB

    2026-01-09

  • model file image
    male hose quick connector 3-4 v2.stlDesigner

    1.90 MB

    2026-01-09

  • model file image
    female hose quick connector 3-4.stlDesigner

    2.16 MB

    2026-01-09

  • model file image
    female hose quick connector 1-2.stlDesigner

    2.02 MB

    2026-01-09

  • model file image
    male hose quick connector 1-2.stlDesigner

    1.38 MB

    2026-01-09

  • model file image
    Reducer adaper 3-4 to1-2.stlDesigner

    3.70 MB

    2026-01-09

  • model file image
    double male hose connector.stlDesigner

    685.04 KB

    2026-01-09
