Cycling Pannier Clips
Print Profile(2)
  • 0.2mm layer, 7 walls, 15% infill

    1-disc

    PETG

    Designer
  • 0.2mm layer, 7 walls, 15% infill

    1-disc

    PETG

    Designer

0

1

21

1

Released 2026-01-07
Details
Files(4)
Makes & Comments (0)

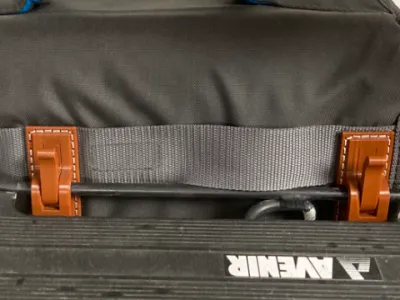

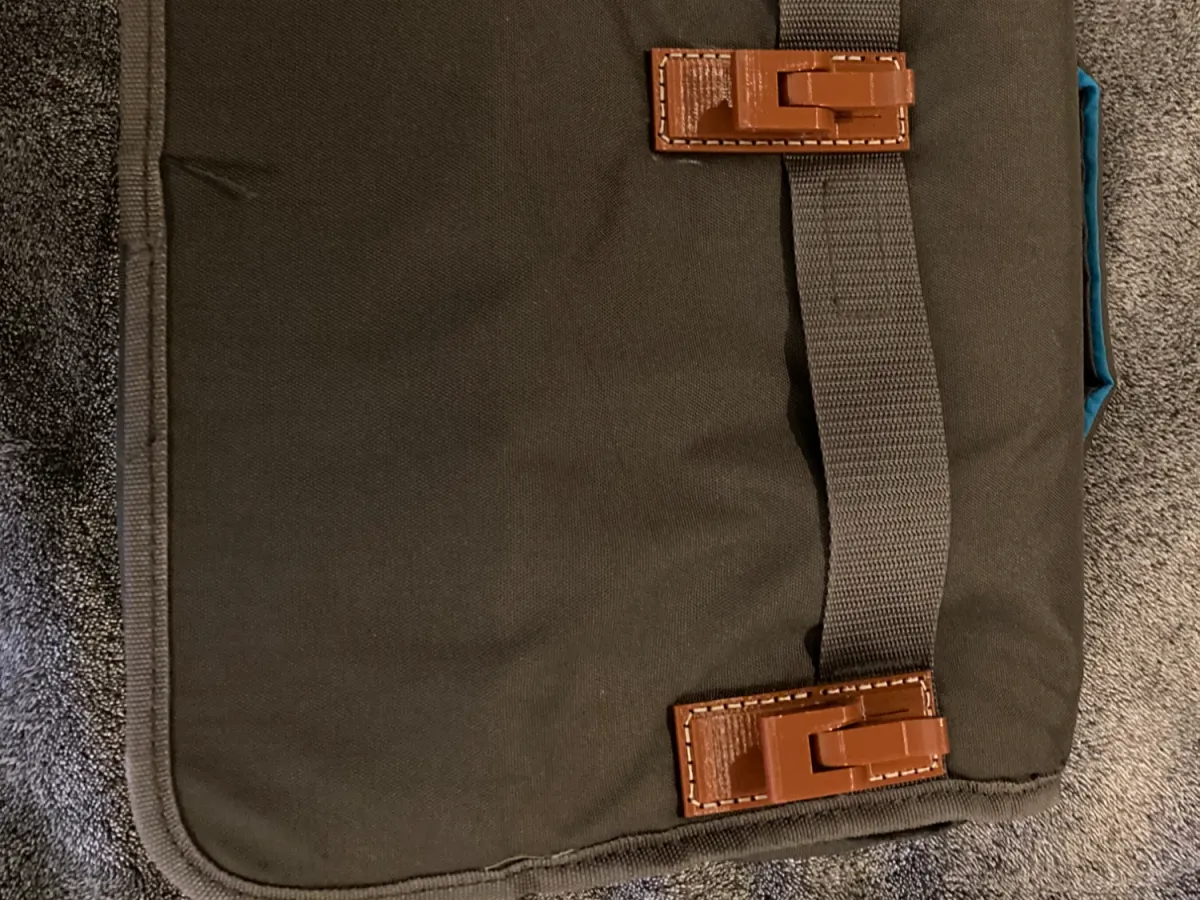

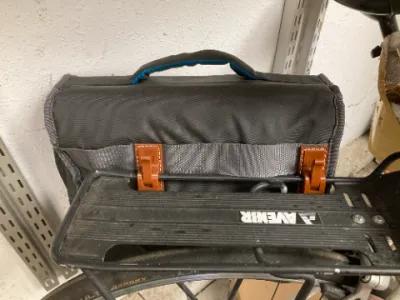

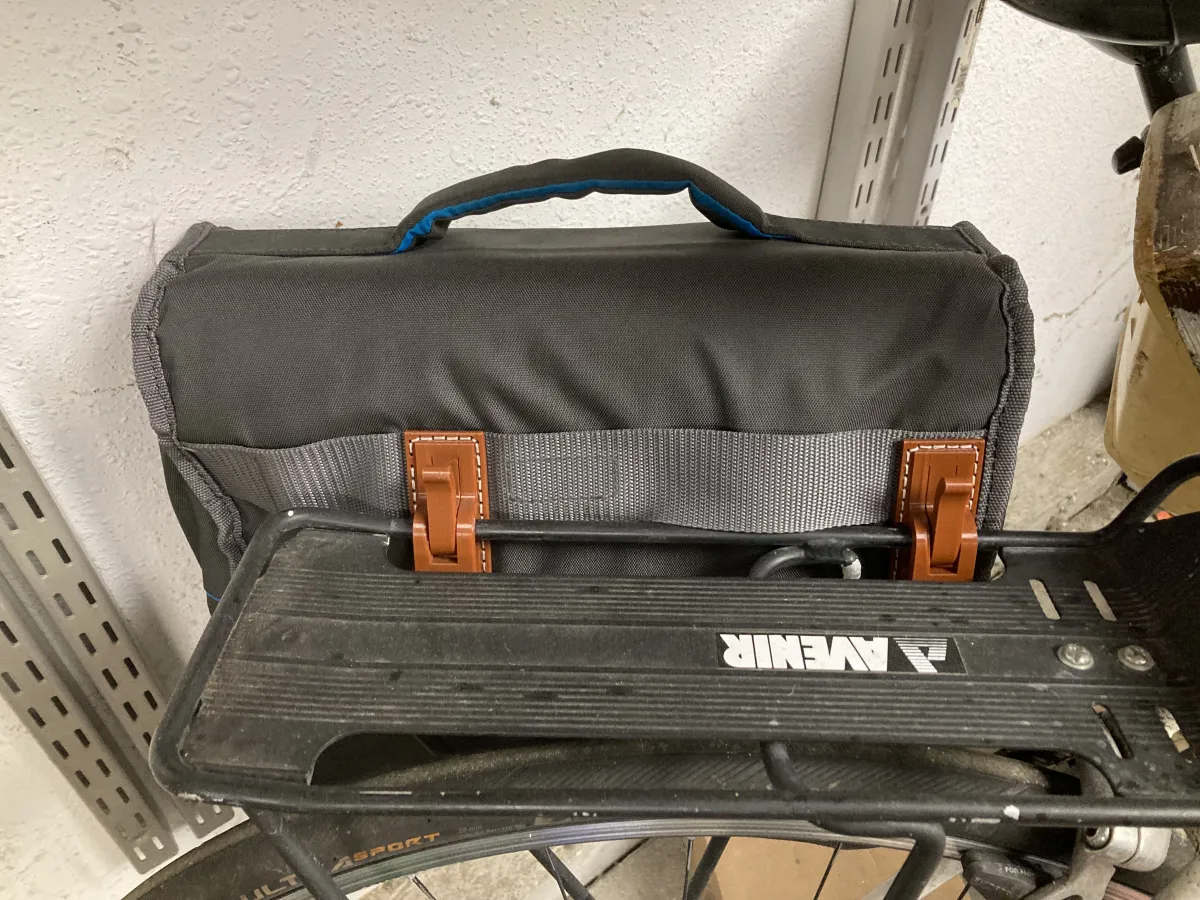

Clips onto 8mm aluminum bike rack. Sew on with very strong thread. I used a heavy-duty nylon thread. Should have pretty good retention and easy removal. Remove by squeezing the thumb lever while pulling up. You don't need to squeeze it that much.

Print with a relatively flexible filament like PETG. Use enough perimeters that the lever is completely filled with perimeter traces. Print on the side so the lever is oriented for maximum strength. The STL is oriented correctly for printing. The 3mf file will need to be rotated.

Needs some supports for the lever.

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    Bag
    1
    Whatever bag you want to convert to a pannier
  • 2
    Heavy Duty Thread
    1
    Nylon heavy duty thread or equivalent

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted

Models(4)

  • model file image
    Part3.stlDesigner

    380.26 KB

    2026-01-11

  • model file image
    Part3PrintSettings.3mfDesigner

    105.74 KB

    2026-01-11

  • model file image
    Part3.3mfDesigner

    113.93 KB

    2026-01-11

  • model file image
    Part3CCSettings.3mfDesigner

    112.10 KB

    2026-01-11
