i made this light box frame so I could change the picture without having to print a new frame all the time

this one is ideal for lager poster prints

the box takes hueforge and Lithophane that are 150mm x 200mm

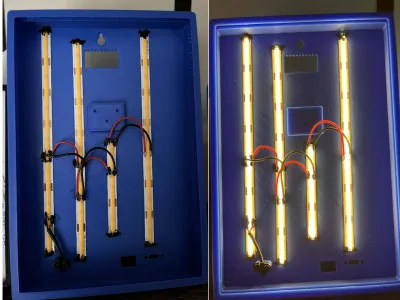

i used basic led cob lighting for this.

there was a problem with the dividers on my first box

they were brittle and snaped easily after that i reinforced the design

With this frame i covered most options for hanging it

There are two ways to hang it on a wall

it will stand on a shelf on its own but if you would like to tilt it i made a stand for it.

for the stand you will need a few Screws M3 10mm there is a reinforced plate were the screws go for the stand

there are a few ways to power the box one is to add a Type C port

i also added a power switch for the 13.5 x 8.5 rocker switch

the other is with a cable

there are two holes for cables one at the back and one below

if you decide to hang the box

it's a bit of a pain to remove the supports but its a must for this
