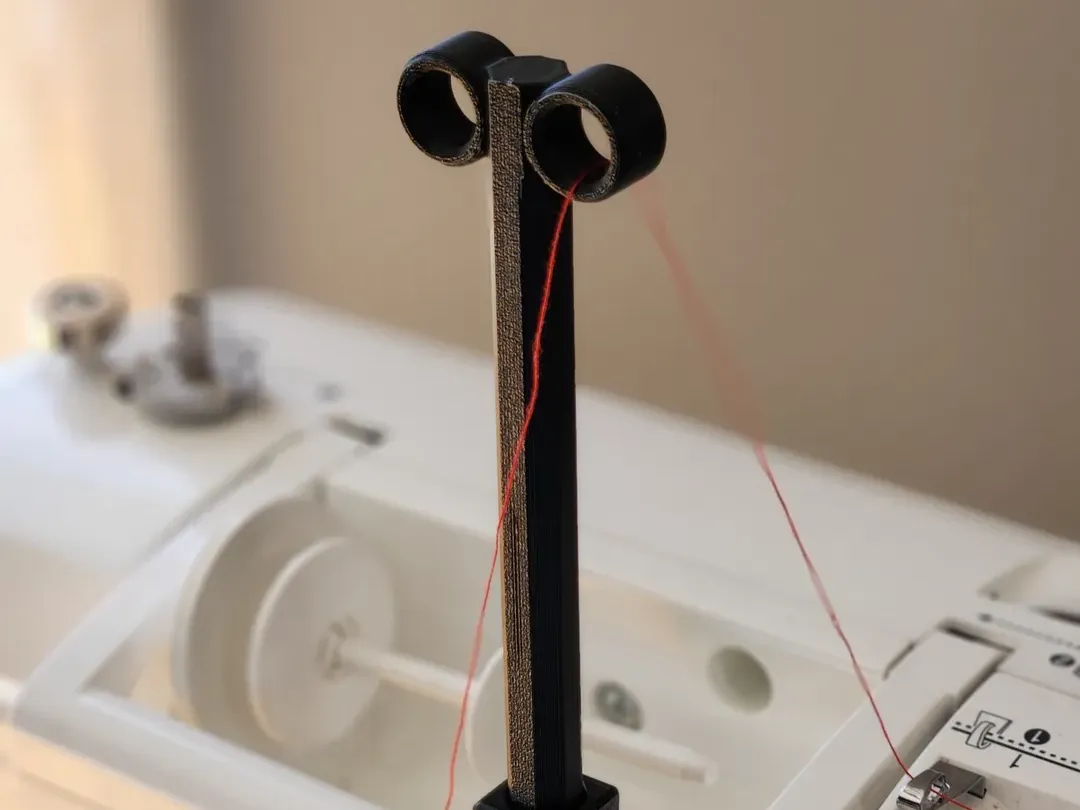

A thread extender and guide designed for use with large thread spools that don’t fit on the machine.

When large spools sit behind the machine, the thread often gets pinched or pulled at sharp angles—and the spool can tip over. This extender raises and redirects the thread path for smoother feeding and more consistent operation.

Designed to my wife’s specifications for real-world use.

Key Features

• Guides thread cleanly from large spools behind the machine
• Reduces pinching and sharp thread angles
• Helps prevent spool tipping

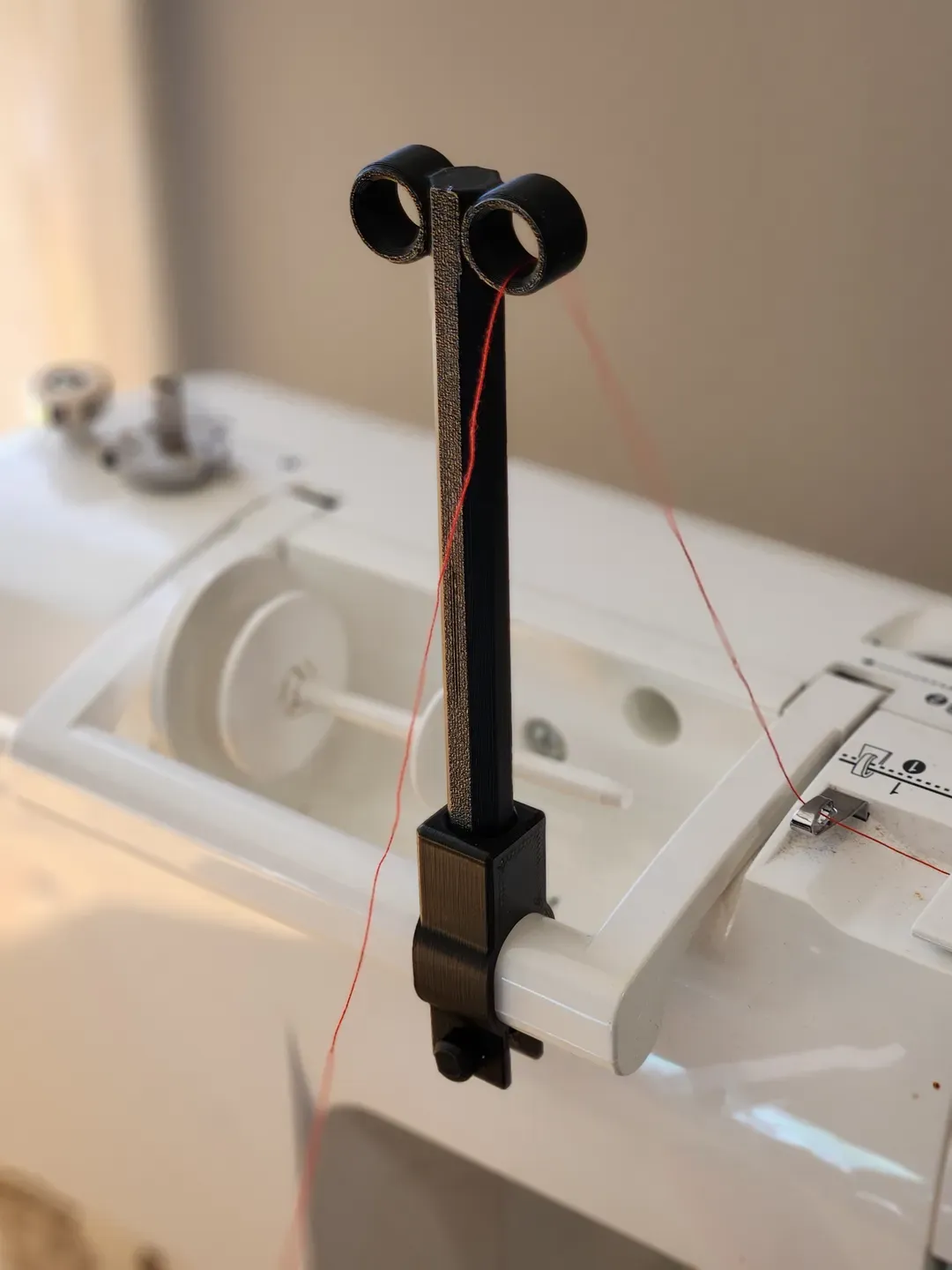

• Mounts to the machine handle (no modification required)

Mounting / Fit

• Designed around a Brother sewing machine, but compatible with others using a similar handle
• Clamp fits an approximately 20.5mm × 15.5mm elliptical handle
• Flexible design allows slight variation in fit
• Tightens via integrated screw (optional)

Clamp Design

• Clamp is shaped to grip the handle securely—even without a bolt
• Bolt and nut are optional
  • Works well without them in typical use
  • Metal hardware can be used if additional clamping force is desired
  • A printable screw is included

Modular Design

• Clamp and extension rod are separate parts
• Rod inserts with slight clearance
• Allows for custom or alternative clamp designs if needed

Print Settings

• Layer height: 0.20 mm
• Walls: 4
• Infill: Gyroid, 25%
• Supports: None
• Files are pre-oriented for printing

Print Notes

• Extension rod has minimal bed contact, so you may wish to add a brim, but it's not required with normal bed adhesion.
