Drill bit case / Drillbox - metric
Print Profile(0)

  • Earn points by adding print configurations

4

0

23

0

Released 2026-03-18
Details
Files(5)
Makes & Comments (0)

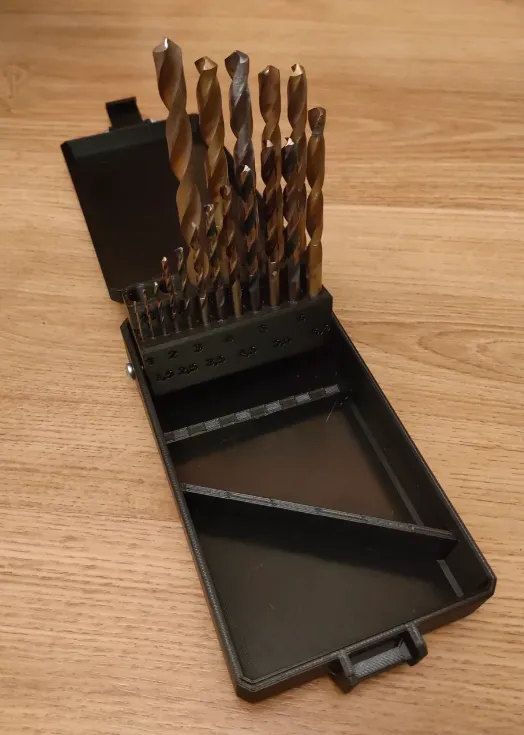

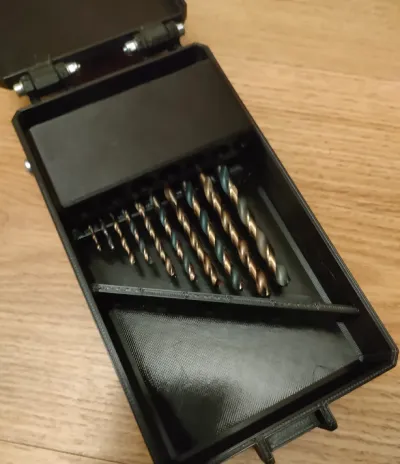

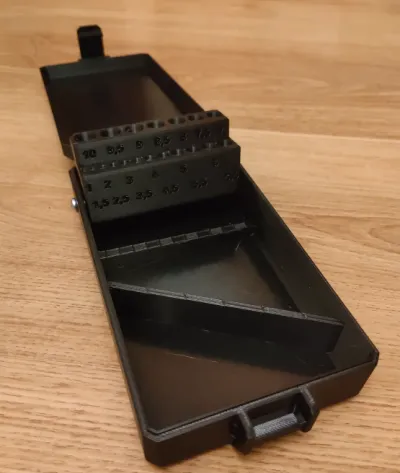

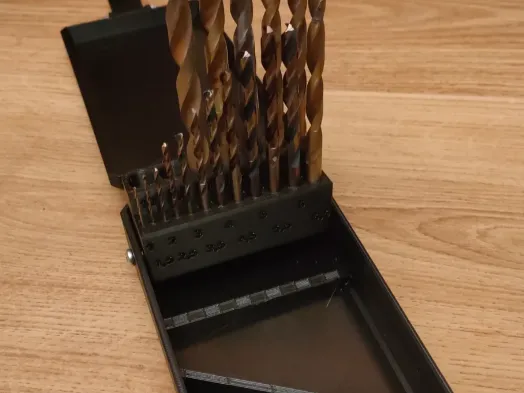

Drill bit case for metric drills. With size markings.
Drills incrementation 0,5mm from 1-10mm.
Fasteners for assembly are needed. In drill holder I recommend to tap a M4 thread before fasten the M4 screws.



Fasteners :
M4x20mm x 2pc
M3x25mm x 2pc
M3x30mm x 1pc


Nuts:
M3 x 3pc,



Material: PLA, PET-G etc,
Layer high: 0,3 or lower
Supports needed for bottom part of latch.

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    M4x20 Philips head screw
    2
    For drill holder
  • 2
    M3x25mm Socket head screw
    2
    For hinges
  • 3
    M3x30mm Socket Head Screw
    1
    For Latch

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted

Remixes must be shared under the same license

Models(5)

  • model file image
    Drill box lid.stlDesigner

    47.74 KB

    2026-03-17

  • model file image
    Drill box.stlDesigner

    66.49 KB

    2026-03-17

  • model file image
    Drill holder with marking lines.stlDesigner

    1.32 MB

    2026-03-17

  • model file image
    Drill holder.stlDesigner

    1.27 MB

    2026-03-17

  • model file image
    Latch.stlDesigner

    131.33 KB

    2026-03-17
