Rugged box for soldering iron
Print Profile(0)

  • Earn points by adding print configurations

6

7

92

5

Released 2026-03-17
Details
Files(4)
Makes & Comments (0)

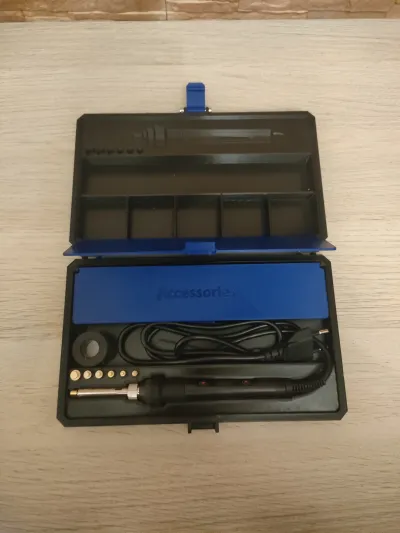

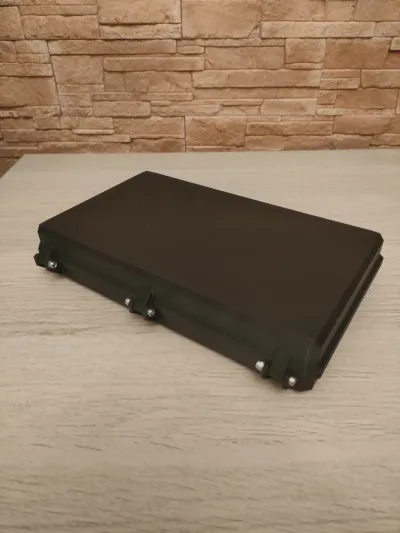

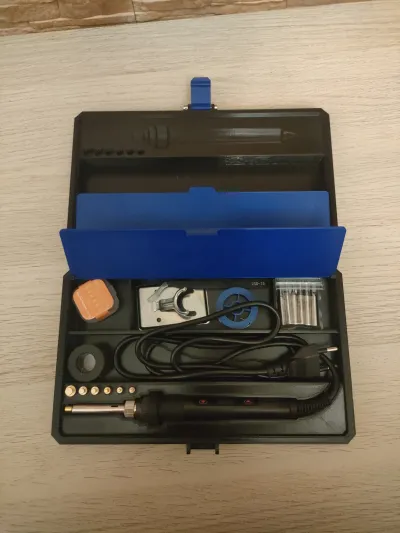

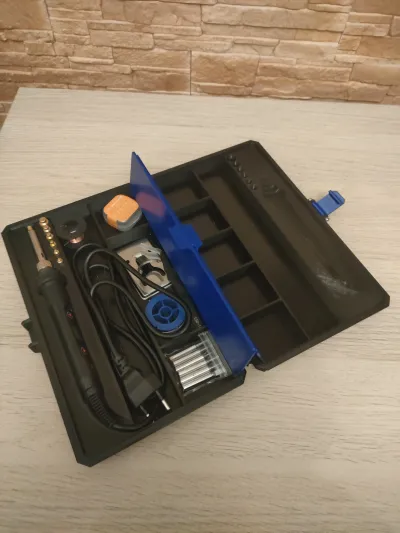

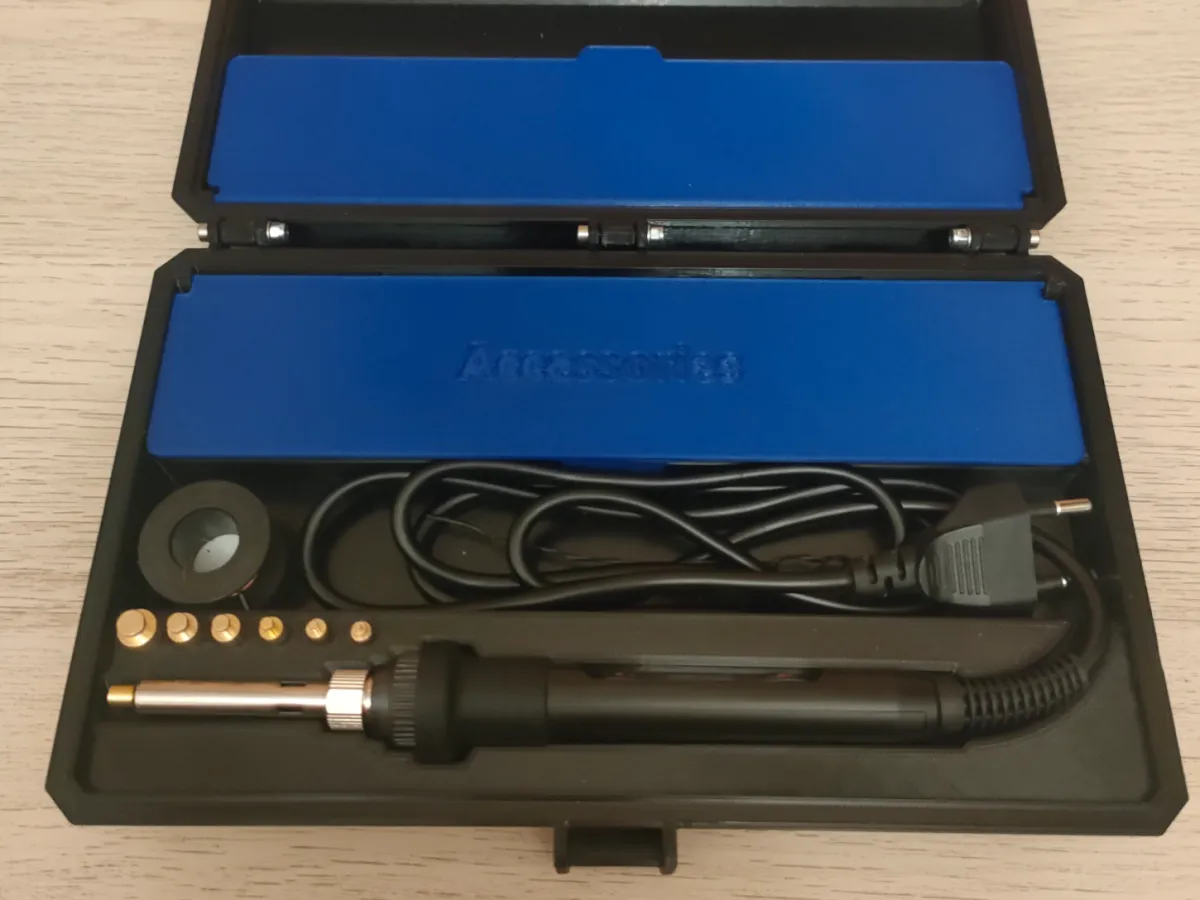

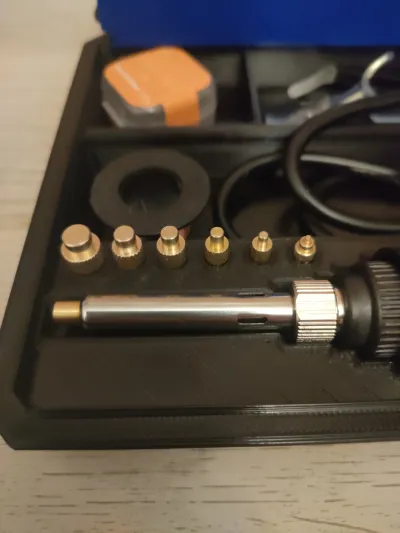

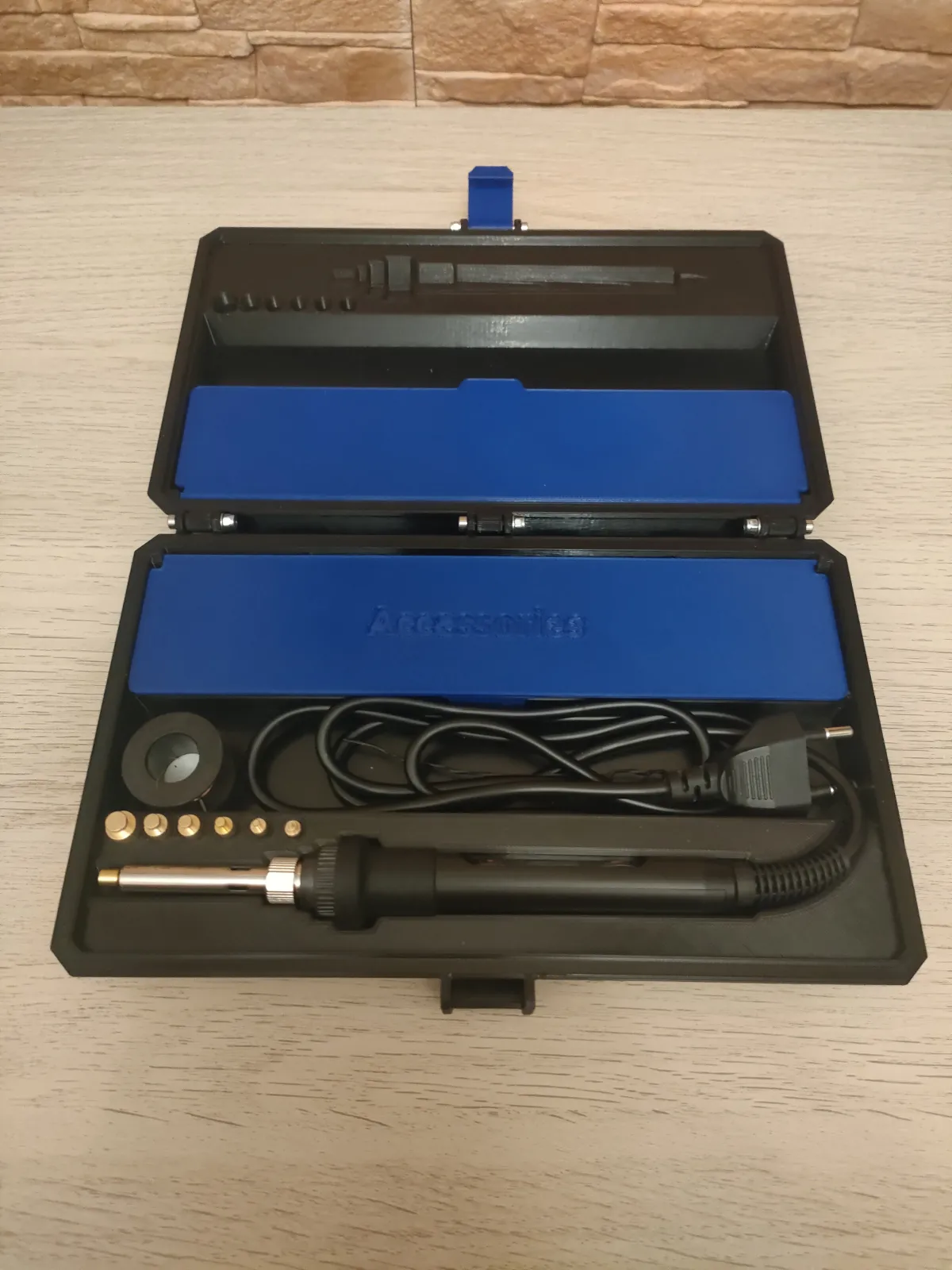

Rugged soldering iron case with additional internal containers with covers.

Holes for threaded inserts are slightly smaller and inserts fit tight and should be screwed with base without tap just by hand.

Two internal lids are needed:
-1198-4  -2x

Link for soldering iron:
https://pl.aliexpress.com/item/1005005610255110.html?spm=a2g0o.order_list.order_list_main.17.27cf1c24YaOiJG&gatewayAdapt=glo2pol

Fasteners:
-3x M3x20mm Socket Head Screw
-1x M3x30mm Socket Head Screw
-4x M3 Nylock nut ( or normal )
-4x M3 washer.

Material:
PLA, PETG, ABS, etc.
Layer high:
0,3 or lower

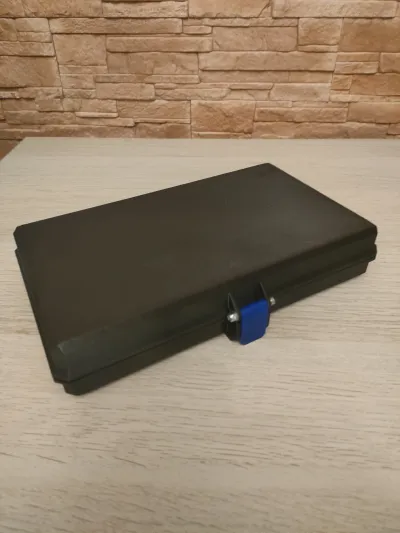

Supports needed - in base for latch.


Bill of materials

  • Name
    Quantity
    Notes
  • 1
    M3x20mm Socket Head Screw
    3
  • 2
    M3x30mm Socket Head Screw
    1
  • 3
    M3 Nylock nut ( or normal )
    4
  • 4
    M3 washer.
    4

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted

Remixes must be shared under the same license
