The Design

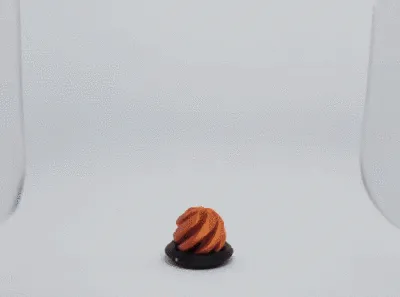

The Latest model in the Series is Here: The v2 - Vortex Fidget Ball

Note: this model is best used with some minor assembly (though not necessary)

This can be played with in one hand. you push the ball through the disc and back.

The parts are also compatible with other designs in the V2 series.

Dimensions are approximately: 27mm x 27mm x 35mm

Let me know if you experience any issues.

Assembly

Though not necessary, this toy is best enjoyed with some assembly.

There are two methods:

The First Method uses a small offcut of 1.75 diameter filament

The Second and more simple method uses a 2mm x 33mm brass dowl

Method 1:

1. Remove all supports on ball and disc (disc has 2 small supports )
2. Align hole in disc and hole in ball

3. Push piece of filament through and cut to length

4. . Very Carefully Heat the end of the Hex key (Allen key) just enough to be able to melt filament, to then put on the filament to melt it flush

Method 2:

1. follow steps 1 and 2 from Method 1
2. Push the 2mm dowel through until flush (this will be very tight, please be careful)

Printing

The ball is “floating” to ensure the best lower surface possible. use auto tree supports to an angle of 30 degrees

For the Toy Disc, I've painted two areas, use normal (manual) supports on this part

It is set up to print sequentially (one part, then the next) in up to 2 colors

Once printed let the build plate cool before trying to remove.

(this should all be set up in the 3mf files already)

Please make sure your filaments are dry and in good condition. I've Found Silk filaments have a lower success rate. The ball can cause difficulty is your filament isn't calibrated well. Let me know if you experience issues.
