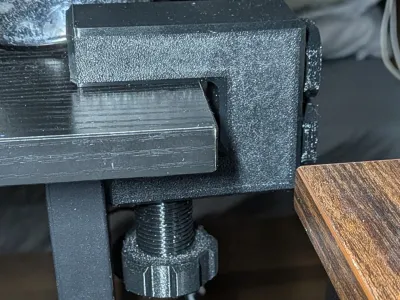

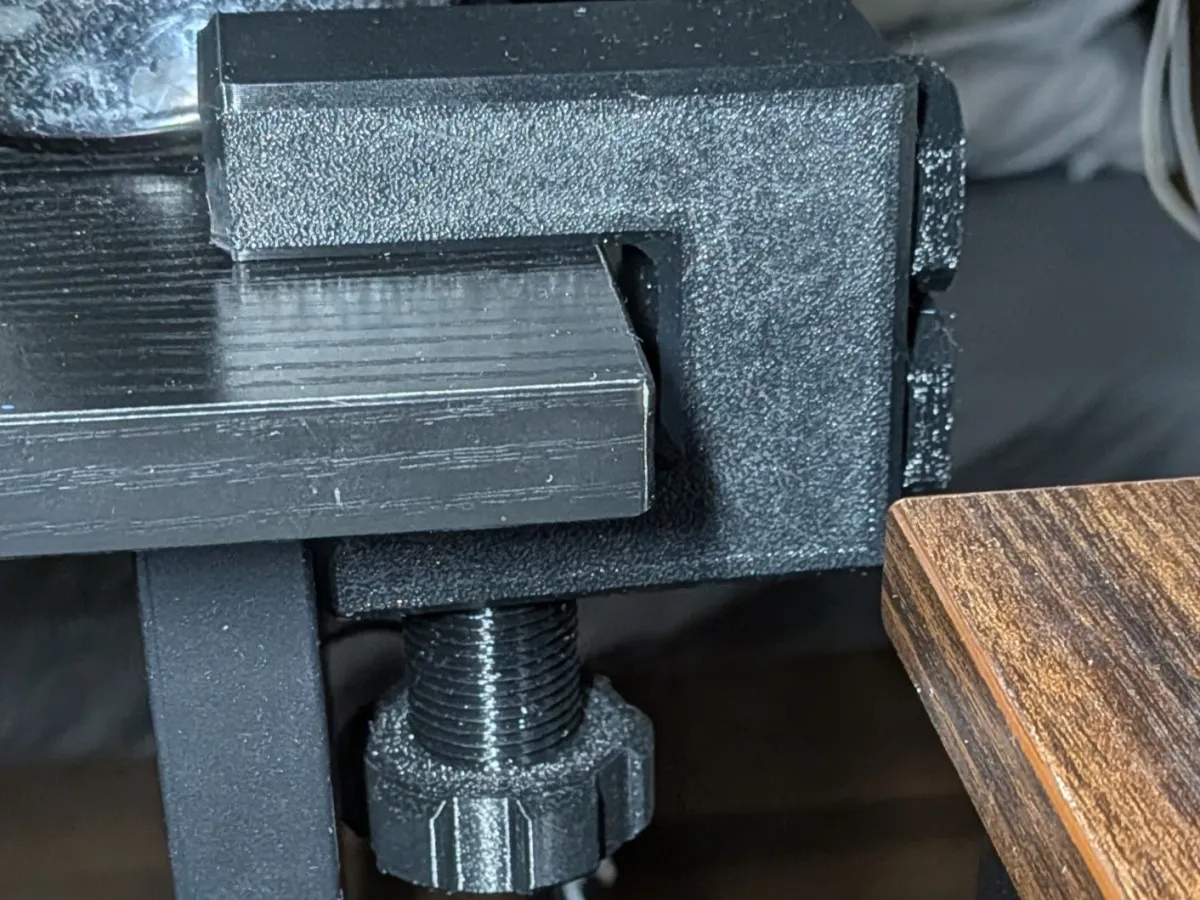

I wanted a way to directly mount OpenGrid to my desk, so made this.
It's designed for my desk, so I've added the STEP file in case you want to adjust it to your own dimensions.
I put 2 snaps per clamp for a stronger hold.



Note When Printing:

  • When you print the parts, try to fully screw the screw into the clamp once before attaching it to the desk, it might need some force. After that it should move more smoothly.



Note for STEP File:

  • The screw is a perfect fit into the clamp in the STEP file. I had to shrink it to 95% when printing for tolerances.

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted

Remixes must be shared under the same license
