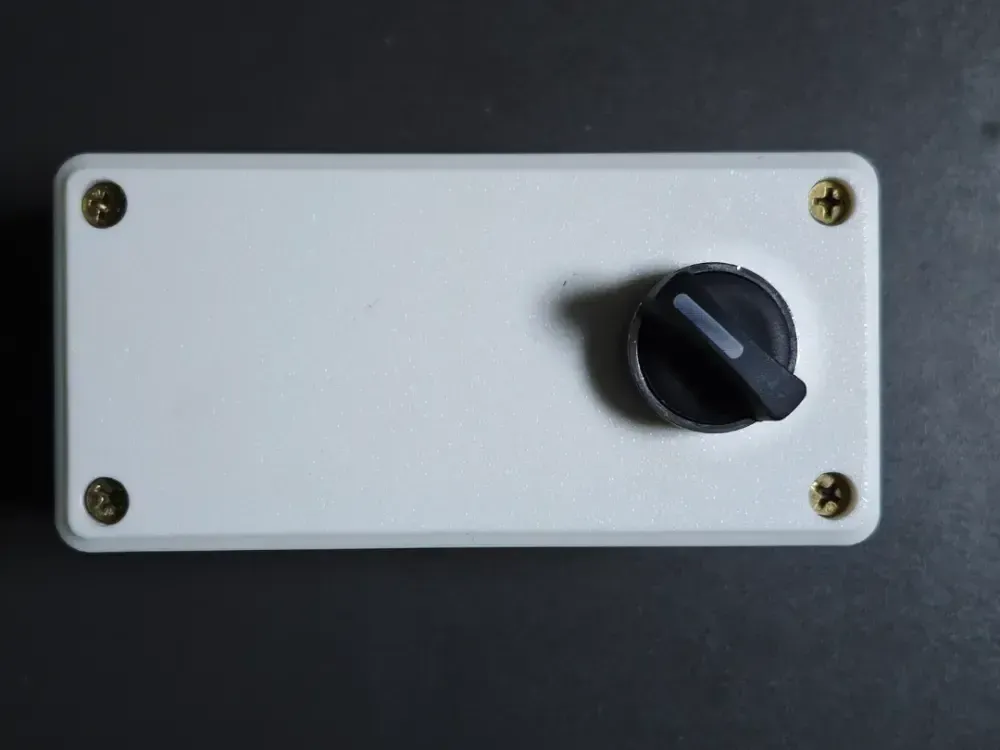

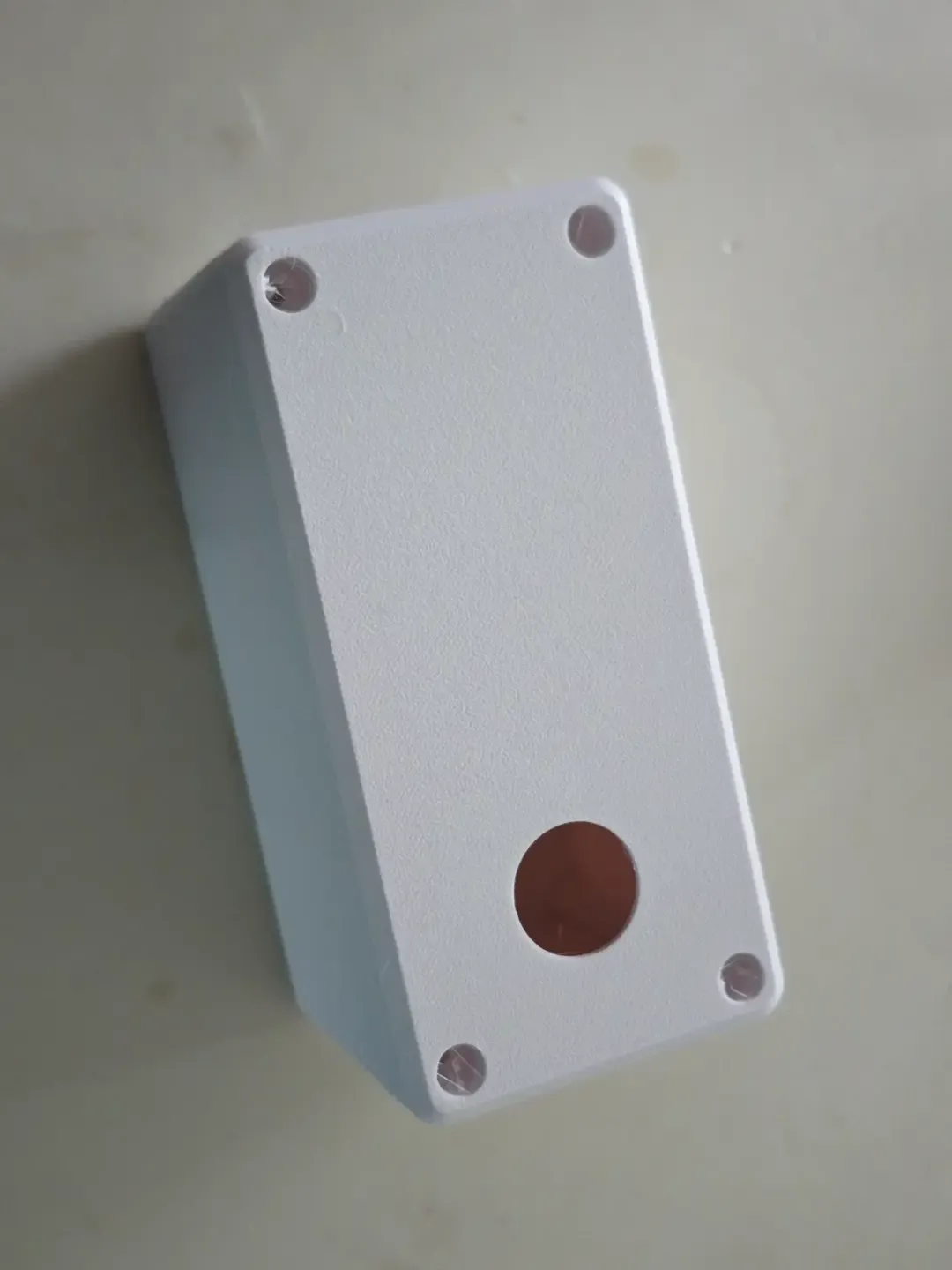

During my work, I needed to develop a set of control circuits. To enhance both aesthetics and usability, I designed a custom control enclosure capable of housing 22mm toggle switches or push buttons. The internal space is generously sized—perfect for accommodating two compact relays or other components as required.
Dimensions:
External dimensions: Length 142 mm, Width 68 mm, Height 80 mm
Internal space: Length 138 mm, Width 64 mm, Height 76 mm
If you have specific requirements, feel free to leave a message with your needs—I’ll update this model once I’ve completed the build and have some time to spare.
