Why a new Hotend holder model ?

I finally started using Gridfinity. I decided to print 3 bins for my ECC hotends (works for both ECC 1 & 2). I reviewed what was availlable on the different plateforms, and decided to print 3 bins of this model remix. Comments were good, and it was a remix of a remix supposedly adressing the shortcomings of previous model. So after asking myself if it was reasonable to print 3 directly without trying the first, I assessed my risk as pretty low.

It looked good… but the bolts could not fit in the corresponding slots… and the cables from the hotends should be arranged in a very specific way to get the hotends to fit perfectly and enable stacking (my main reason to go for gridfinity bins in the first place)… it took me between 10 & 15 minutes for each hotend to find the right setup… and the bin heights which were slightly off from the official gridfinity standards …

I spent hours trying to remix on oneshape… but the stl model was faulty and did not let me make the necessary adjustments…

SO FINALY… I decided to redesign from scratch a new model enabling perfect stacking & respecting the gridfinity standards.

I was also my first gridfinity model.

About this model

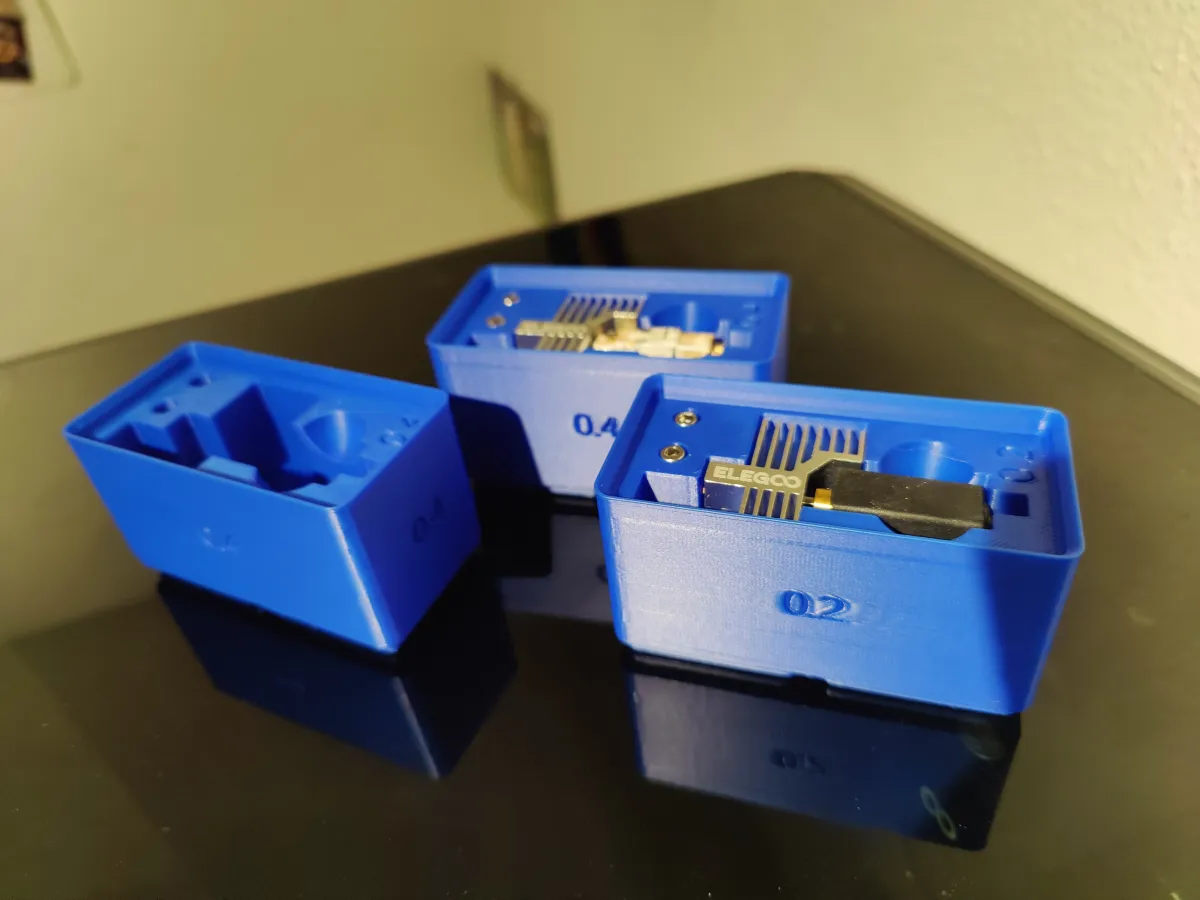

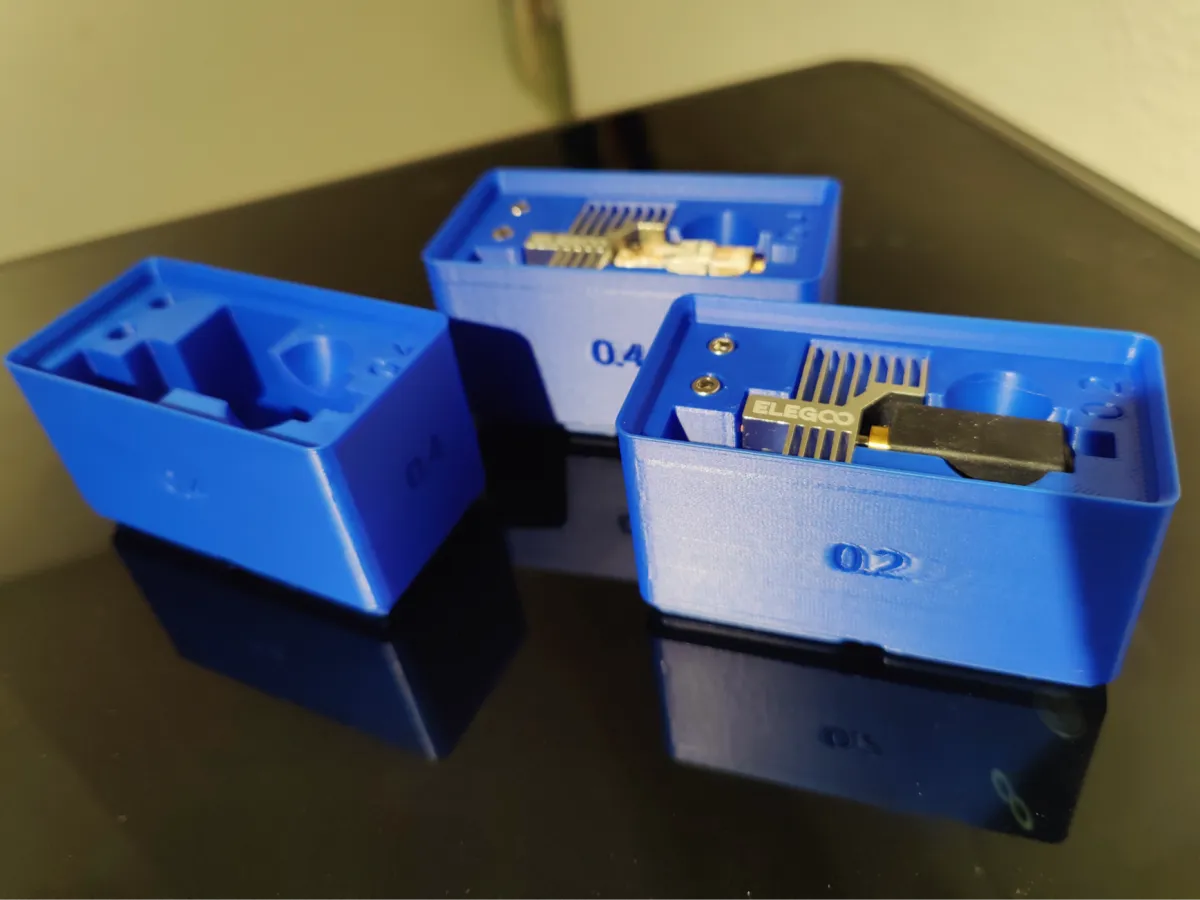

I prepared bins for 0.2, 0.4, 0.6 and 0.8 mm hotends

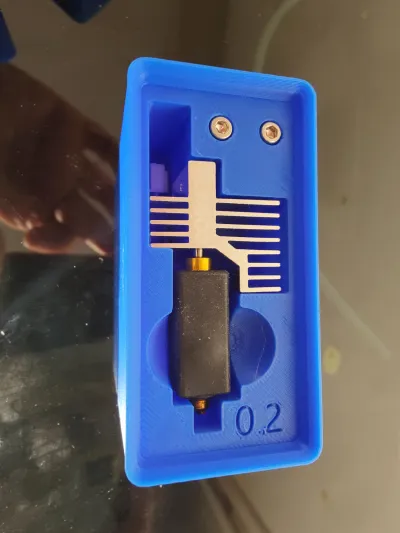

I added the nozzle size on top and on all size of the bin (as those bins are planned to be stacked).

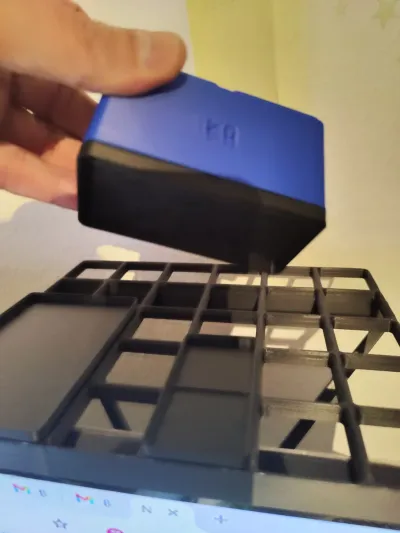

And to ease up stacking with other bins, I decided to put on the bottom of all my gridfinity bins the corresponding height of the bin in Gridfinity units.

In addition, following Ramu's suggestion, I uploaded a dedicated lid preventing dust to settle in, and prevent the hotend screws to get out, which you can download separately.

Hope you'll enjoyed it …

Because my main motivation was to prevent other users to suffer all the frustration I went through with the other model.

☕ Enjoying the design?

If you found this design helpful and would like to support my work, feel free to buy me a coffee!

👉  https://Ko-fi.com/skrattoune

If you want me to prepare bins for multiple hotends, offer me a coffe, and I will gladly adapt the bins to your specific needs.
