Update: You will find a video of the model here.

Summary

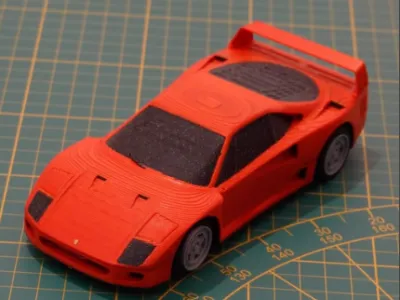

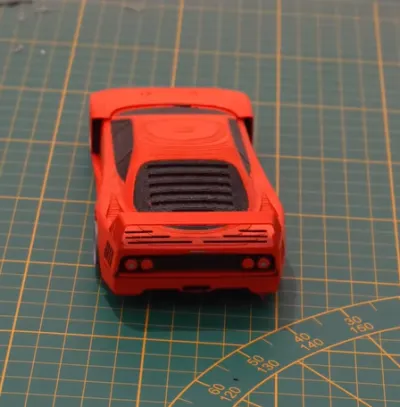

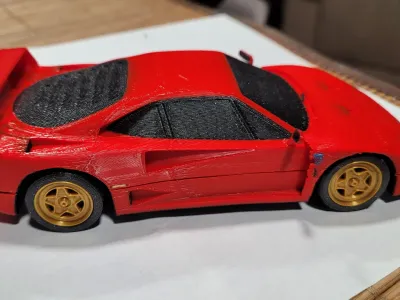

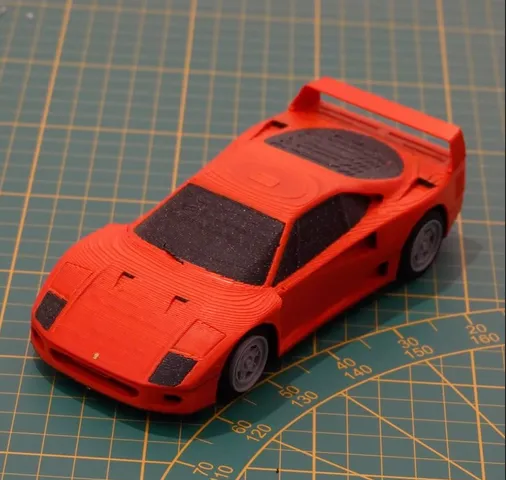

This is a model of a Ferrari F40 in a kit / gift card style. Some characteristic details can be discovered.
After printing, the model can be assembled with the help of integrated connectors.
The wheels can be turned, but the car will not roll.

Versions
The complete set is available in a STL file for a one-color print.

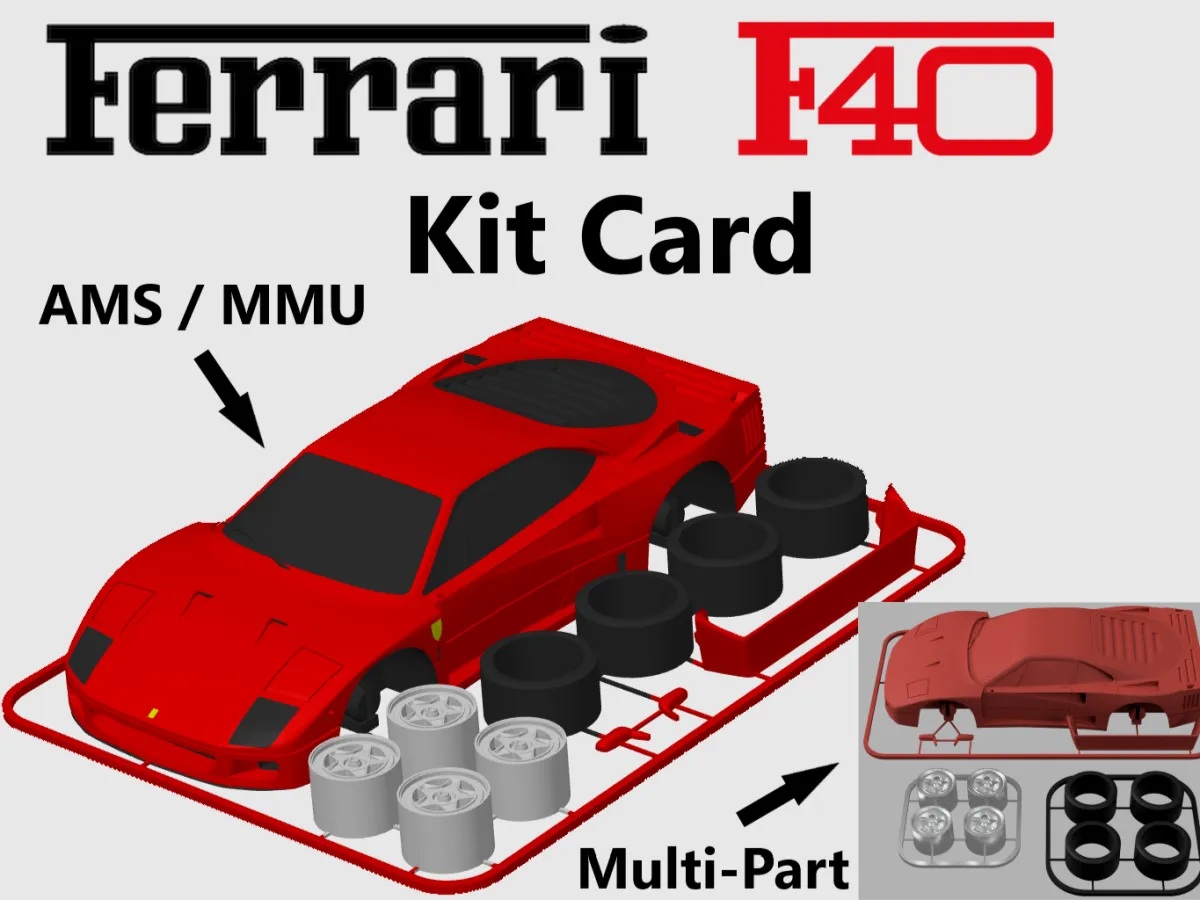

There is a 3MF-file with predefined colors intended for users of AMS or MMU.
Otherwise, the body, tires and rims and the tires must be printed separately.

Print
Print with 0.15 layer hight or lower to bring up the details.
No supports are needed.
Use 3 perimeters and 10% infill.

Post processing
The small struts can be removed really quickly and cleanly using a side cutter.

Assembly
The kit is easy to assemble. All parts fit together very well.
If a part should be loose, superglue can be used.

Dimensions
The fully assembled model has the following dimensions
Height: 40.8mm
Depth: 162mm
Width: 75.8mm (including side mirrors)

The complete kit card has the following dimensions when printed
Height: 35.3mm
Depth: 172mm
Width: 130mm
Scaling will work in a low range due to the tolerances.

Other models
I will also try to publish other car models. Stay tuned!

I hope you had as much fun printing and assembling it as I did :-)

Do you like my work? I would be very happy if you would support my work on Ko-fi.

Differences of the remix compared to the original

• models disassembled into individual parts and arranged
• connectors added
• connected in kit card style and framed
• painted for AMS / MMU
