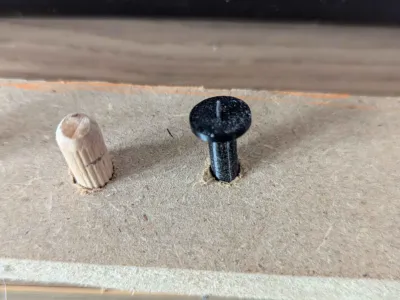

This is an accessory for wood-work. it is meant for dowel joint to make a mark with the nail to perfectly align the first hole for the dowel joint with the second. with this mark you can drill perfectly aligned dowel joint holes and make the perfect alignment. this post contains two type of dowel joint accessory : one is for 6 mm dowel joints and the other is for 8 mm dowels. the nail you put inside the accessory is a small standard nail head diameter is 3 mm.
printed in PLA.

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    nail
    1
    nail head diameter : 3 mm / nail diameter 1.3 mm / length: 21 mm
