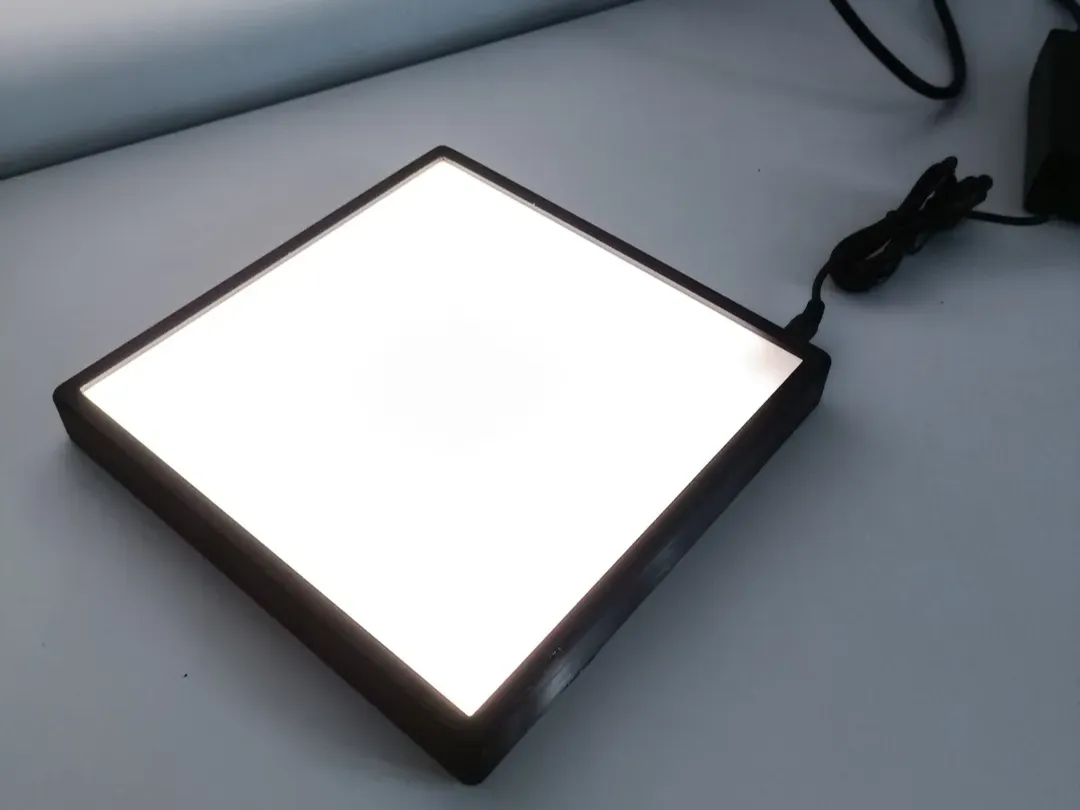

A light pad designed and built for viewing and analyzing negative / positive film photos. It can be used also for drawing.

Hardware:

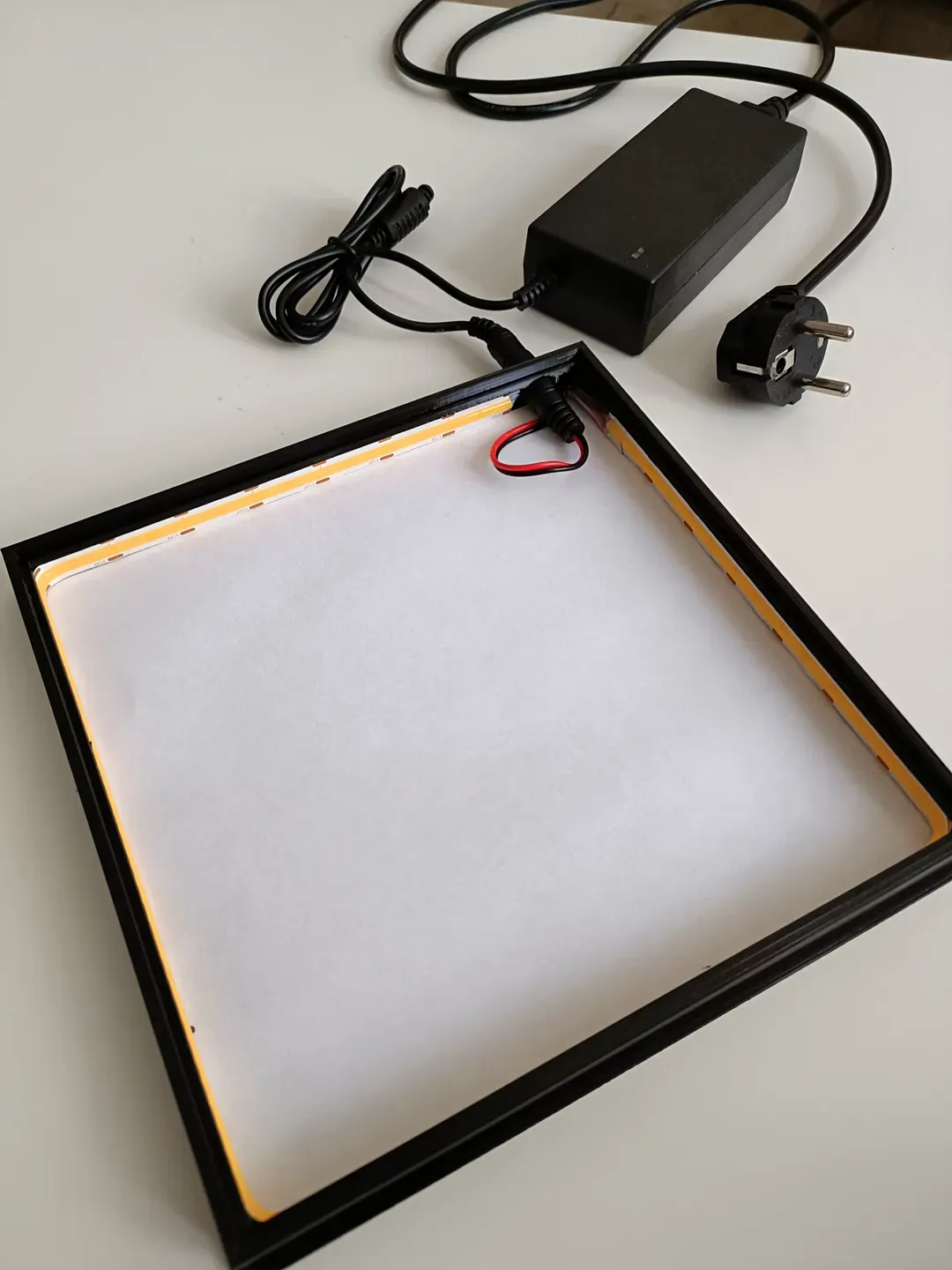

LED Strip
Power Source
186x186x3 mm white acrylic glass/plexi/PMMA or any 3mm thic plate for a light screen
sheet of paper

Total dimension - 20x20cm

Light screen dimension - 18,3x18,3cm

I've added a stl of a plate so You could try to print it with white filament but i have no idea if it would work.

It is recommended to put a sheet of paper at the bottom for better light spread.

Printed in PET-G 0.2mm layer height but PLA should be enough.

Print bottom part with supports
