Centauri Carbon filament sensor adjustable offset
Print Profile(0)

  • Earn points by adding print configurations

3

20

682

33

Released 2025-09-15
Details
Files(4)
Makes & Comments (0)

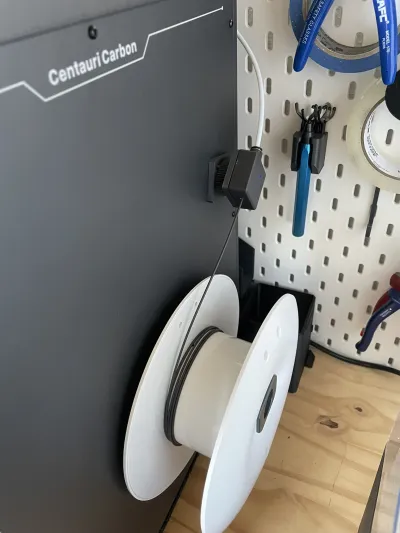

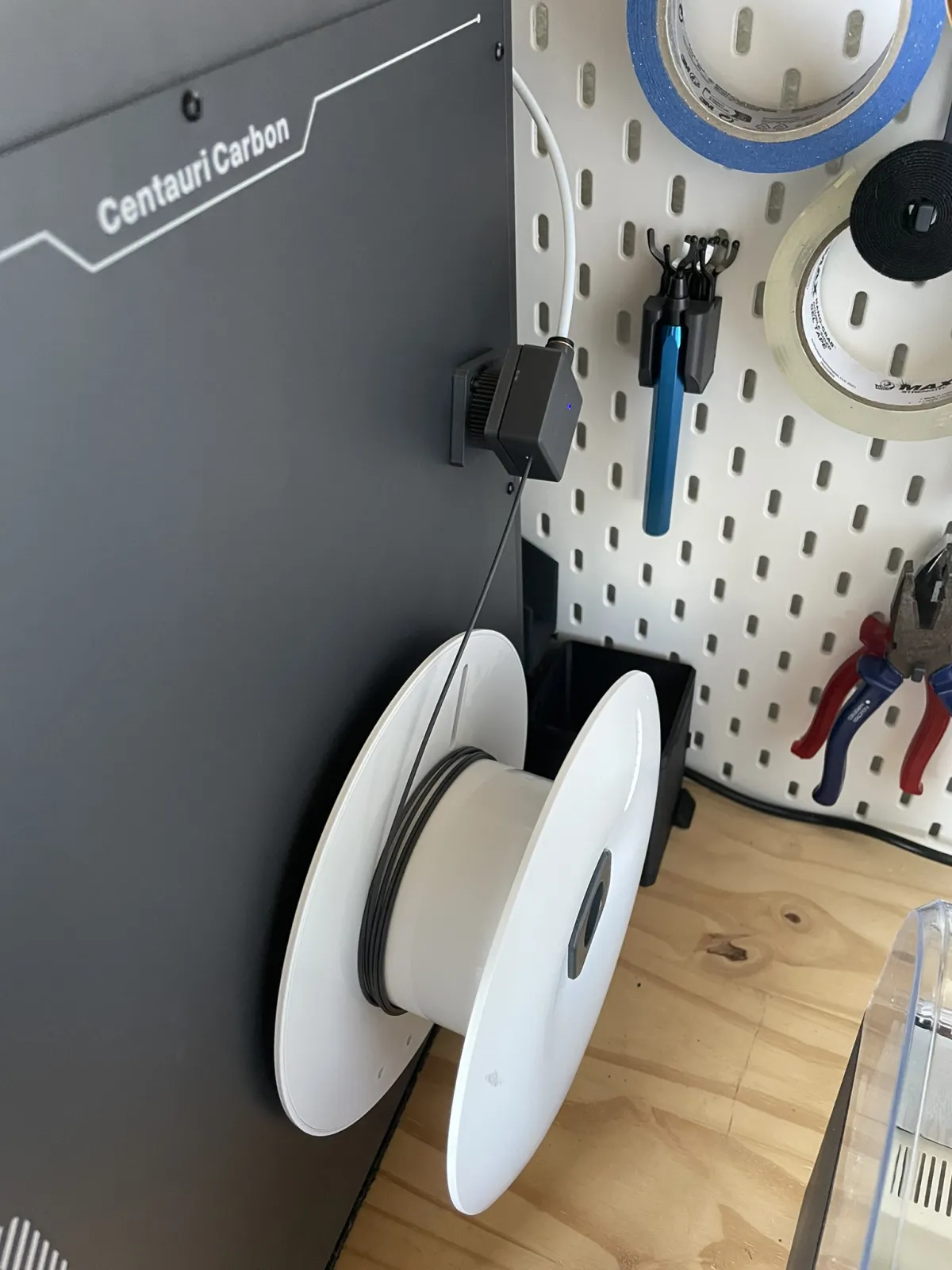

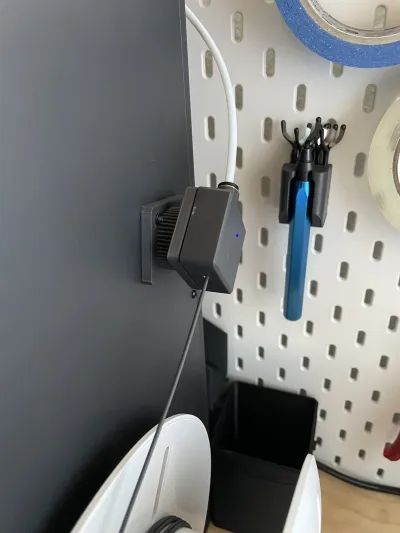

Weekend project to have a way to better adjust the filament sensor position on the Centauri Carbon Printer.

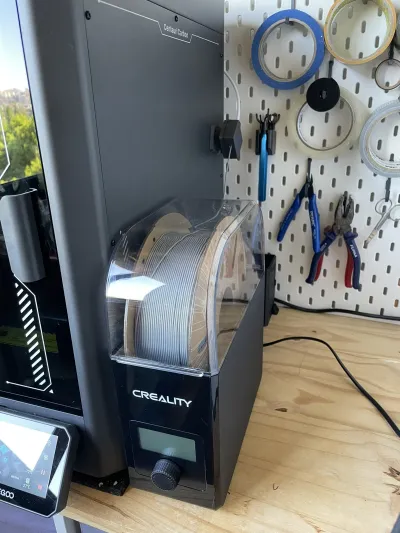

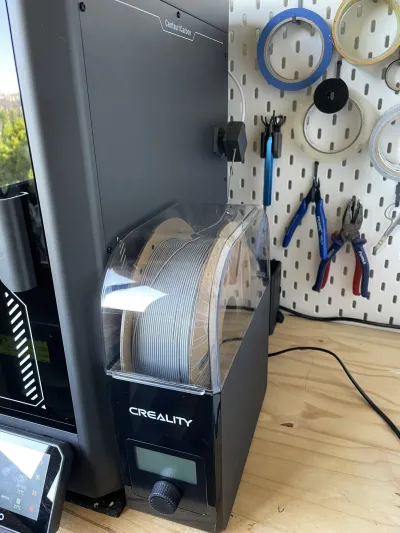

Great to adjust to different types of “filament delivery systems”.



One-directional mechanism has a better feeling but the bi-directional is more useful.



This model was designed for the first batches of the Elegoo Centauri Carbon where the sensor was directly screwed to the side panel. Newer versions might have different mounting points.



Hardware:

Elegoo CC side panel mount:
2 - M3*8 Screws
2 - M3 Nuts
Filament sensor mount
2 - Original Screws
Center shaft
1 - M3*8 Screw
Printed in PETG for better durability.

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    M3*8 Screws
    3
  • 2
    M3 Nuts
    2
  • 3
    Original Screws
    2

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted
