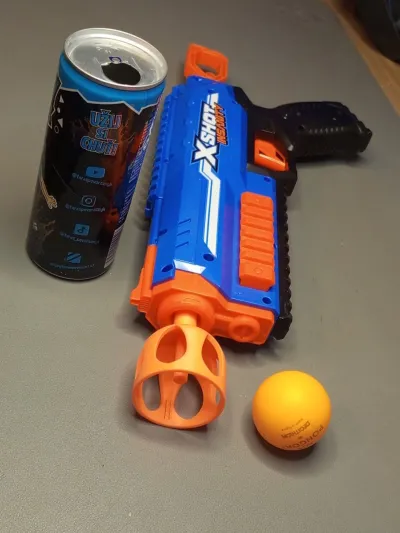

Nerf/X-Shot to Ping Pong Ball Adapter – Air-Powered Cannon!
🎉 Turn your blaster into a ping pong ball launcher (4m range!)
Finally – an adapter for 40mm ping pong balls (because why settle for darts when you can fire 2-pounder cannon-sized rounds?).
Boost Me (for free)
🚀 The Struggle Was Real

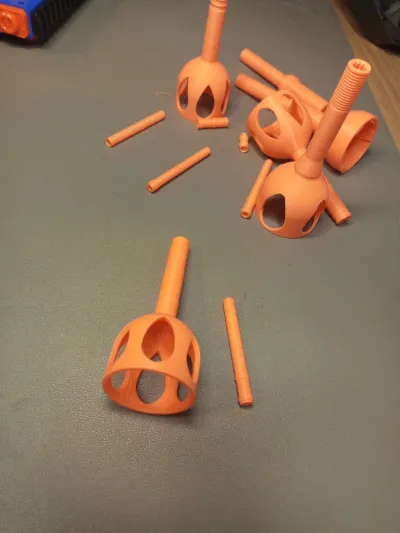

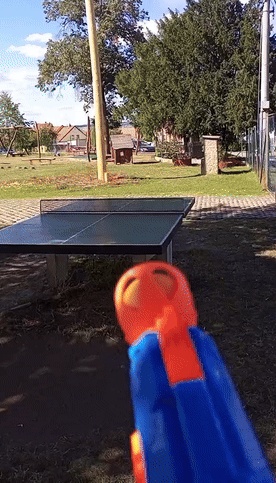

After 6+ failed prototypes (see photo outtakes), this design balances air seal and minimal friction. The result? ~4m range at 35° angle – but I dare you to beat that!
🔧 How It Works
-Print the adapter (low layer height = smooth bore).

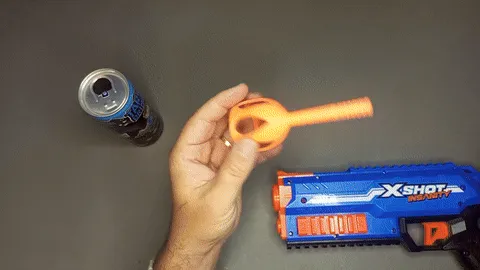

-Post-process: Cycle the piston (as shown in the video) to loosen it and dry-fire 5–10 times to seat the parts
-Insert into your Nerf/X-Shot barrel.
-Load & launch ping pong balls!
⚠️ Critical Disclaimer
• NOT A REAL WEAPON – For recreational use only.
• Wear safety glasses
• No real ammo – This is for 40mm ping pong balls ONLY.
• Use at your own risk
🖨️ Print Settings
- Material: PLA (best dimensional accuracy).
- Layer height: ≤0.15mm (smoother piston glide).
- Speed: ≤50mm/s (for precision).
- Infill: 15% (lightweight but strong enough).
📢 Call to Action
👉 DOWNLOAD and unleash your inner artillery commander!
👉 SHARE YOUR RESULTS – Can you beat 4m? Show me your mods!
Want a better version? Improve it and tag me – I’ll feature your design!
