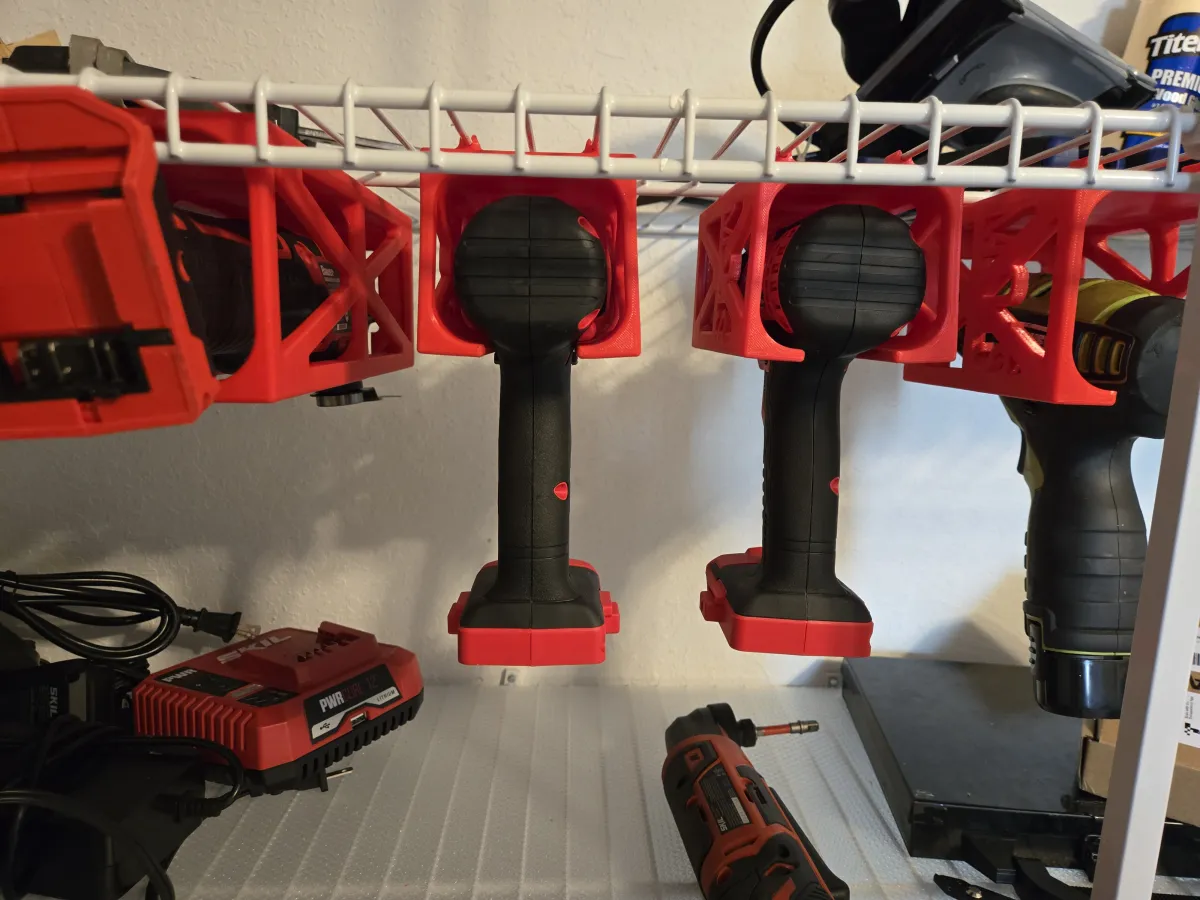

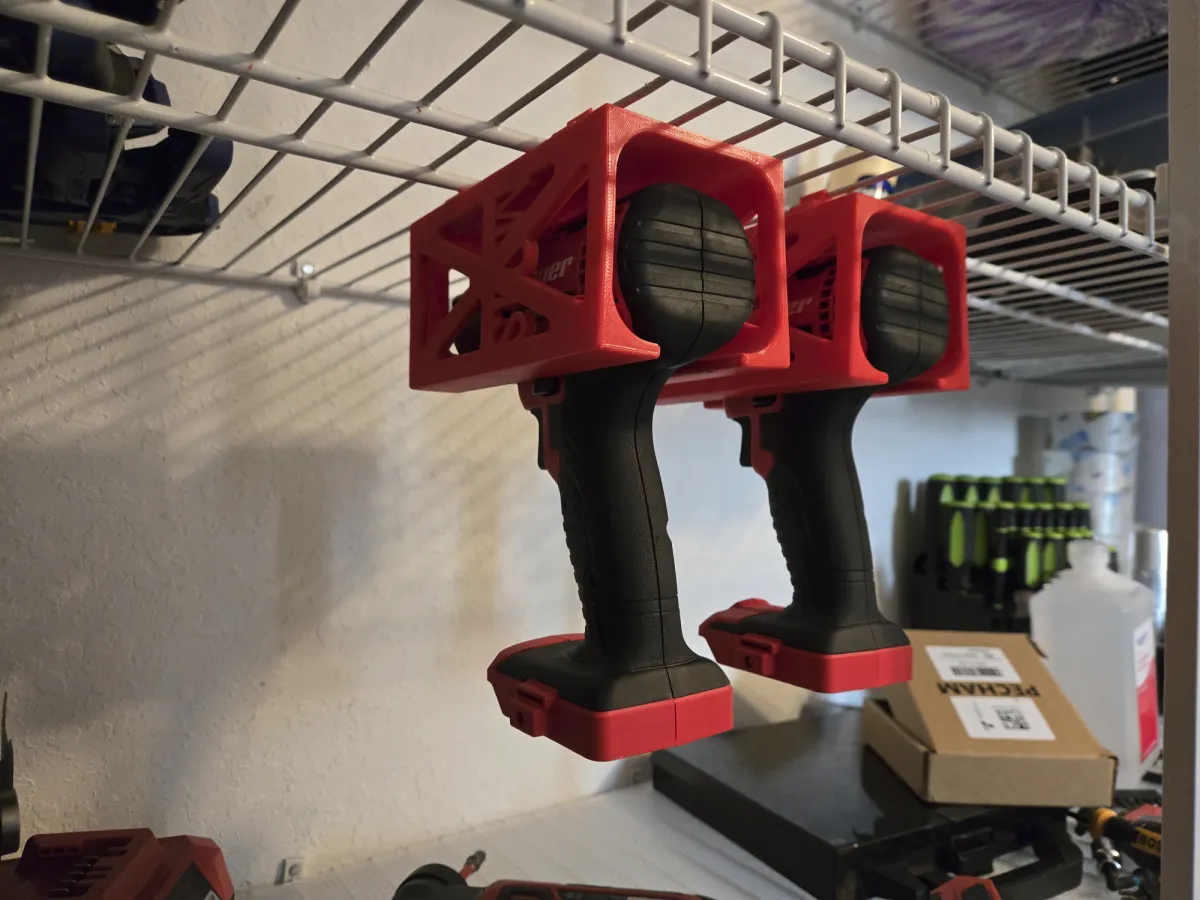

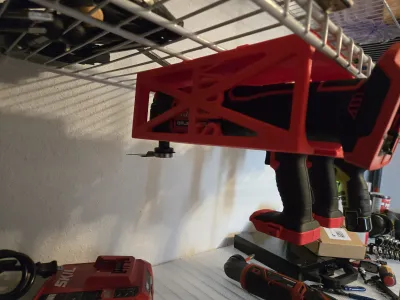

Various sizes of power tool holders that clicks directly into common Wire shelving (no additional fasteners needed).

They are all designed to fit wire shelving that consist of 3mm diameter "wires" that is spaced 25mm apart (this seems to be a common size of wire shelving even in US).

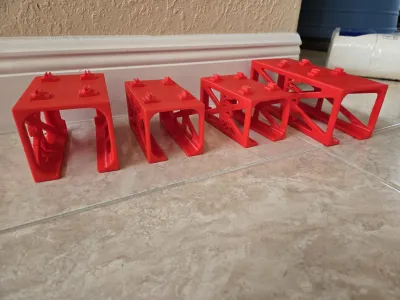

There are 4 versions with these inside sizes (mm)

  • Width:70 Height:65 Depth:150
  • Width:83 Height:78 Depth:150
  • Width:70 Height:65 Depth:245
  • Width:83 Height:78 Depth:245

Should be printed in the alignment they are saved in the .STL files. But you need to add support for the portion that grabs onto the wire shelving. I recommend normal (SNUG) support for those areas only (see picture). The rest of the holder prints fine with no support, but your printer need to be able to bridge fairly large (50mm) gaps, as far as I know all modern printers do.



Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted

Remixes must be shared under the same license
