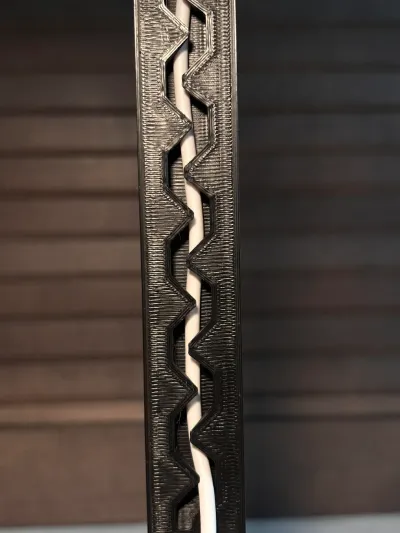

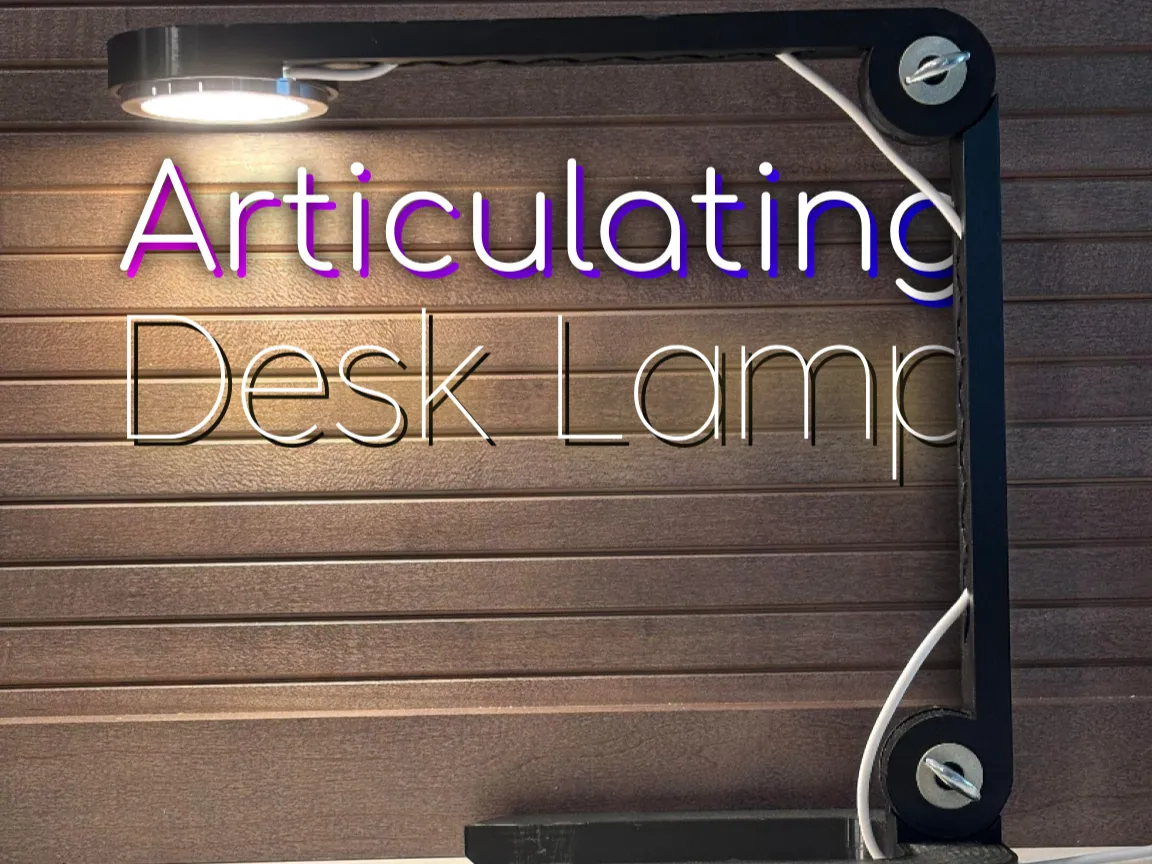

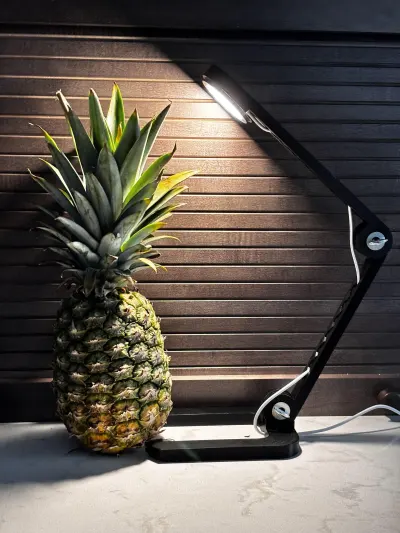

A simple but elegant desk lamp with a special channel designed to neatly hold and conceal the wiring. Great for Reading and Studying.

Parts

This model uses:

• the maker supply led lamp kit MH000 https://us.store.bambulab.com/products/led-lamp-kit-001
• 2x ¼ 20 1 ½ inch thumb screw https://www.lowes.com/pd/Hillman-1-4-in-20-x-1-1-2-in-Thumbscrew-Drive-Machine-Screws-2-Count/3012566
• 2x ¼ 20 hex nut https://www.lowes.com/pd/Hillman-1-4-in-x-20-Zinc-Plated-Steel-Hex-Nut-5-Count/3012006
• 2x ¼ inch flat washer https://www.lowes.com/pd/Hillman-1-4-in-Zinc-Plated-Standard-SAE-Flat-Washer/30585572
• 2x ¼ inch rubber washer https://www.lowes.com/pd/Hillman-2-Count-0-250-in-x-1-25-in-Rubber-Standard-SAE-Flat-Washer/4582583

Assembly

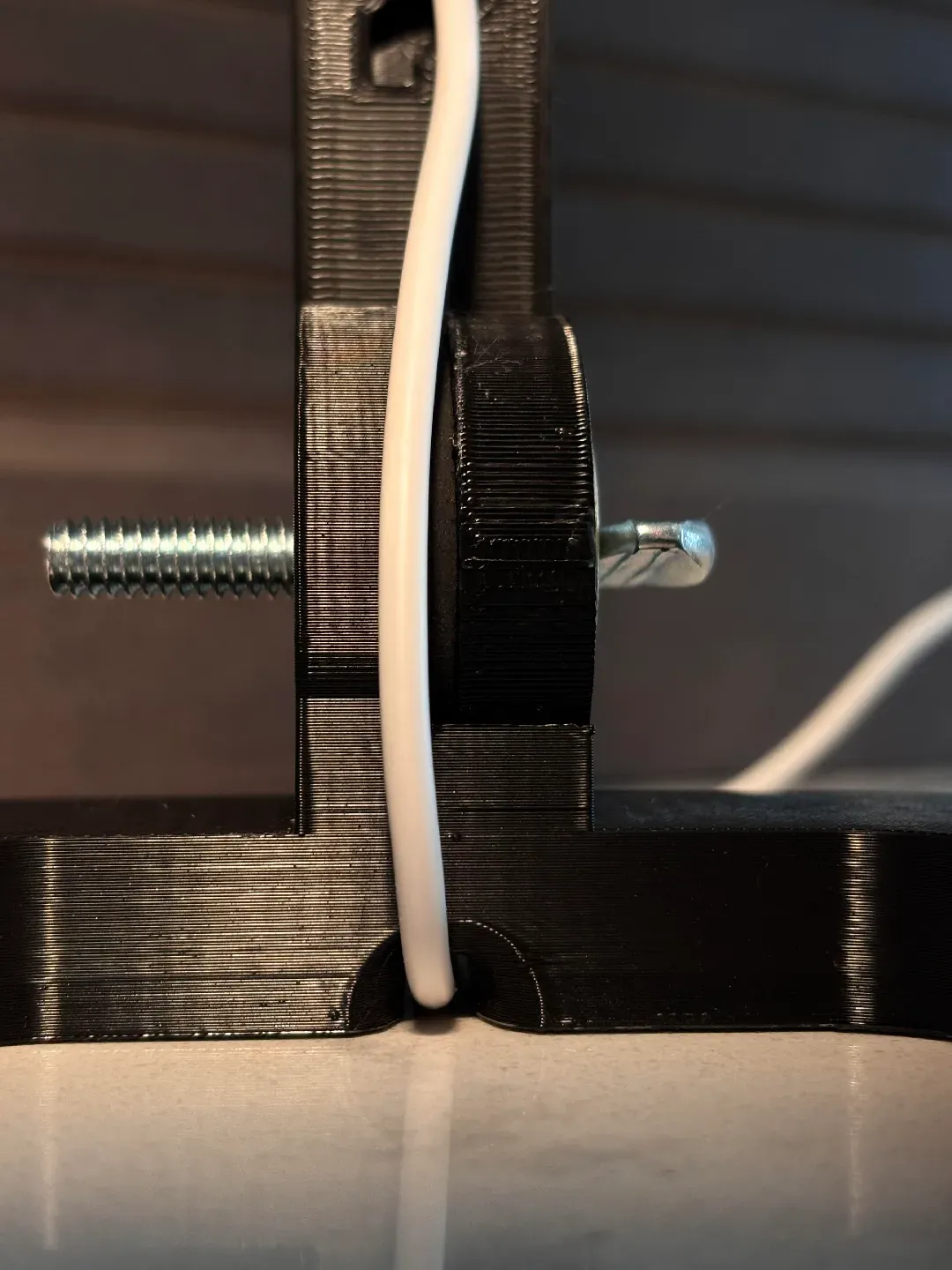

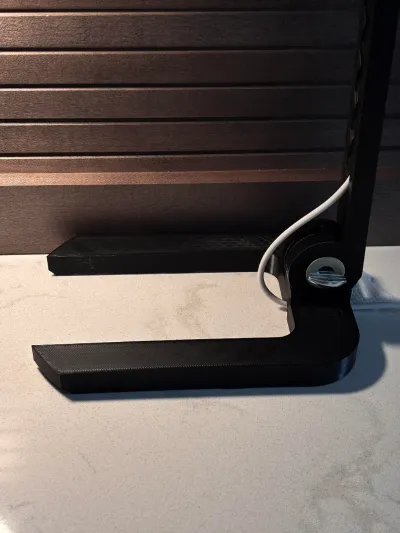

Screw the led light into arm Section 2, heating screws with a soldering iron if they don go in easily. Screw the diffuser onto the light. Insert the light's wires into the slot on arm Section 2. screw arm Section 1 onto arm Section 2 using a nut, rubber washer, metal washer, and thumbscrew. Make sure the wire slot on Section 1 is on the same side as Section 2. Insert the light wires into Section 1. Screw the arm assembly onto the base.

Enjoy!
