4L Rice Bucket Bracket
Print Profile(1)
  • 0.2 mm layer height, 2‑wall walls, 15% infill density

    1-disc

    PETG

    Designer

1

1

10

1

Released 2025-08-20
Details
Files(1)
Makes & Comments (0)

Updated on November 4, 2024

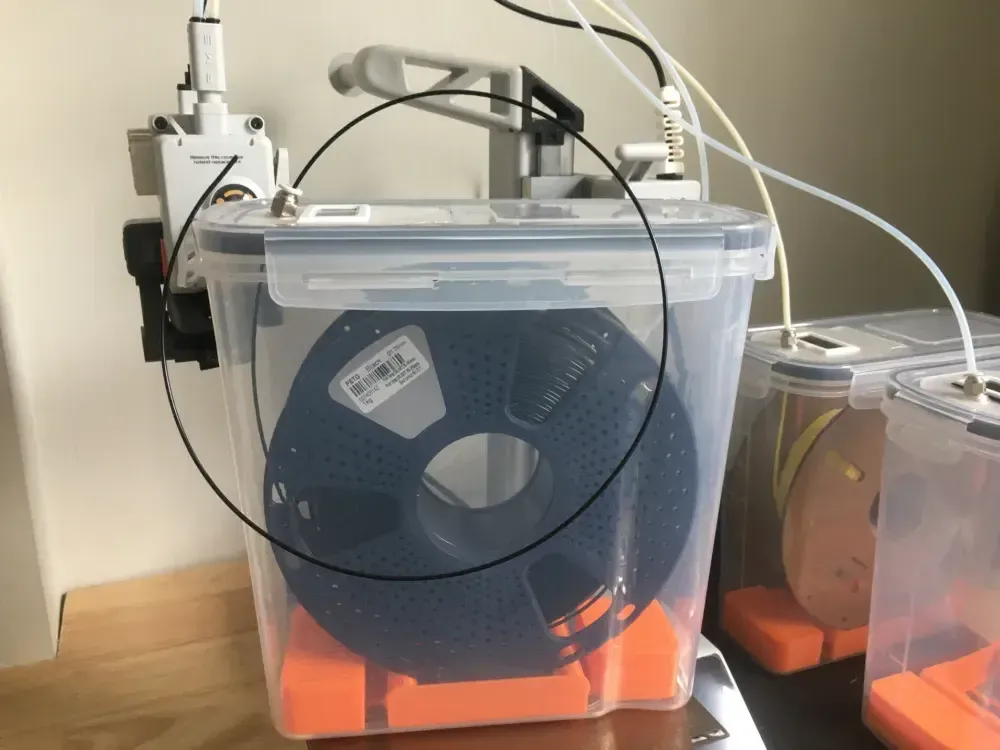

Modified the top cover of the drying box by adding snap‑locks to prevent the lid from loosening.



Due to the height limitations of the 4L rice bucket, when approximately 200g of material remains, the lightweight nature of the entire material tray can cause the feeding motor to pull the tray off its mounting bracket, jamming against the top cover and leading to material jams.

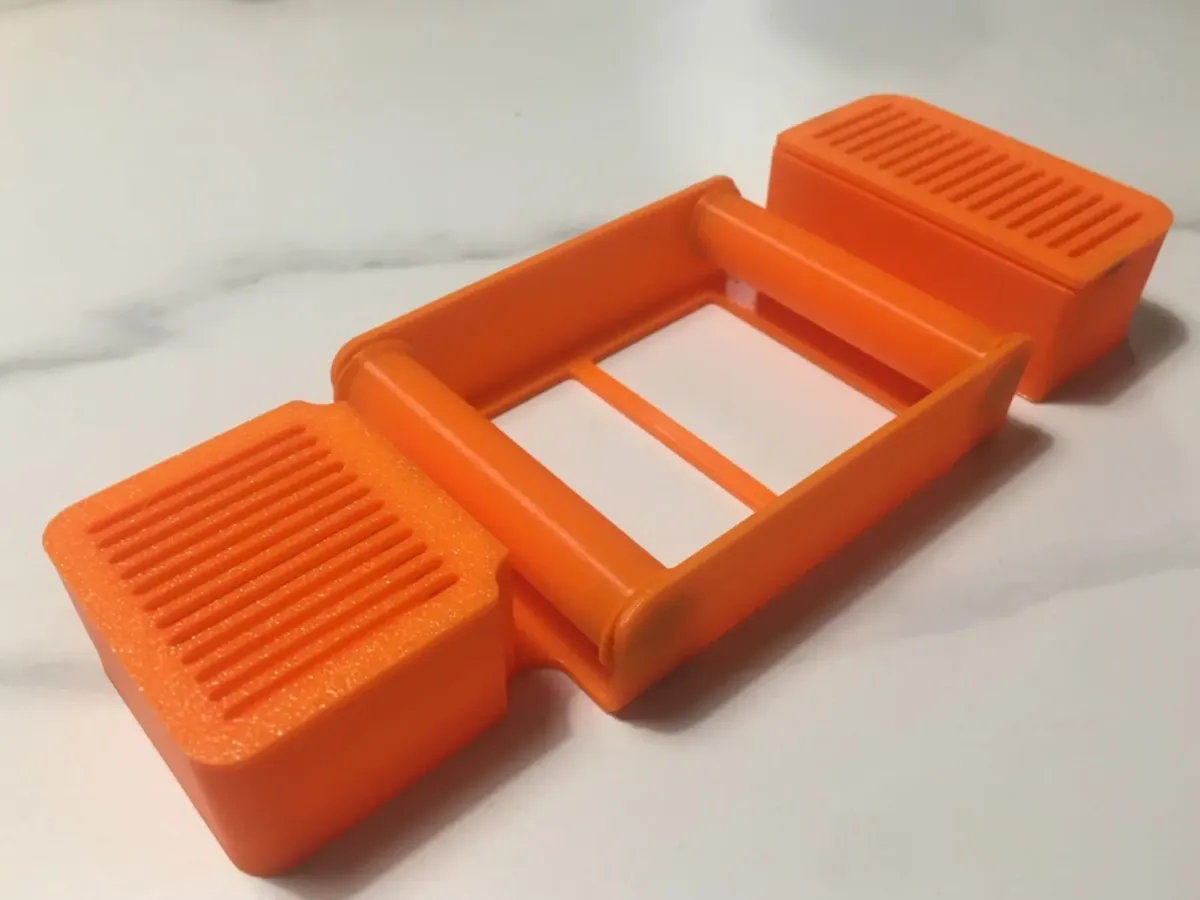

Building upon the original design, the following modifications were made:

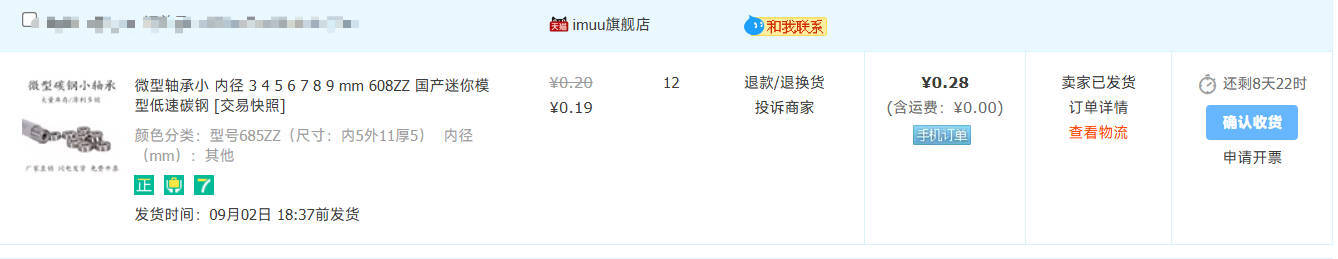

  • Replaced the 608ZZ bearing with a 685ZZ (5*11*5)
  • Added an additional drying box

You’ll need to prepare the following components:

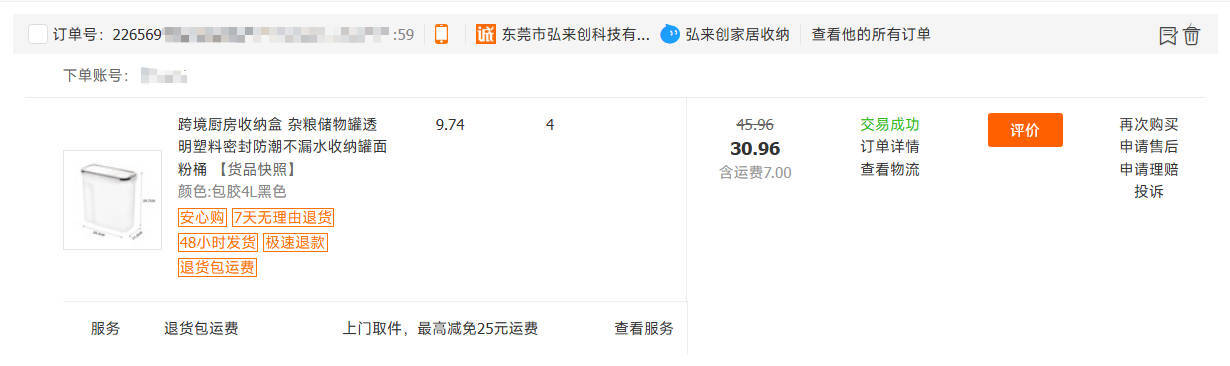

  • 4L Rice Bucket (this bucket features a wider diameter than standard 4L rice buckets on the market and delivers exceptional sealing performance)
  • 685ZZ Bearing

We recommend printing a custom top cover for the 4L rice bucket to securely support the ball valve interface and further minimize the risk of material jams. Click here to view the design.

If you like this model, please show your support—it means a lot to me~



Originality of the Model

The author declares that this work is their personally remixed model

Original creator:
Dynarun
Adaptation source:https://makerworld.com.cn/zh/models/125327-dyna-dry-box-filament-box-4l#profileId-7656

This model is licensed under the following terms:

Standard Digital File License

This work is licensed under a Standard Digital File License. Digital files have a strict non-commercial, personal use only license.

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital file or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including remixes of this object). You can not host these files on other digital platforms, web stores or cloud repositories. The objects may not be used in any way whatsoever in which you charge money, collect fees.
