This is the second version of this project with a "fancier" bin and also the bin part is larger than the original.

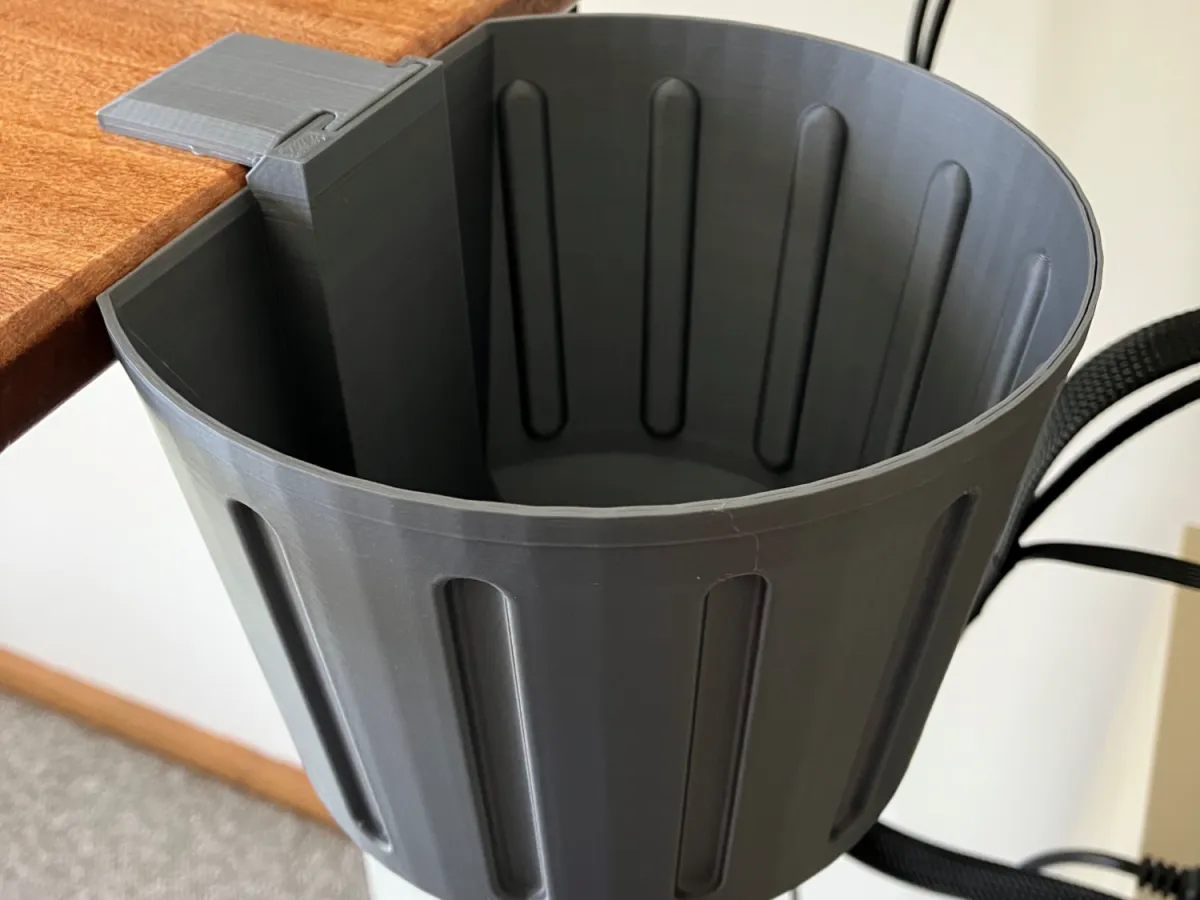

Removable bin, trash can, or storage for whatever you like, that clips onto the edge of your desk.

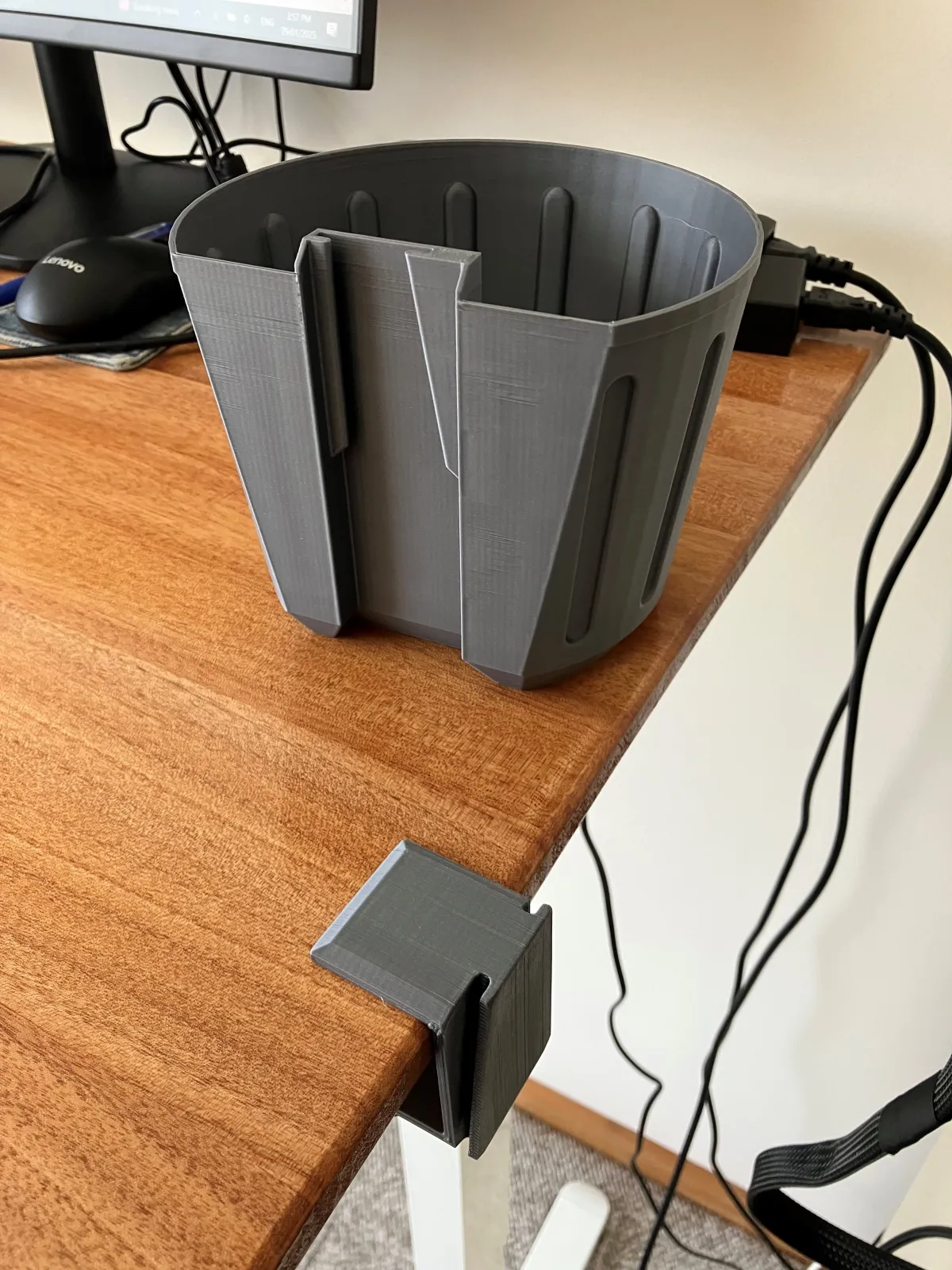

Simply slides up off the bracket when it's time to be emptied.

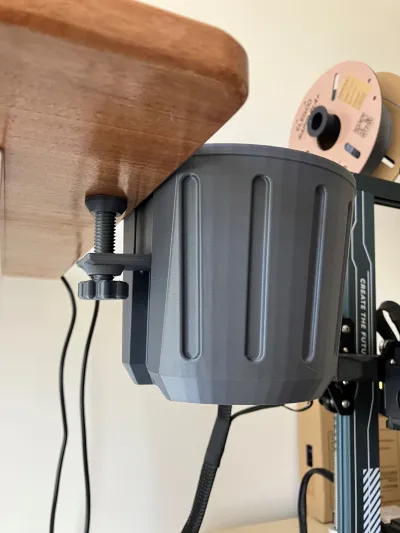

The length, width, depth of the bin is 160x135x120mm . The desk bracket is suitable for desktop thicknesses of 17-42mm (using: "Desk Bracket"/"Bracket Screw"/"Screw Pad" combination, see below for other thicknesses/combinations).

Notes:

In your slicer, orient the bin part with its base on the print bed.

For the desk bracket, I printed with angled "slider" side facing up (straight "slider" facing the bed) and used a brim, as the surface area on the printer bed is quite small. For the other parts no rafts were used/needed.

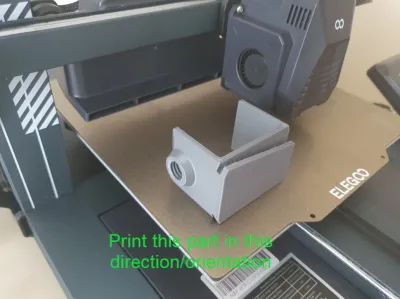

Pic in the gallery shows the best orientation/direction to print desk bracket

1) “Bracket Screw longer”. The screw is 15mm longer than the standard, so should tighten down to a minimum of 2mm (2-42mm, using the standard "Desk Bracket").

2) “Desk bracket for screws”, to mount the bracket directly to the side of a bench using wood screws, instead of clamping. I would suggest a substantial brim to ensure adhesion to the plate.

3) "Desk Bracket up to 55mm", this would allow for desk thicknesses of 32-55mm using the "Bracket Screw"/"Screw Pad" combination, or 17-55mm using the "Bracket screw longer"/"Screw Pad" combination.

The 2 plates prepared and included here are for the standard parts required to complete the model. If you need one of the other brackets screws you should slice them separately (I suggest 3 walls minimum).

If you think the design is ok, hit the like button. Or if you've got some improvement ideas, or anything else, leave it in the comments.

If you print it, leave a pic in the Makes, I'd like to see it.
