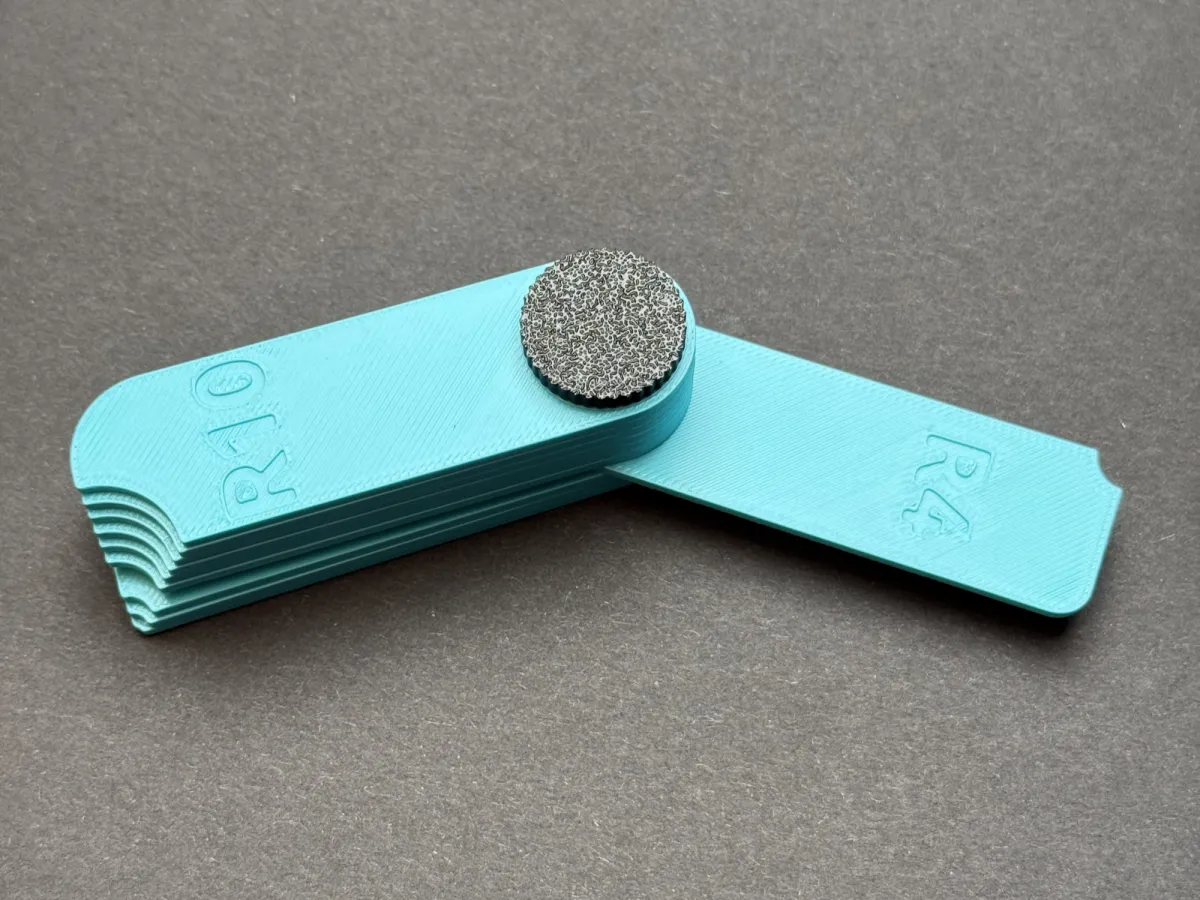

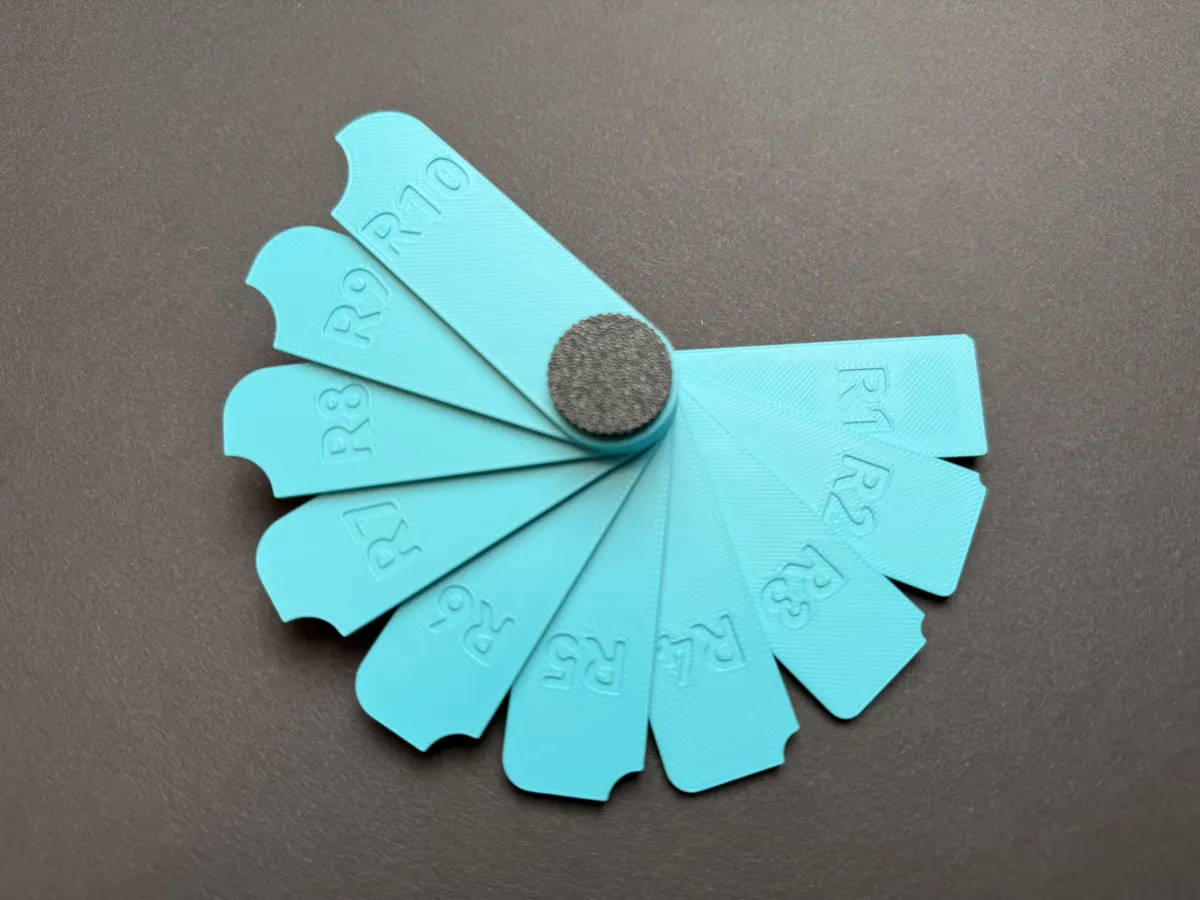

This simple yet highly practical radius gauge is ideal for measuring radii ranging from 1 mm to 10 mm, in 1 mm increments. Both inner and outer radii can be checked for each measurement step.
Assembly:
The included 3D-printed screw securely holds the templates together, while allowing enough clearance for smooth and easy movement of the individual parts.
Tip for multi-color printing:
If you want to print the screw and templates in different colors, it's best to use two separate build plates. This helps to avoid unnecessary filament changes.
