PlanetCNC
Bowden Extruder
PlanetCNC Bowden Extruder
Print Profile(0)
3
0
Released 2025-07-23

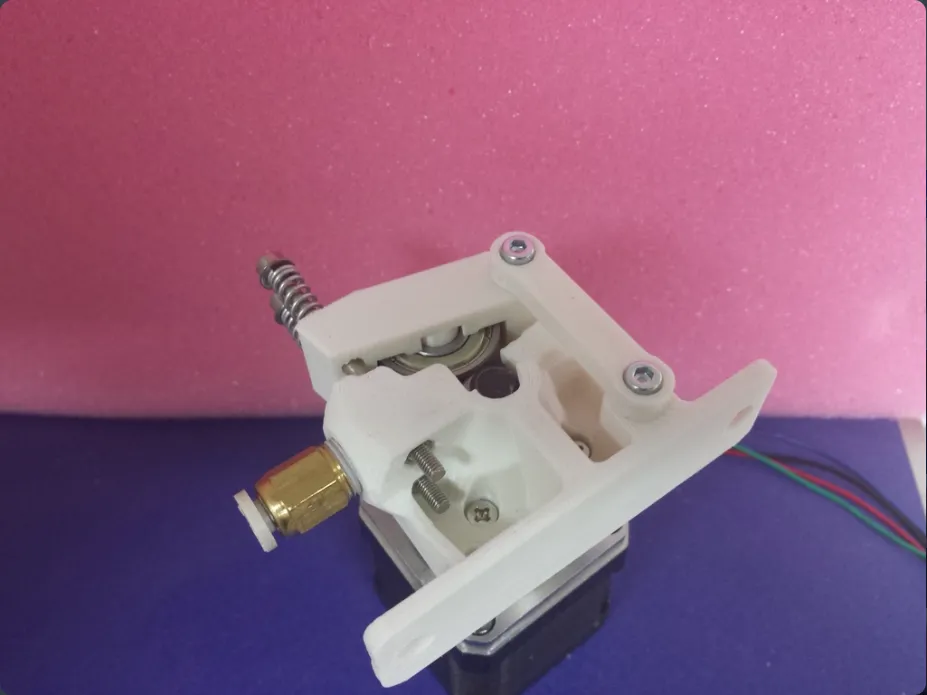

Bowden extruder for direct drive or with planetary gearbox. Designed for 1.75mm filament.
It uses 608-ZZ skate bearing (8x22x7mm) for filament pressure.
Optionally you can use MR105ZZ bearing (5x10x4mm) with motors with 5mm axis. This bearing goes to axis end. Motors with 8mm axis do not need bearing.
Available in PlanetCNC web shop.
Originality of the Model
The author declares that this work is their personally shared model
Original creator:
PlanetCNC
Reprint source:https://www.thingiverse.com/thing:205206
This model is licensed under the following terms:
Credit must be given to the creator
Models(4)

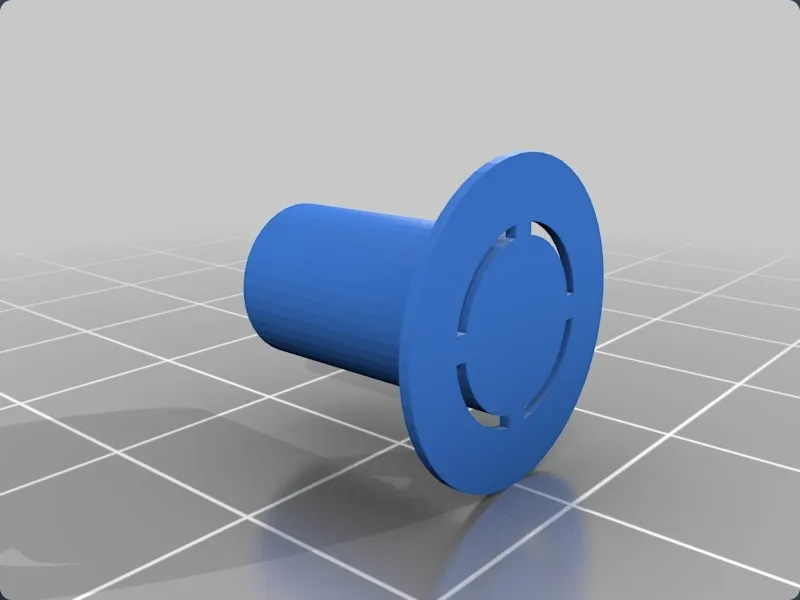

BearingAxis.STL'%3e%3cpath%20id='Vector'%20d='M13.6663%201.33331H2.33301C1.78072%201.33331%201.33301%201.78103%201.33301%202.33331V13.6666C1.33301%2014.2189%201.78072%2014.6666%202.33301%2014.6666H13.6663C14.2186%2014.6666%2014.6663%2014.2189%2014.6663%2013.6666V2.33331C14.6663%201.78103%2014.2186%201.33331%2013.6663%201.33331Z'%20stroke='%23808080'%20stroke-linejoin='round'/%3e%3cpath%20id='Vector_2'%20d='M11.3333%201.33331V7.33331H5V1.33331H11.3333Z'%20stroke='%23808080'%20stroke-linejoin='round'/%3e%3cpath%20id='Vector_3'%20d='M9.66699%203.66669V5.00002'%20stroke='%23808080'%20stroke-linejoin='round'/%3e%3c/g%3e%3cdefs%3e%3cclipPath%20id='clip0_3212_168684'%3e%3crect%20width='16'%20height='16'%20fill='white'/%3e%3c/clipPath%3e%3c/defs%3e%3c/svg%3e)
