A mixer/agitator for airbrush paint bottle.

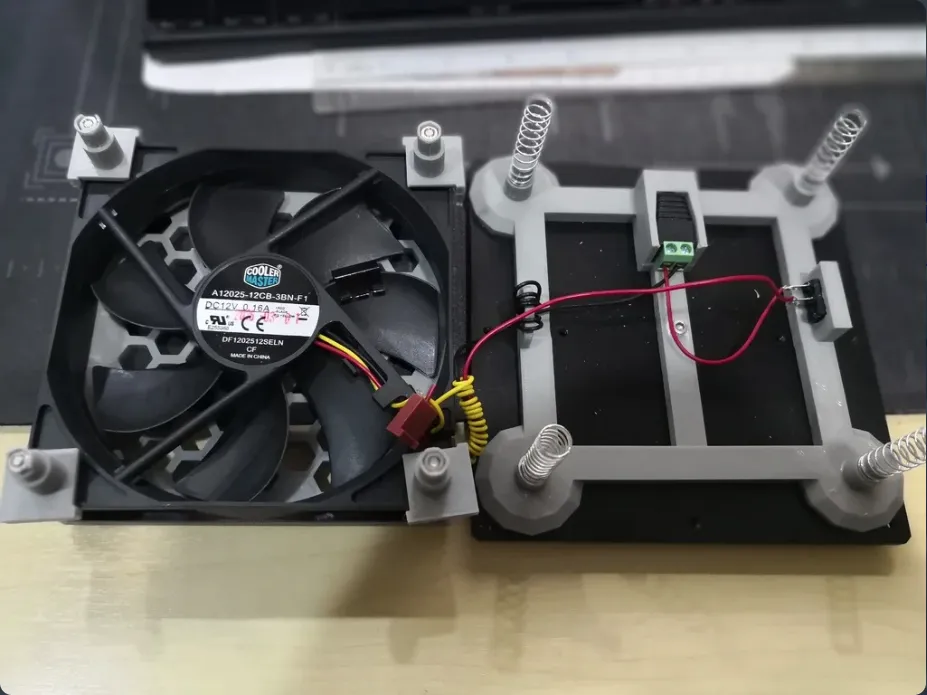

The original designer WaveSupportApparatus used a 140mm fan. This is a 120mm fan.

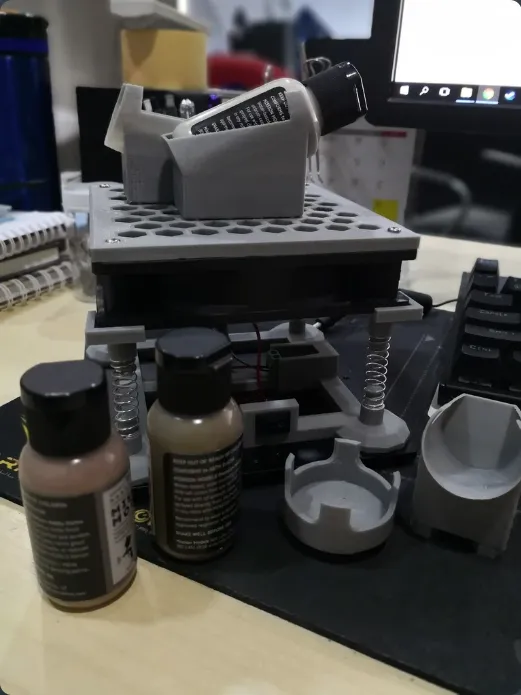

Plus I made the top modular so it can change to different size bottle.
There's 2 version for the base. One with a 21x15mm rocker holder and the other is a 15x10mm rocker.
Everything is powered by a 12v power adaptor(i used an old HDD power adaptor).
There is also a holder for a potentiometer if you want to control the vibration effects.
Thing required:
12mm PC fan
4x compression spring - 9mm*35mm
21x15mm or 15x10mm rocker switch
Solderless 2.1mm Female Terminal Block DC Power
4x 50mm m3 screws and nuts
Tip: Because of the heavy vibration, you will need to weight the base down or it will start trashing all around the table.
Find a heavy plate that you can screw onto the base.
Or maybe put a few heavy bags of screws or nuts on the base to weight it down.
Originality of the Model
The author declares that this work is their personally shared model
This model is licensed under the following terms:
Credit must be given to the creator
Models(6)
- 4xfan_holder.stl
48.62 KB
2025-07-16
- base_15x10mmRocker.stl
253.79 KB
2025-07-16
- bottle_holder_.stl
64.34 KB
2025-07-16
- base_21x15mmRocker.stl
252.91 KB
2025-07-16
- bottle_holder_35mm.stl
218.15 KB
2025-07-16
- top_plate.stl
194.81 KB
2025-07-16
